工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2467070000PRO TOP3 120W 24V 5A CO Weidmüller |
4 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 480V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 89% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2627650000PRO TOPDC 24V/24V 5A Weidmüller |
3 |
|
规格书 |
- | Box | Active | DC | 1 | - | 14V | 31.2V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 1.41 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, Remote On/Off | CSA | 60950-1 |
|
|
2467090000PRO TOP3 240W 24V 10A CO Weidmüller |
2 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 3.5 kV | ITE (Commercial) | 93% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467300000PRO TOPDC 24V/24V 10A EX Weidmüller |
3 |
|
规格书 |
- | Box | Active | DC | 1 | - | 14V | 31.2V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 1.41 kV | ITE (Commercial) | 91% | -40°C ~ 70°C | Adjustable Output, IP20, Remote On/Off | CSA, TUV, UKCA | 60950-1 |
|
|
2467100000PRO TOP3 480W 24V 20A Weidmüller |
4 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 20A | 576W | 3.5 kV | ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2467150000PRO TOP3 480W 48V 10A Weidmüller |
2 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 10A | 560W | 3.5 kV | ITE (Commercial) | 94% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, EAC, TUV | 60950-1 |
|
|
2467120000PRO TOP3 960W 24V 40A Weidmüller |
2 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 22.5 ~ 28.8V | - | - | - | - | - | 40A | 1152W | 3.5 kV | ITE (Commercial) | 95.3% | -25°C ~ 70°C | Adjustable Output, PFC | cULus, EAC | 60950-1 |
|
|
2467180000PRO TOP3 960W 48V 20A CO Weidmüller |
3 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 320 ~ 575 VAC (3 Phase), 360 ~ 575 VAC (3 Phase) | 450V | 800V | 45 ~ 56V | - | - | - | - | - | 20A | 1120W | 3.5 kV | ITE (Commercial) | 95.3% | -40°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|

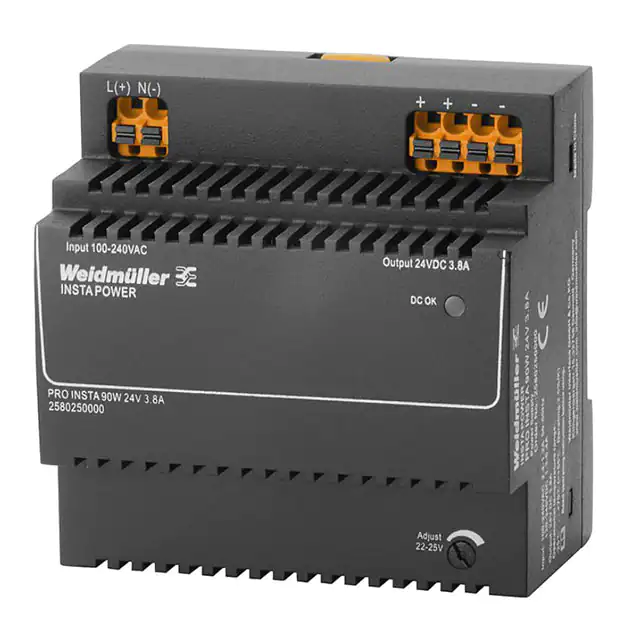

2580250000AC/DC DIN RAIL SUPPLY 24V 91W Weidmüller |
5 |
|
规格书 |
Connect Power INSTA (90W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 24V | - | - | - | - | - | 3.8A | 91W | 4 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|

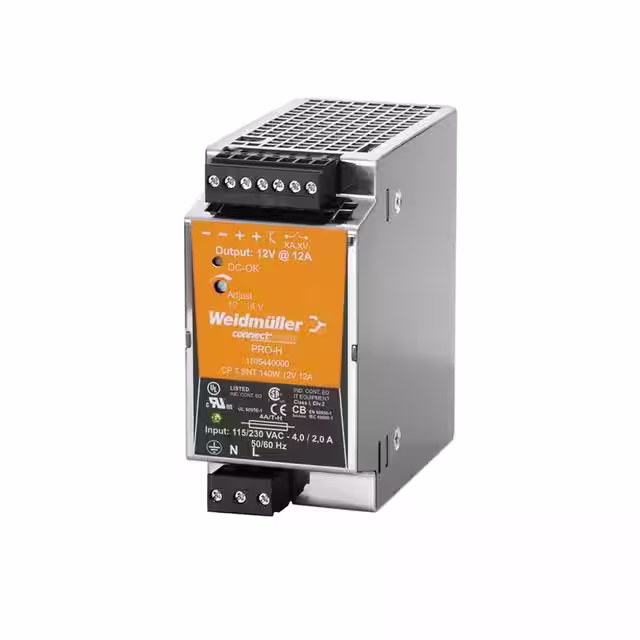

1105440000AC/DC DIN RAIL SUPPLY 12V 140W Weidmüller |
2 |
|
- |
Connect Power Pro-H (140W) | Bulk | Obsolete | AC | 1 | 85 ~ 264 VAC | - | - | 12V | - | - | - | - | - | 12A | 140W | 4 kV | ITE (Commercial) | 85% | -25°C ~ 70°C | Adjustable Output, Load Sharing, Remote On/Off, Universal Input | CE, CSA, cULus, cURus, GOST | - |
