工业用 DIN 导轨电源
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 包装 | 产品状态 | 输入类型 | 输出数量 | 交流电压 - 输入 | 直流电压 - 输入（最小值） | 直流电压 - 输入（最大值） | 电压 - 输出 1 | 电压 - 输出 2 | 电压 - 输出 3 | 电压 - 输出 4 | 电压 - 输出 5 | 电压 - 输出 6 | 电流 - 输出（最大值） | 功率（瓦特） | 电压 - 隔离 | 应用 | 效率 | 工作温度 | 特性 | 认证机构 | 标准编号 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

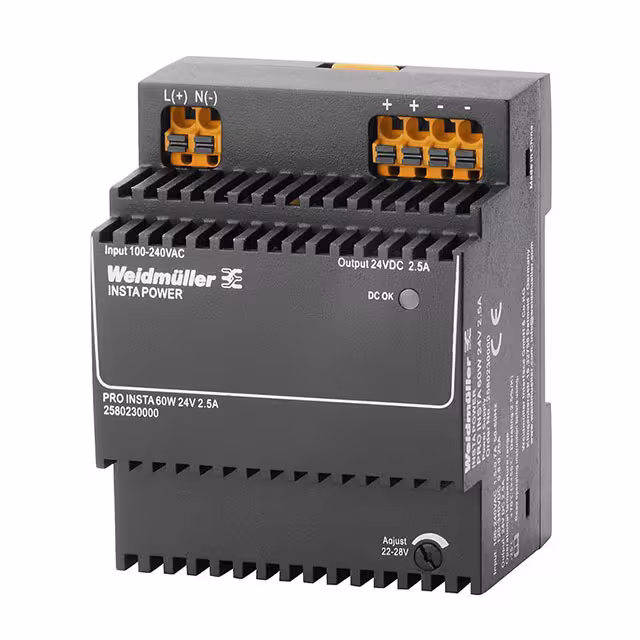

2580230000AC/DC DIN RAIL SUPPLY 24V 60W Weidmüller |
2 |
|
规格书 |
Connect Power INSTA (60W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 24V | - | - | - | - | - | 2.5A | 60W | 4 kV | ITE (Commercial) | 89% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|
2838450000AC/DC DIN RAIL SUPPLY 12V 120W Weidmüller |
11 |
|
规格书 |
PRO BAS (120W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 110V | 370V | 12V | - | - | - | - | - | 10A | 120W | 3.5 kV | Laboratory | 90% | -25°C ~ 70°C | PFC, Universal Input | - | 61010-1 |
|

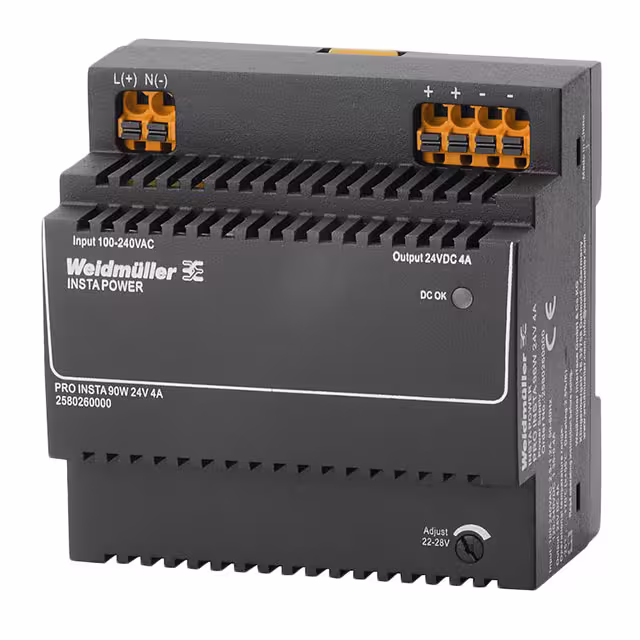

2580260000AC/DC DIN RAIL SUPPLY 24V 96W Weidmüller |
3 |
|
规格书 |
Connect Power INSTA (96W) | Box | Active | AC or DC | 1 | 85 ~ 264 VAC | 95V | 370V | 24V | - | - | - | - | - | 4A | 96W | 4 kV | ITE (Commercial) | 87% | -25°C ~ 70°C (With Derating) | Adjustable Output, IP20, Universal Input | cCSAus, TUV | - |
|
1469590000AC/DC DIN RAIL SUPPLY 48V 240W Weidmüller |
7 |
|
规格书 |
PRO ECO (240W) | Bulk | Active | AC or DC | 1 | 85 ~ 264 VAC | 80V | 370V | 48V | - | - | - | - | - | 5A | 240W | 3 kV | ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, IP20, Universal Input | CE, cULus, EAC | - |
|

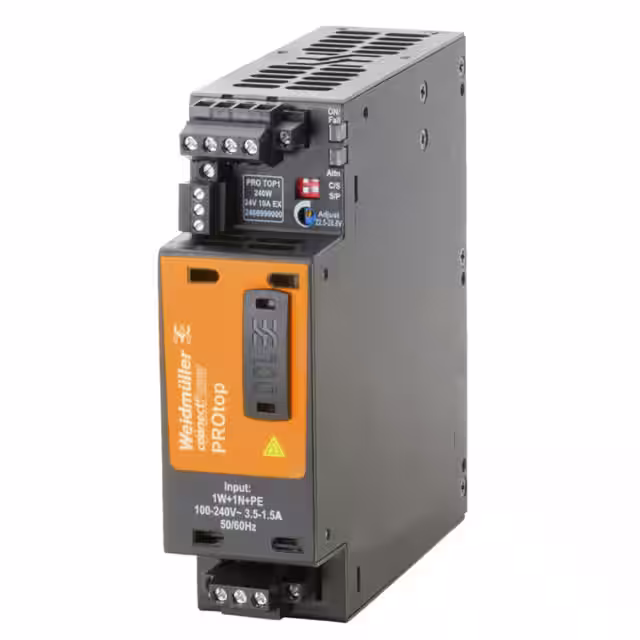

2466990000AC/DC DIN RAIL SUPPLY 24V 240W Weidmüller |
22 |
|
规格书 |
PRO TOP1 (240W) | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 24V | - | - | - | - | - | 10A | 240W | 4 kV | ITE (Commercial) | 92% | -40°C ~ 70°C (With Derating) | Adjustable Output, IP20, Load Sharing | - | - |
|
|
2486080000DIODE MODULE 40V 20A Weidmüller |
2 |
|
规格书 |
- | Bulk | Active | DC | 1 | - | - | 60V | 24V | - | - | - | - | - | 30A | - | - | ITE (Commercial) | 97% | -40°C ~ 70°C (With Derating) | IP20 | - | - |
|
|
2486070000PRO DM 10 Weidmüller |
3 |
|
规格书 |
- | Box | Active | DC | 1 | - | - | 60V | 23.3V | - | - | - | - | - | 20A | 466W | - | ITE (Commercial) | 97% | -40°C ~ 70°C | Adjustable Output | cULus, TUV | - |
|
|
2568970000PRO TOP1 72W 24V 3A F Weidmüller |
5 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 3A | 86W | 3.5 kV | ITE (Commercial) | 89% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2568980000PRO TOP1 120W 24V 5A F Weidmüller |
3 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 48V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 5A | 144W | 3.5 kV | ITE (Commercial) | 91% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
|
|
2568990000PRO TOP1 240W 24V 10A F Weidmüller |
4 |
|
规格书 |
- | Box | Active | AC or DC | 1 | 85 ~ 277 VAC | 80V | 410V | 22.5 ~ 28.8V | - | - | - | - | - | 10A | 288W | 3.5 kV | ITE (Commercial) | 92% | -25°C ~ 70°C | Adjustable Output, IP20, PFC | cULus, TUV | 60950-1 |
