固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

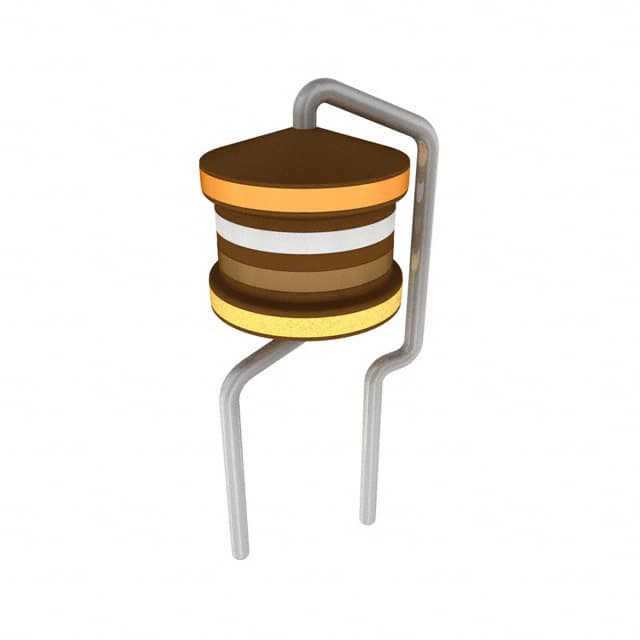

B82144B2394J000FIXED IND 390UH 650MA 1.72OHM TH EPCOS - TDK Electronics |
3,766 |
|
规格书 |
LBC | Radial, Vertical Cylinder | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 390 µH | ±5% | 650 mA | 480mA | Unshielded | 1.72Ohm Max | 40 @ 79.6kHz | 2.5MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia (6.50mm) | 0.551" (14.00mm) |
.JPG)
|
B82442H1273K000FIXED IND 27UH 620MA 420MOHM SMD EPCOS - TDK Electronics |
1,394 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 620 mA | - | Unshielded | 420mOhm Max | 10 @ 2.52MHz | 11.5MHz | AEC-Q200 | -55°C ~ 150°C | 2.52 MHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
|
B82442H1225J000FIXED IND 2.2MH 75MA 28 OHM SMD EPCOS - TDK Electronics |
1,468 |
|
规格书 |
SIMID | 2-SMD, J-Lead | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 75 mA | - | Unshielded | 28Ohm Max | 30 @ 252kHz | 1.2MHz | AEC-Q200 | -55°C ~ 150°C | 252 kHz | - | Surface Mount | 2220 (5650 Metric) | 0.220" L x 0.197" W (5.60mm x 5.00mm) | 0.209" (5.30mm) |
|
B82498B3101J000SMT-INDUCTOR 0805 100 NH 5% EPCOS - TDK Electronics |
3,830 |
|
规格书 |
B82498B | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ceramic | 100 nH | ±5% | 350 mA | - | Unshielded | 260mOhm Max | 40 @ 150MHz | 1.31GHz | - | - | 150 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B3390J000SMT-INDUCTOR 0805 39 NH 5% EPCOS - TDK Electronics |
3,000 |
|
规格书 |
B82498B | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ceramic | 39 nH | ±5% | 560 mA | - | Unshielded | 100mOhm Max | 50 @ 250MHz | 2.05GHz | - | - | 250 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B1821J000SMT-INDUCTOR 0805 820 NH 5% EPCOS - TDK Electronics |
2,940 |
|
规格书 |
B82498B1 | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Wirewound | Ferrite | 820 nH | ±5% | 240 mA | - | Unshielded | 550mOhm Max | 20 @ 25.2MHz | 400MHz | - | - | 25.2 MHz | - | Surface Mount | 0805 | 0.087" L x 0.055" W (2.20mm x 1.40mm) | 0.057" (1.45mm) |
|
|
B82498B1681J000SMT-INDUCTOR 0805 680 NH 5% EPCOS - TDK Electronics |
2,366 |
|
规格书 |
- | - | Tape & Reel (TR) | Last Time Buy | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

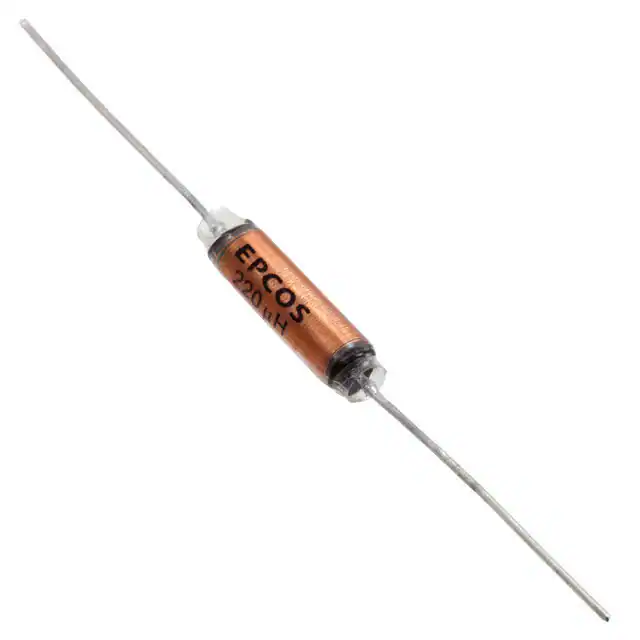

B82111E0000C026FIXED IND 220UH 500MA 2.6 OHM TH EPCOS - TDK Electronics |
2,021 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 500 mA | - | Unshielded | 2.6Ohm | - | 32MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 1.024" L (6.50mm x 26.00mm) | - |
|
B82131A5302M000FIXED IND 2UH 3A 38 MOHM TH EPCOS - TDK Electronics |
7,968 |
|
规格书 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 2 µH | ±20% | 3 A | - | Unshielded | 38mOhm | - | 147MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|

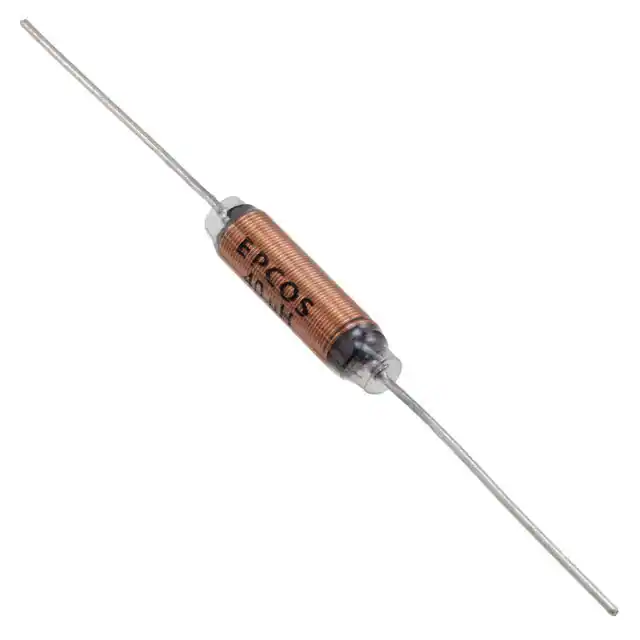

B82111E0000C023FIXED IND 40UH 2A 180 MOHM TH EPCOS - TDK Electronics |
3,296 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 40 µH | ±20% | 2 A | - | Unshielded | 180mOhm | - | 90MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.276" Dia x 1.024" L (7.00mm x 26.00mm) | - |
