固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78148S1225J000FIXED IND 2.2MH 80MA 34.7 OHM TH EPCOS - TDK Electronics |
6,451 |
|
规格书 |
BC | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 80 mA | - | Unshielded | 34.7Ohm Max | 40 @ 252kHz | 1.1MHz | - | -55°C ~ 125°C | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
B78108E1682K009FIXED IND 6.8UH 2.45A 105MOHM TH EPCOS - TDK Electronics |
5,415 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.45 A | 2.3A | Unshielded | 105mOhm Max | 40 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

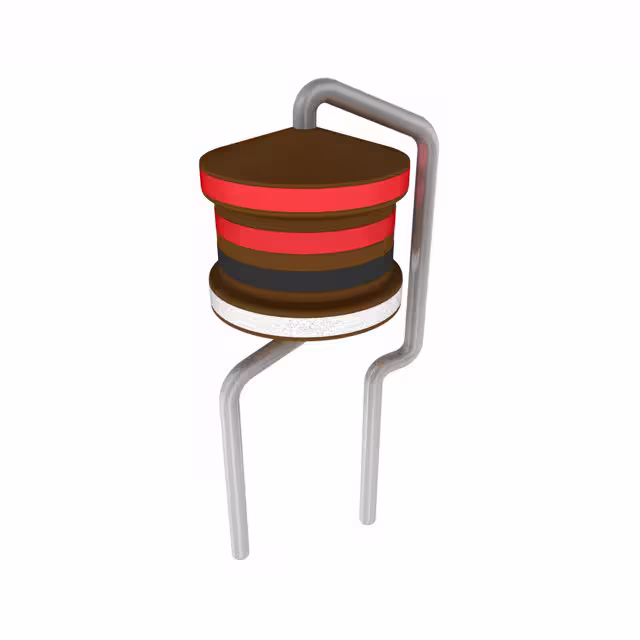

B78148E1223K000FIXED IND 22UH 1.3A 350 MOHM TH EPCOS - TDK Electronics |
5,305 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.3 A | 1.25A | Unshielded | 350mOhm Max | 40 @ 796kHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|

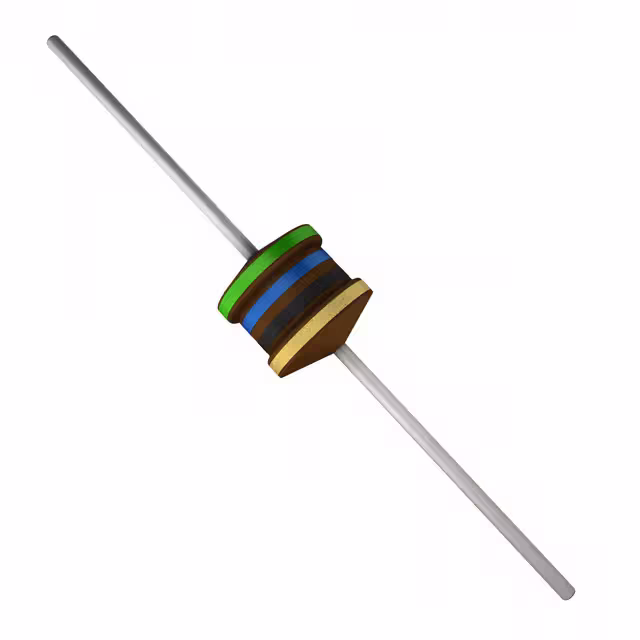

B82144F2563J000FIXED IND 56UH 1.6A 0.31OHM TH EPCOS - TDK Electronics |
4,206 |
|
规格书 |
LBC | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±5% | 1.6 A | 1.3A | Unshielded | 310mOhm Max | 40 @ 79.6kHz | 6.8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 0.362" L (6.50mm x 9.20mm) | - |
|

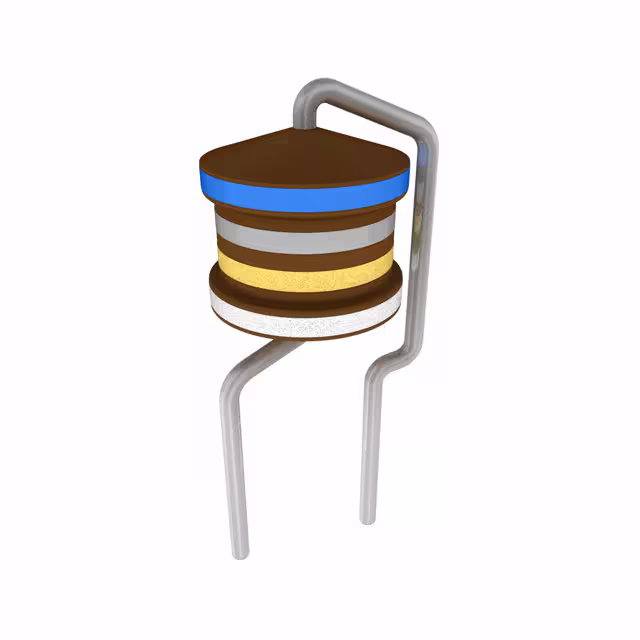

B78148E1682K000FIXED IND 6.8UH 2.45A 105MOHM TH EPCOS - TDK Electronics |
9,816 |
|
规格书 |
BC+ | Radial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.45 A | 2.3A | Unshielded | 105mOhm Max | 40 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia (4.00mm) | 0.453" (11.50mm) |
|
B78108E1333J009FIXED IND 33UH 1.05A 550 MOHM TH EPCOS - TDK Electronics |
6,358 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 1.05 A | 1A | Unshielded | 550mOhm Max | 50 @ 796kHz | 9MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

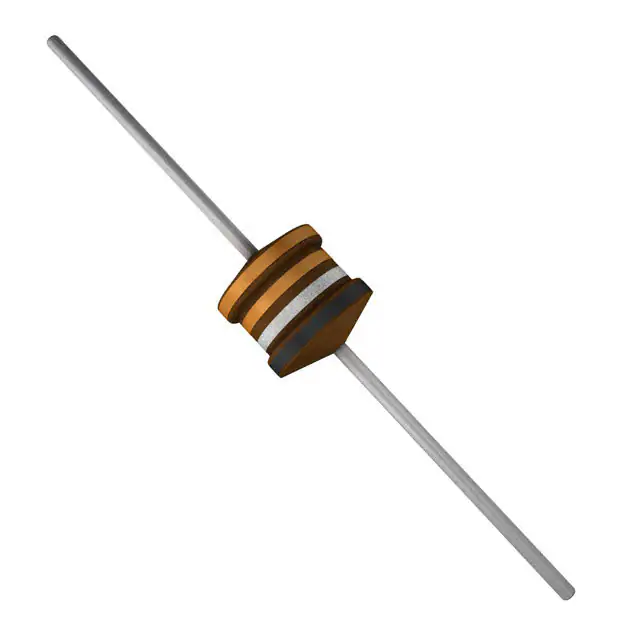

B78108E1331M000FIXED IND 330NH 5.3A 23 MOHM TH EPCOS - TDK Electronics |
4,963 |
|
规格书 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 nH | ±20% | 5.3 A | 10.1A | Unshielded | 23mOhm Max | 60 @ 7.96MHz | 480MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1682K000FIXED IND 6.8UH 2.45A 105MOHM TH EPCOS - TDK Electronics |
4,876 |
|
规格书 |
BC+ | Axial | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±10% | 2.45 A | 2.3A | Unshielded | 105mOhm Max | 40 @ 7.96MHz | 25MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|

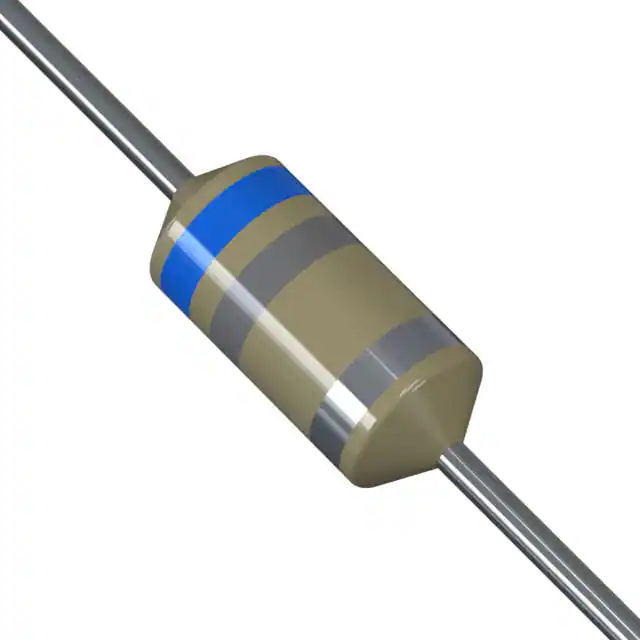

B78108E1681M009FIXED IND 680NH 4.6A 31 MOHM TH EPCOS - TDK Electronics |
4,652 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 4.6 A | 7.1A | Unshielded | 31mOhm Max | 60 @ 7.96MHz | 360MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
|
B78108E1473J009FIXED IND 47UH 950MA 680 MOHM TH EPCOS - TDK Electronics |
4,553 |
|
规格书 |
B78108E | Axial | Cut Tape (CT) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±5% | 950 mA | 870mA | Unshielded | 680mOhm Max | 40 @ 796kHz | 8MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.157" Dia x 0.374" L (4.00mm x 9.50mm) | - |
