固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

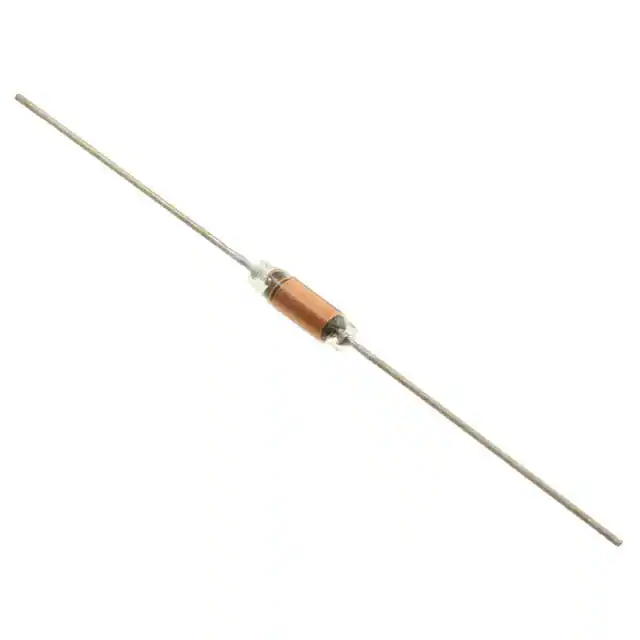

B82131A5402M000FIXED IND 1UH 4A 14 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 1 µH | ±20% | 4 A | - | Unshielded | 14mOhm | - | 199MHz | - | -55°C ~ 125°C | 1 MHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|
|
B82131A5701M000FIXED IND 14UH 700MA 760 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 14 µH | ±20% | 700 mA | - | Unshielded | 760mOhm | - | 53MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|

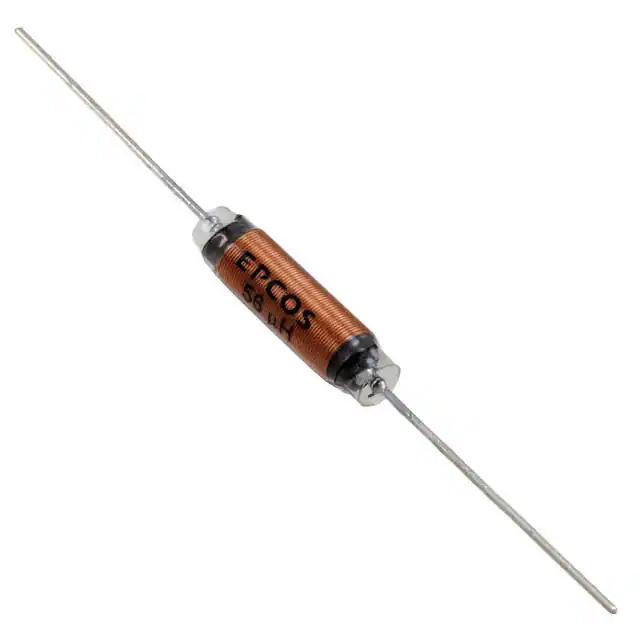

B82111E0000C024FIXED IND 56UH 1.5A 300 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
B82111E | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 1.5 A | - | Unshielded | 300mOhm | - | 70MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.256" Dia x 1.024" L (6.50mm x 26.00mm) | - |
|
|
B82131A5301M000FIXED IND 40UH 300MA 4.1 OHM TH EPCOS - TDK Electronics |
1 |
|
规格书 |
B82131 | Axial | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Iron | 40 µH | ±20% | 300 mA | - | Unshielded | 4.1Ohm | - | 31MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.197" Dia x 0.591" L (5.00mm x 15.00mm) | - |
|

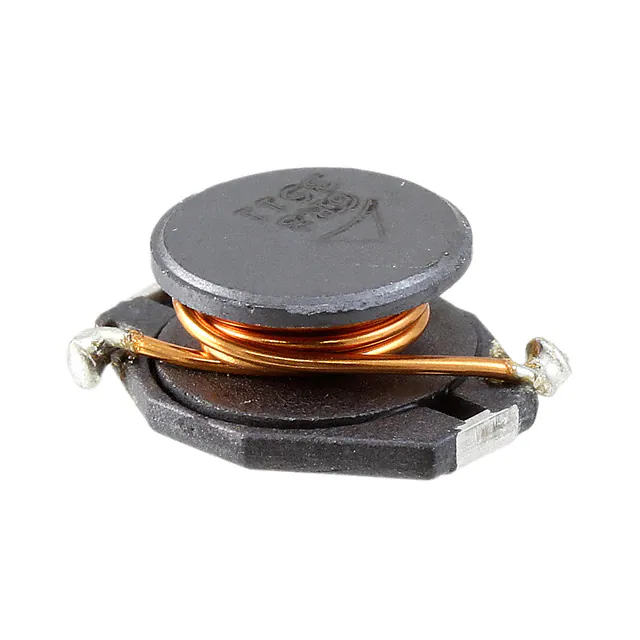

B82476B1152M100FIXED IND 1.5UH 6.9A 9 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82476B1 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 6.9 A | 8A | Unshielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.510" L x 0.370" W (12.95mm x 9.40mm) | 0.200" (5.08mm) |
|

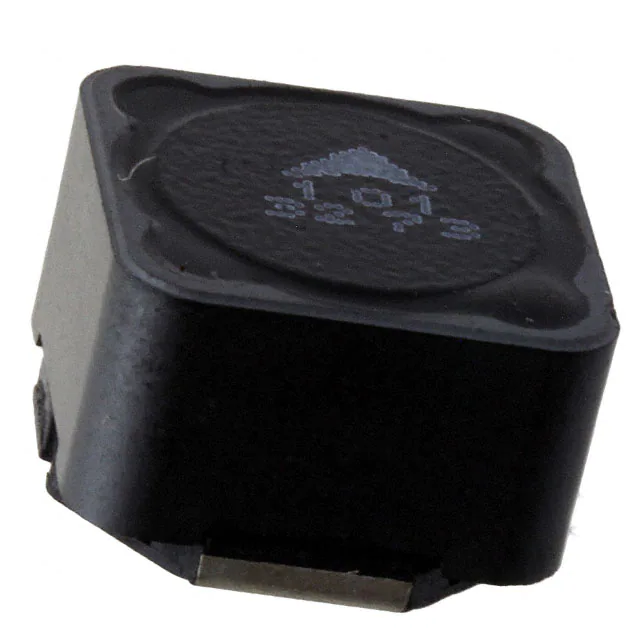

B82477R4152M100FIXED IND 1.5UH 9.75A 6.5MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 9.75 A | 20A | Shielded | 6.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4362M100FIXED IND 3.6UH 8.5A 10 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.6 µH | ±20% | 8.5 A | 13A | Shielded | 10mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
B82477R4562M100FIXED IND 5.6UH 7.6A 11.5MOHM SM EPCOS - TDK Electronics |
0 |
|
规格书 |
B82477R4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 7.6 A | 11A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82464Z4103MFIXED IND 10UH 3.4A 30 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 3.4 A | 3.5A | Shielded | 30mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

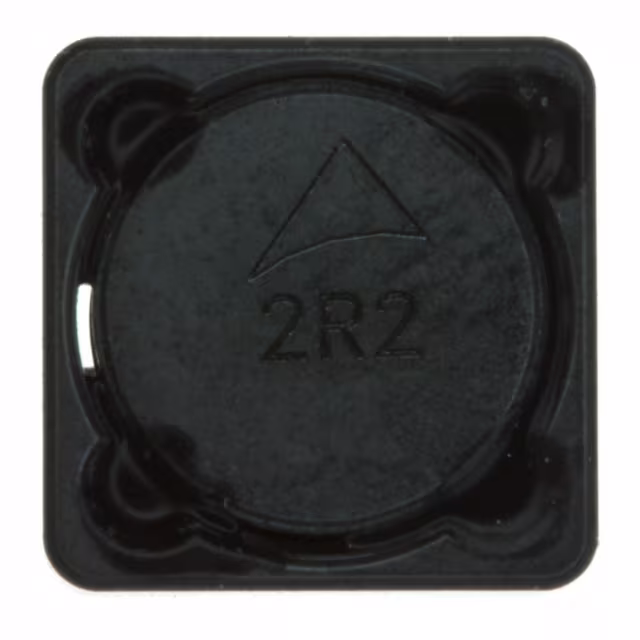

B82464Z4222MFIXED IND 2.2UH 6.5A 10 MOHM SMD EPCOS - TDK Electronics |
0 |
|
规格书 |
B82464Z4 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.5 A | 7A | Shielded | 10mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
