固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82422H1152K100SMT-INDUCTOR DE 1,5 UH 10% EPCOS - TDK Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82422H1683K100SMT-INDUCTOR DE 68,0 UH 10% EPCOS - TDK Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82422H1393K100SMT-INDUCTOR DE 39 UH 10% EPCOS - TDK Electronics |
0 |
|
- |
* | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
B82144A2153K009HF CHOKE 15 UH 10% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 15 µH | ±10% | 1.25 A | - | Unshielded | 280mOhm Max | 60 @ 2.52MHz | 20MHz | - | -55°C ~ 125°C | 2.52 MHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2682K009HF CHOKE 6,8 UH 10% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 1.5 A | - | Unshielded | 190mOhm Max | 40 @ 7.96MHz | 80MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2154J009HF CHOKE 150 UH 5% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 150 µH | ±5% | 500 mA | - | Unshielded | 900mOhm Max | 50 @ 796kHz | 3MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2332K009HF CHOKE 3,3 UH 10% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 1.75 A | - | Unshielded | 130mOhm Max | 40 @ 7.96MHz | 120MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2474J009HF CHOKE 470 UH 5% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 470 µH | ±5% | 280 mA | - | Unshielded | 2.5Ohm Max | 40 @ 796kHz | 1.5MHz | - | -55°C ~ 125°C | 796 kHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|
|
B82144A2222K009HF CHOKE 2,2 UH 10% EPCOS - TDK Electronics |
0 |
|
规格书 |
B82144A2 | Axial | Tape & Box (TB) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 1.9 A | - | Unshielded | 110mOhm Max | 40 @ 7.96MHz | 140MHz | - | -55°C ~ 125°C | 7.96 MHz | - | Through Hole | Axial | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
|

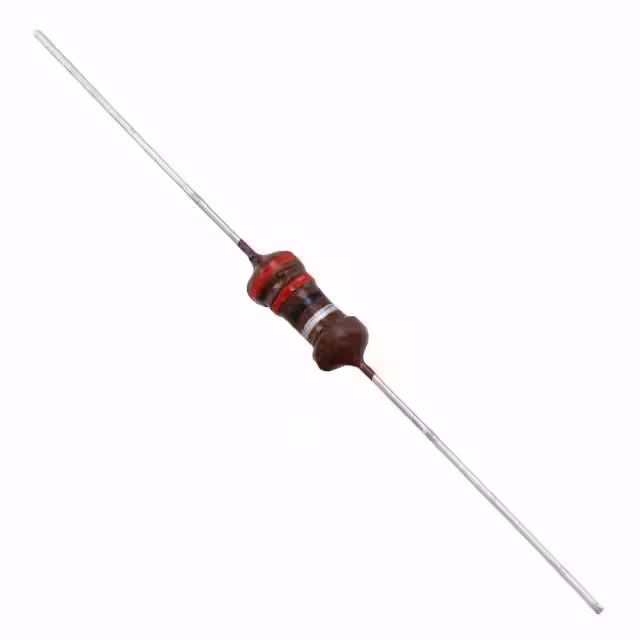

B82144A2223K009FIXED IND 22UH 1.1A 350 MOHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
LBC | Axial | Tape & Box (TB) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 1.1 A | - | Unshielded | 350mOhm Max | 50 @ 2.52MHz | 12MHz | - | -55°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.205" Dia x 0.472" L (5.20mm x 12.00mm) | - |
