固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B78108S1395J009FIXED IND 3.9MH 59MA 66 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 3.9 mH | ±5% | 59 mA | - | Unshielded | 66Ohm Max | 40 @ 252kHz | 800kHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1394J009FIXED IND 390UH 180MA 7 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 390 µH | ±5% | 180 mA | - | Unshielded | 7Ohm Max | 70 @ 796kHz | 2.4MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1125J009FIXED IND 1.2MH 115MA 17.5 OHM EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 1.2 mH | ±5% | 115 mA | - | Unshielded | 17.5Ohm Max | 50 @ 252kHz | 1.3MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1124J009FIXED IND 120UH 300MA 2.4 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 120 µH | ±5% | 300 mA | - | Unshielded | 2.4Ohm Max | 70 @ 796kHz | 4.5MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1185J009FIXED IND 1.8MH 95MA 26 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 1.8 mH | ±5% | 95 mA | - | Unshielded | 26Ohm Max | 50 @ 252kHz | 1.2MHz | - | - | 252 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|

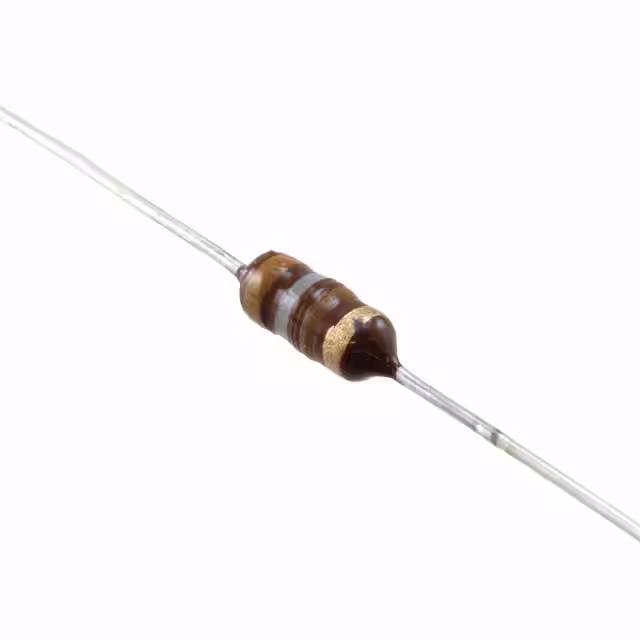

B78108S1184J009FIXED IND 180UH 270MA 3 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 180 µH | ±5% | 270 mA | - | Unshielded | 3Ohm Max | 70 @ 796kHz | 3.9MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1563J009FIXED IND 56UH 430MA 1.23 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 56 µH | ±5% | 430 mA | - | Unshielded | 1.23Ohm Max | 40 @ 2.52MHz | 7MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1564J009FIXED IND 560UH 160MA 8.8 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 560 µH | ±5% | 160 mA | - | Unshielded | 8.8Ohm Max | 60 @ 796kHz | 2MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1823J009FIXED IND 82UH 390MA 1.54 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 82 µH | ±5% | 390 mA | - | Unshielded | 1.54Ohm Max | 35 @ 2.52MHz | 6MHz | - | - | 2.52 MHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
|
|
B78108S1824J009FIXED IND 820UH 140MA 12 OHM TH EPCOS - TDK Electronics |
0 |
|
规格书 |
BC | Axial | Tape & Box (TB) | Active | Wirewound | - | 820 µH | ±5% | 140 mA | - | Unshielded | 12Ohm Max | 50 @ 796kHz | 1.6MHz | - | - | 796 kHz | - | Through Hole | - | 0.157" Dia x 0.362" L (4.00mm x 9.20mm) | - |
