固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ECS-MPI4040R2-2R2-RFIXED IND 2.2UH 3.2A 58 MOHM SMD ECS Inc. |
6,195 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.2 A | 5.7A | Shielded | 58mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
ECS-MPI4040R2-100-RFIXED IND 10UH 1.5A 240 MOHM SMD ECS Inc. |
4,410 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.5 A | 3.1A | Shielded | 240mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.059" (1.50mm) |
|
|
ECS-MPI4040R3-4R7-RFIXED IND 4.7UH 2.3A 92 MOHM SMD ECS Inc. |
15,653 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 4.7 µH | ±20% | 2.3 A | 4.8A | Shielded | 92mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|

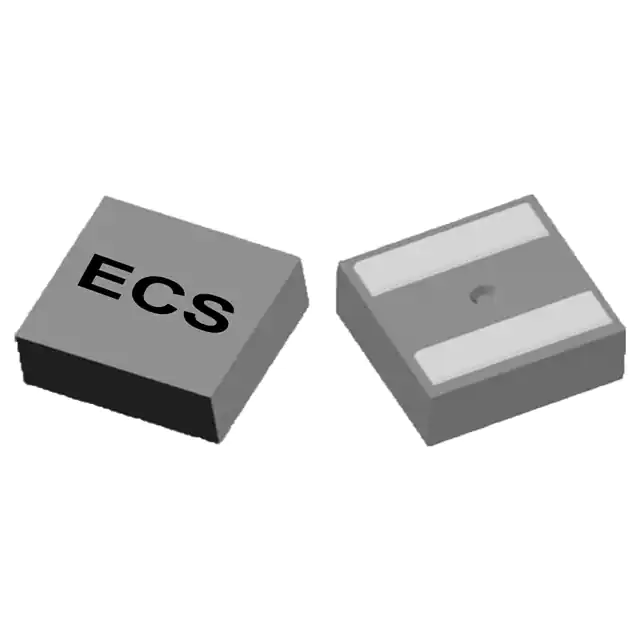

ECS-HCMPI-0503Q-2R2M-TFIXED IND 2.2UH 9.7A 14.5MOHM SM ECS Inc. |
632 |
|
规格书 |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 9.7 A | 9A | Shielded | 14.5mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-MPI4040R3-220-RFIXED IND 22UH 1.1A 408 MOHM SMD ECS Inc. |
3,594 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.1 A | 2.2A | Shielded | 408mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
ECS-MPI4040R4-R47-RFIXED IND 450NH 8.1A 8.2MOHM SMD ECS Inc. |
7,193 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 450 nH | ±20% | 8.1 A | 11.5A | Shielded | 8.2mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-100-RFIXED IND 10UH 1.9A 148 MOHM SMD ECS Inc. |
2,912 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 1.9 A | 2.6A | Shielded | 148mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-HCMPI-0503Q-1R0M-TFIXED IND 1UH 12.2A 7.6 MOHM SMD ECS Inc. |
2,592 |
|
规格书 |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1 µH | ±20% | 12.2 A | 14.3A | Shielded | 7.6mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
|
ECS-HCMPI-0503Q-R16M-TFIXED IND 160NH 22.2A 2.33 MOHM ECS Inc. |
3,781 |
|
规格书 |
ECS-HCMPI-0503Q | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 160 nH | ±20% | 22.2 A | 32A | Shielded | 2.33mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.217" L x 0.209" W (5.50mm x 5.30mm) | 0.122" (3.10mm) |
|
ECS-MPIL0630-1R5MCFIXED IND 1.5UH 14A 12.1MOHM SMD ECS Inc. |
1,890 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 1.5 µH | ±20% | 14 A | - | Shielded | 12.1mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
