上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

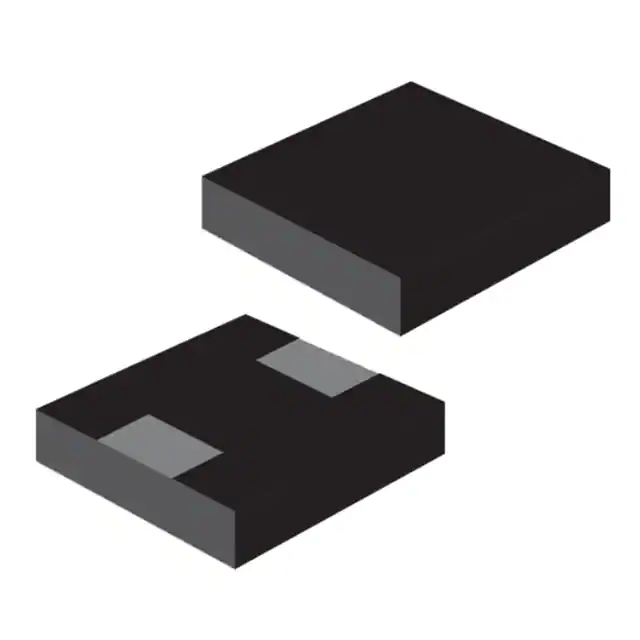

ECS-MPIL0630-100MCFIXED IND 10UH 5.5A 68 MOHM SMD ECS Inc. |
15,531 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 5.5 A | - | Shielded | 68mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R4-2R2-RFIXED IND 2.2UH 3.9A 35 MOHM SMD ECS Inc. |
12,995 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 2.2 µH | ±20% | 3.9 A | 5.7A | Shielded | 35mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-6R8-RFIXED IND 6.8UH 2.4A 91 MOHM SMD ECS Inc. |
39,082 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 6.8 µH | ±20% | 2.4 A | 3.2A | Shielded | 91mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-220-RFIXED IND 22UH 1.3A 316 MOHM SMD ECS Inc. |
26,690 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 1.3 A | 1.8A | Shielded | 316mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPI4040R4-1R0-RFIXED IND 1UH 5.7A 17 MOHM SMD ECS Inc. |
14,892 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 µH | ±20% | 5.7 A | 8.2A | Shielded | 17mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
|
ECS-MPIL0630-220MCFIXED IND 22UH 3A 135 MOHM SMD ECS Inc. |
13,286 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 3 A | - | Shielded | 135mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
ECS-MPIL0630-2R2MCFIXED IND 2.2UH 10A 15 MOHM SMD ECS Inc. |
12,229 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 10 A | - | Shielded | 15mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|

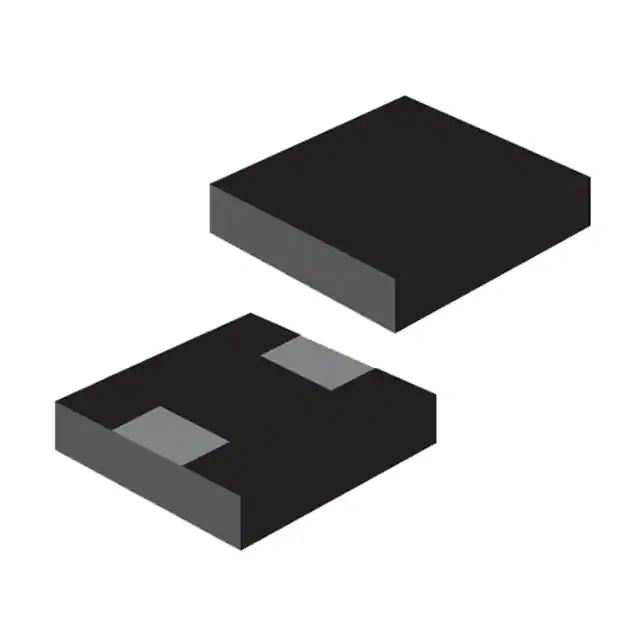

ECS-MPIL0530-2R2MCFIXED IND 2.2UH 9A 35 MOHM SMD ECS Inc. |
6,963 |
|
规格书 |
ECS-MPIL0530 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 9 A | - | Shielded | 35mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.216" L x 0.204" W (5.49mm x 5.18mm) | 0.118" (3.00mm) |
|
|
ECS-MPIL0630-5R6MCFIXED IND 5.6UH 6A 42 MOHM SMD ECS Inc. |
2,905 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 5.6 µH | ±20% | 6 A | - | Shielded | 42mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
|
|
ECS-MPIL0630-6R8MCFIXED IND 6.8UH 6A 50 MOHM SMD ECS Inc. |
1,680 |
|
规格书 |
ECS-MPIL0630 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 6.8 µH | ±20% | 6 A | - | Shielded | 50mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.291" L x 0.260" W (7.40mm x 6.60mm) | 0.118" (3.00mm) |
