固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP0906R1-R18-RFIXED IND 180NH 51A 0.29MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 51 A | 45A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
FP1010V11-R070-RIND FP1010V11-R070-R FLAT-PAC Eaton - Electronics Division |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 70 nH | ±10% | 61 A | 130A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" (10.00mm) |
|
|
FP1010V11-R090-RIND FP1010V11-R090-R FLAT-PAC Eaton - Electronics Division |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 61 A | 105A | Unshielded | 200mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.177" W (10.00mm x 4.50mm) | 0.394" (10.00mm) |
|
UP2B-681-RFIXED IND 680UH 452MA 1.97OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 452 mA | 355mA | Unshielded | 1.97Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|

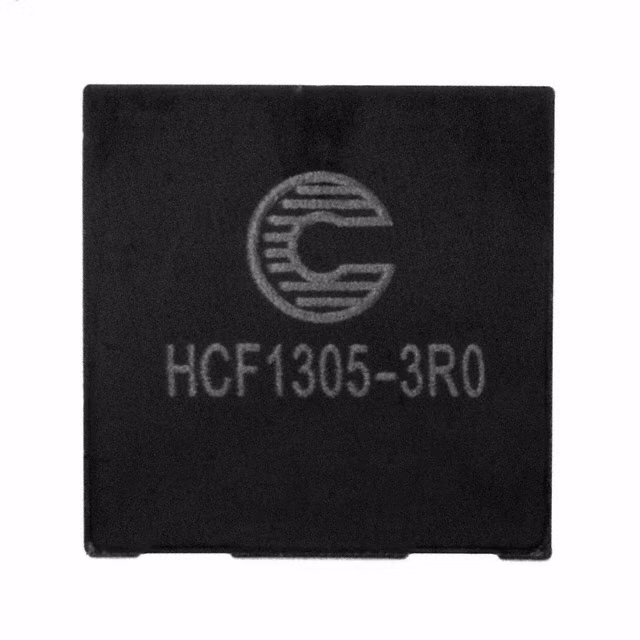

HCF1305-3R0-RFIXED IND 3UH 13.2A 4.9 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 13.2 A | 14.4A | Unshielded | 4.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

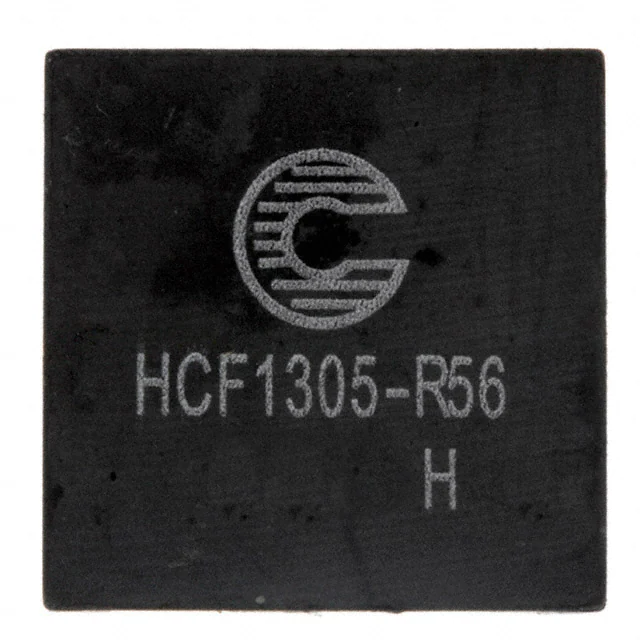

HCF1305-R56-RFIXED IND 560NH 32A 1 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 32 A | 30A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|

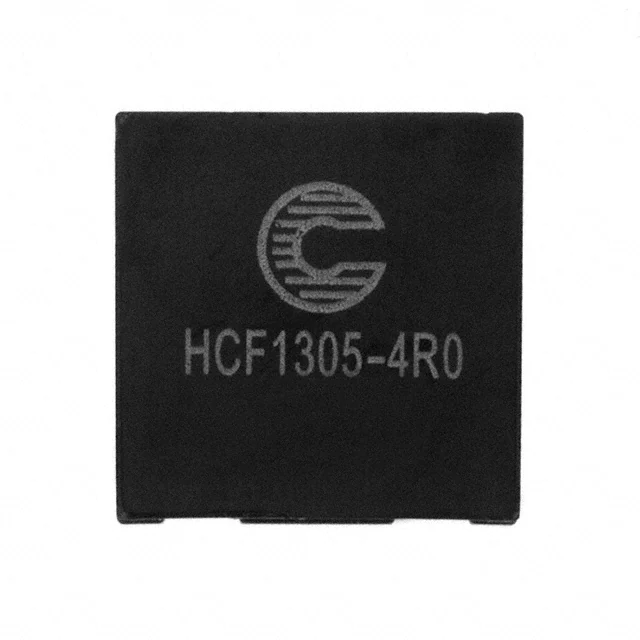

HCF1305-4R0-RFIXED IND 4UH 10.9A 7.2 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCF1305 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4 µH | ±20% | 10.9 A | 12A | Unshielded | 7.2mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.197" (5.00mm) |
|
FP1208R1-R18-RFIXED IND 180NH 50A 0.29MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FLAT-PAC, FP1208 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 180 nH | ±10% | 50 A | 72A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.476" L x 0.315" W (12.10mm x 8.00mm) | 0.315" (8.00mm) |
|
|
FP1010V14-R090-RIND FP1010V14-R090-R FLAT-PAC Eaton - Electronics Division |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 90 nH | ±10% | 68 A | 107A | Unshielded | 158mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
|
|
FP1010V14-R100-RIND FP1010V14-R100-R FLAT-PAC Eaton - Electronics Division |
0 |
|
- |
FP1010 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 68 A | 124A | Unshielded | 158mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.378" L x 0.252" W (9.60mm x 6.40mm) | 0.394" (10.00mm) |
