固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1307V2-R22-RFIXED IND 220NH 52A 0.6 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 220 nH | ±20% | 52 A | 100A | Shielded | 0.6mOhm Max | - | 135MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
HCM1A1307V2-3R3-RFIXED IND 3.3UH 16.5A 4.1MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 16.5 A | 18A | Shielded | 4.1mOhm Max | - | 18MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
HCM1A1307V2-R33-RFIXED IND 330NH 47A 0.69MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 330 nH | ±20% | 47 A | 70A | Shielded | 0.69mOhm Max | - | 80MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
HCM1A1307V2-2R2-RFIXED IND 2.2UH 18.5A 3.1MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 2.2 µH | ±20% | 18.5 A | 23A | Shielded | 3.1mOhm Max | - | 24MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
UP4B-1R5-RFIXED IND 1.5UH 13.4A 3.9MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13.4 A | 28.9A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
UP0.4C-330-RFIXED IND 33UH 640MA 560MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 0.4C | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 640 mA | 630mA | Unshielded | 560mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
CPLE-3-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
CPL | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 1.063" L x 0.335" W (27.00mm x 8.50mm) | 0.189" (4.80mm) |
|
|
UP4B-471-RFIXED IND 470UH 910MA 833MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 910 mA | 1.7A | Unshielded | 833mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.870" L x 0.591" W (22.10mm x 15.00mm) | 0.310" (7.87mm) |
|
FP1005R1-R22-RFIXED IND 220NH 53A 0.39MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FLAT-PAC, FP1005 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 53 A | 33A | Unshielded | 0.39mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.276" W (10.20mm x 7.00mm) | 0.195" (4.95mm) |
|

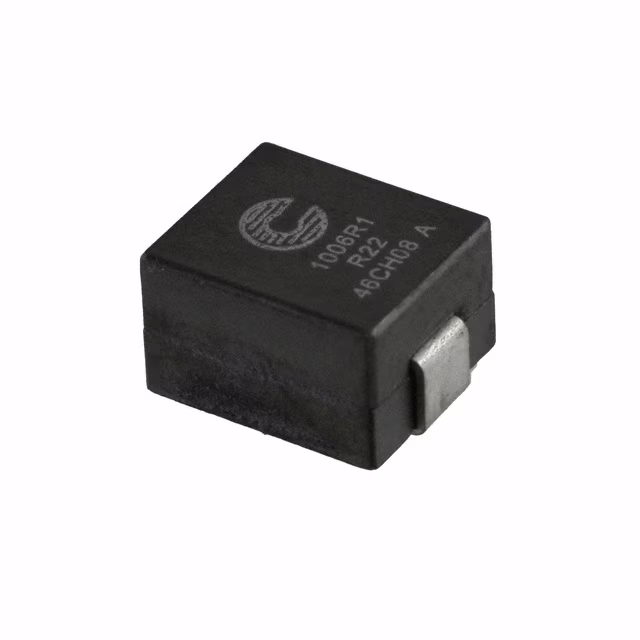

FP1006R1-R22-RFIXED IND 220NH 53A 0.27MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FLAT-PAC, FP1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 53 A | 38A | Unshielded | 0.27mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.315" W (10.20mm x 8.00mm) | 0.236" (6.00mm) |
