固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HC5-1R8-RFIXED IND 1.8UH SMD Eaton - Electronics Division |
0 |
|
规格书 |
HC5 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 1.8 µH | ±20% | - | - | Shielded | - | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
HC5-2R2-RFIXED IND 2.2UH 14A 5.6 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HC5 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 2.2 µH | ±20% | 14 A | 16A | Shielded | 5.6mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
HC5-3R3-RFIXED IND 3.3UH 11A 5.6 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HC5 | Nonstandard | Tape & Reel (TR) | Obsolete | Wirewound | - | 3.3 µH | ±20% | 11 A | 13A | Shielded | 5.6mOhm Max | - | - | - | -25°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.209" (5.30mm) |
|
|
UP2.8B-100-RFIXED IND 10UH 2.1A 80 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
UNI-PAC™ 2.8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.1 A | 2.7A | Unshielded | 80mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.508" L x 0.370" W (12.90mm x 9.40mm) | 0.110" (2.80mm) |
|
HCMA1104-220-RFIXED IND 22UH Eaton - Electronics Division |
0 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | 22 µH | - | - | - | - | - | - | - | - | - | 100 kHz | - | - | - | - | - |
|

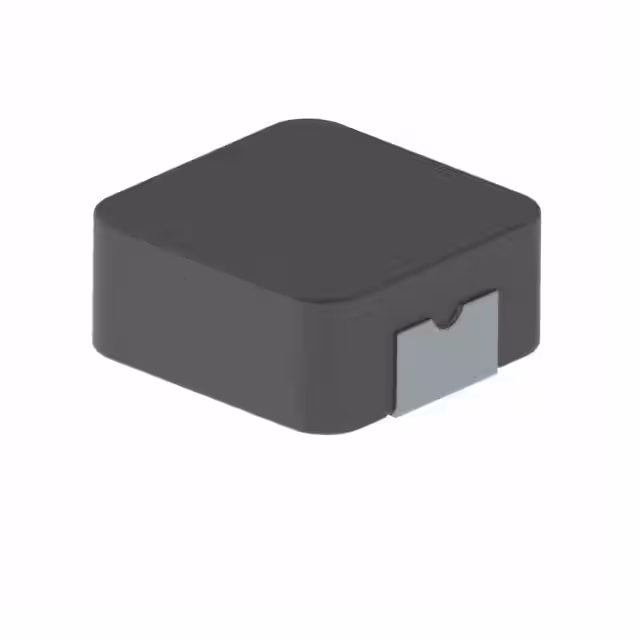

HCM1A0703-150-RFIXED IND 15UH 2.2A 127MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 2.2 A | 4A | Shielded | 127mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.268" W (7.10mm x 6.80mm) | 0.118" (3.00mm) |
|
DRA73-681-RFIXED IND 680UH 270MA 3.89OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 270 mA | 297mA | Shielded | 3.89Ohm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
MPI4040R3-100-RFIXED IND 10UH 1.5A 213 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 1.5 A | 3.8A | Shielded | 213mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
MPI4040R3-1R2-RFIXED IND 1.2UH 4A 32 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 1.2 µH | ±20% | 4 A | 9.4A | Shielded | 32mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
|
|
MPI4040R3-220-RFIXED IND 22UH 1.1A 408 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
MPI4040 | Nonstandard | Tape & Reel (TR) | Obsolete | Drum Core, Wirewound | Metal Composite | 22 µH | ±20% | 1.1 A | 2.2A | Shielded | 408mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.073" (1.85mm) |
