固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SD10-8R2-RFIXED IND 8.2UH 800MA 260.7 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 800 mA | 800mA | Shielded | 260.7mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-R47-RFIXED IND 470NH 2.59A 24.9 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 2.59 A | 3.54A | Shielded | 24.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
SD8328-2R5-RFIXED IND 2.5UH 6.6A 15.6MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 6.6 A | 4.5A | Shielded | 15.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|

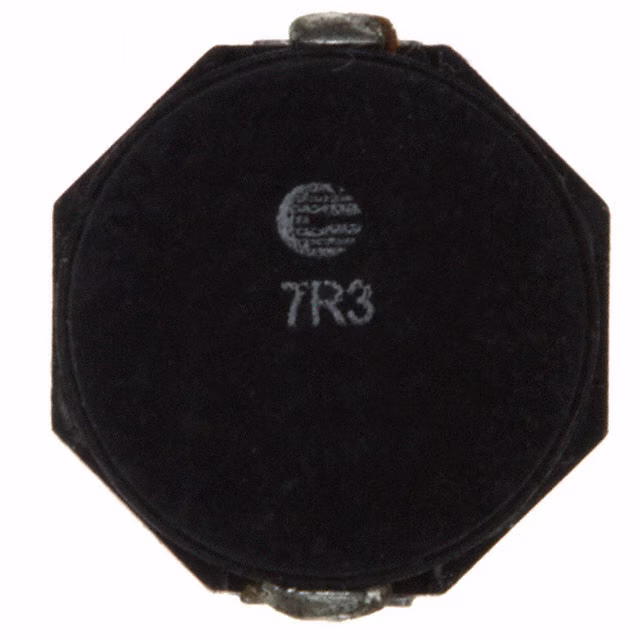

SD8328-7R3-RFIXED IND 7.3UH 3.4A 39 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.3 µH | ±30% | 3.4 A | 2.9A | Shielded | 39mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|

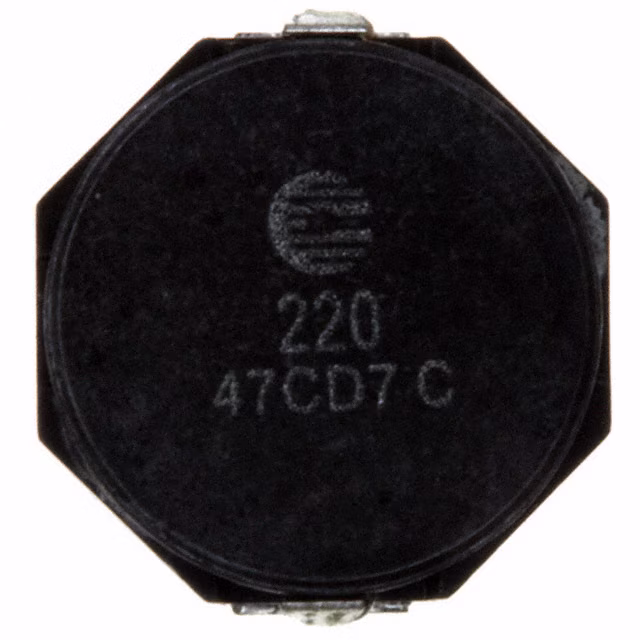

SD8328-220-RFIXED IND 22UH 1.85A 99 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD8328 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 1.85 A | 1.7A | Shielded | 99mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.374" L x 0.327" W (9.50mm x 8.30mm) | 0.118" (3.00mm) |
|
FP1108L4-R120-RFIXED IND 120NH 91A 0.05MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FP1108L4 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 120 nH | ±10% | 91 A | - | - | 0.05mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.315" (8.00mm) |
|

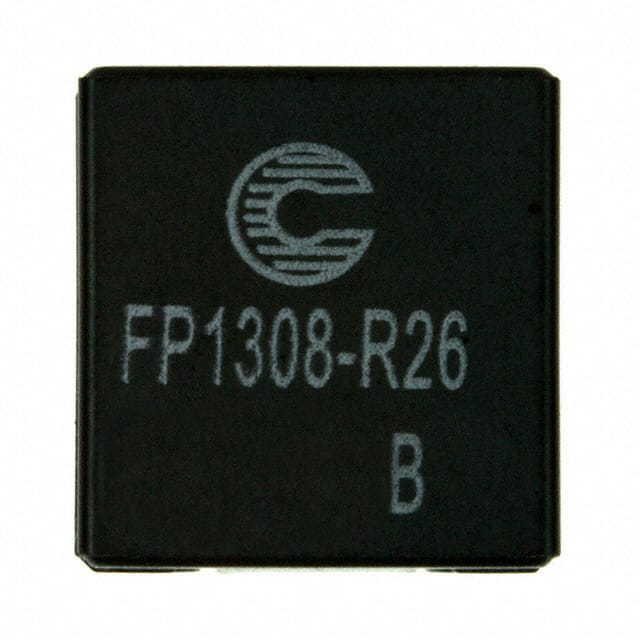

FP1308-R26-RFIXED IND 260NH 68A 0.24MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FLAT-PAC, FP1308 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 260 nH | ±10% | 68 A | 60A | Unshielded | 0.24mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.539" L x 0.510" W (13.70mm x 12.95mm) | 0.315" (8.00mm) |
|
DRA125-1R5-RFIXED IND 1.5UH 12.89A 3.3 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 12.89 A | 18.44A | Shielded | 3.3mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
FP1108L4-R150-RFIXED IND 150NH 91A 0.05MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FP1108L4 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 91 A | - | - | 0.05mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.315" W (11.00mm x 8.00mm) | 0.315" (8.00mm) |
|
|
SD3114-150-RFIXED IND 15UH 480MA 650MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD3114 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 480 mA | 660mA | Shielded | 650mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.122" L x 0.122" W (3.10mm x 3.10mm) | 0.055" (1.40mm) |
