上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A0703V2-6R8-RFIXED IND 6.8UH 3.6A 65 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 3.6 A | 5.6A | Shielded | 65mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
|
HCM1A0703V2-R10-RFIXED IND 100NH 29A 0.8 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 100 nH | ±20% | 29 A | 54A | Shielded | 0.8mOhm Max | - | 350MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.276" L x 0.260" W (7.00mm x 6.60mm) | 0.118" (3.00mm) |
|
FP1108L1-R105-RFIXED IND 105NH 64A 0.1 MOHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
FP1108 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 105 nH | ±10% | 64 A | 72A | Unshielded | 0.1mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.433" L x 0.323" W (11.00mm x 8.20mm) | 0.327" (8.30mm) |
|
SD10-101-RFIXED IND 100UH 225MA 3.29OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 225 mA | 236mA | Shielded | 3.29Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-150-RFIXED IND 15UH 613MA 442.9 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 613 mA | 605mA | Shielded | 442.9mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-151-RFIXED IND 150UH 200MA 4.15OHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 200 mA | 195mA | Shielded | 4.15Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-1R5-RFIXED IND 1.5UH 1.6A 65.3MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 1.6 A | 1.91A | Shielded | 65.3mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|

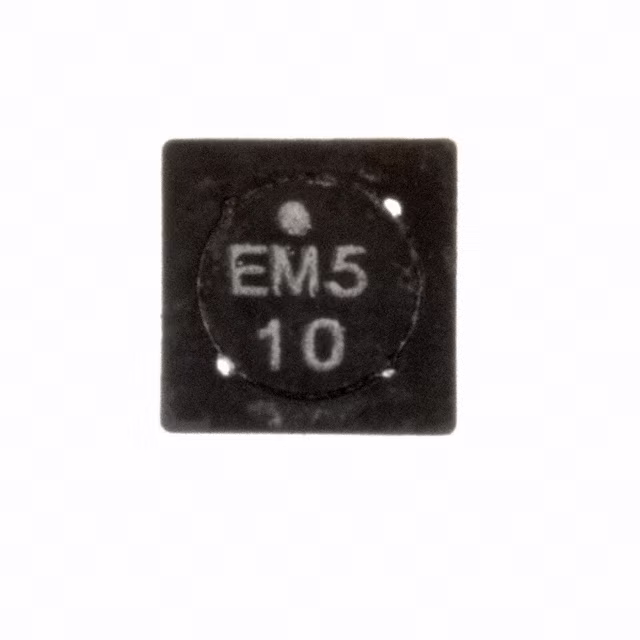

SD10-3R3-RFIXED IND 3.3UH 1.24A 107.8 MOHM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±20% | 1.24 A | 1.31A | Shielded | 107.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|

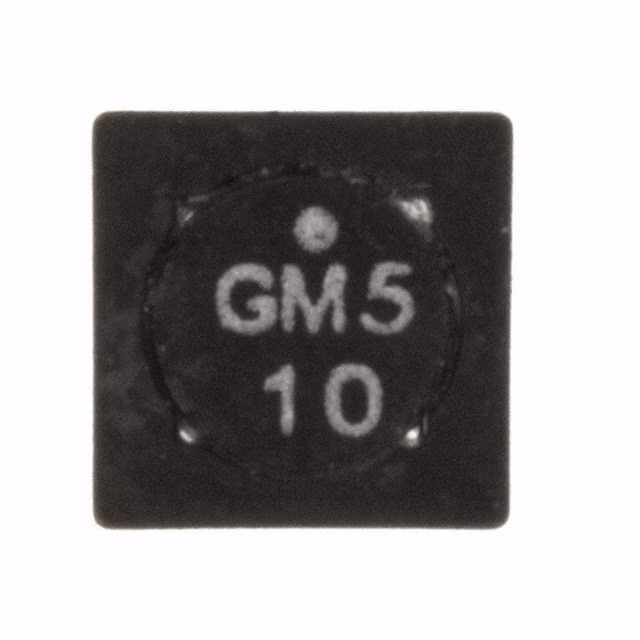

SD10-6R2-RFIXED IND 6.2UH 940MA 218MOHM SM Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.2 µH | ±20% | 940 mA | 920mA | Shielded | 218mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
|
|
SD10-820-RFIXED IND 82UH 258MA 2.5 OHM SMD Eaton - Electronics Division |
0 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 258 mA | 261mA | Shielded | 2.5Ohm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.039" (1.00mm) |
