固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP1008R5-R150-RFIXED IND 150NH 79A 0.17MOHM SMD Eaton - Electronics Division |
1,993 |
|
规格书 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 150 nH | ±10% | 79 A | 64A | Shielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|
FP1008R6-R100-RFIXED IND 100NH 74A 0.18MOHM SMD Eaton - Electronics Division |
530 |
|
规格书 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 74 A | 81A | Shielded | 0.18mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.315" W (10.80mm x 8.00mm) | 0.315" (8.00mm) |
|

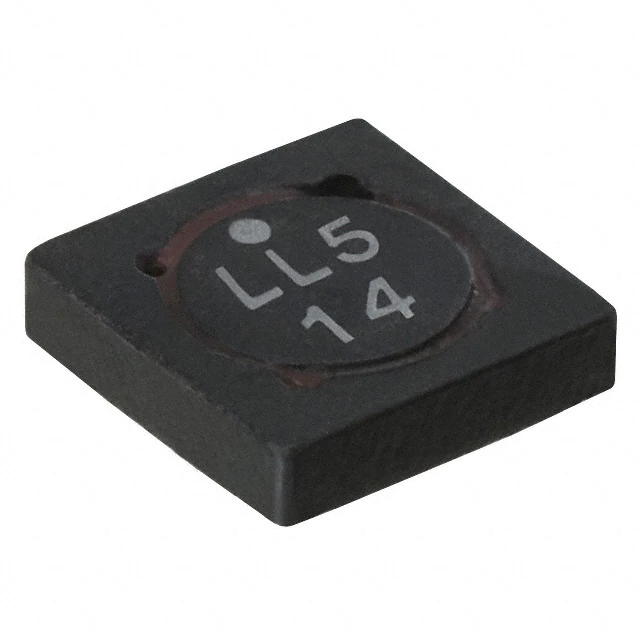

SD14-100-RFIXED IND 10UH 1.1A 205.8MOHM SM Eaton - Electronics Division |
5,771 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.1 A | 1.18A | Shielded | 205.8mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.057" (1.45mm) |
|

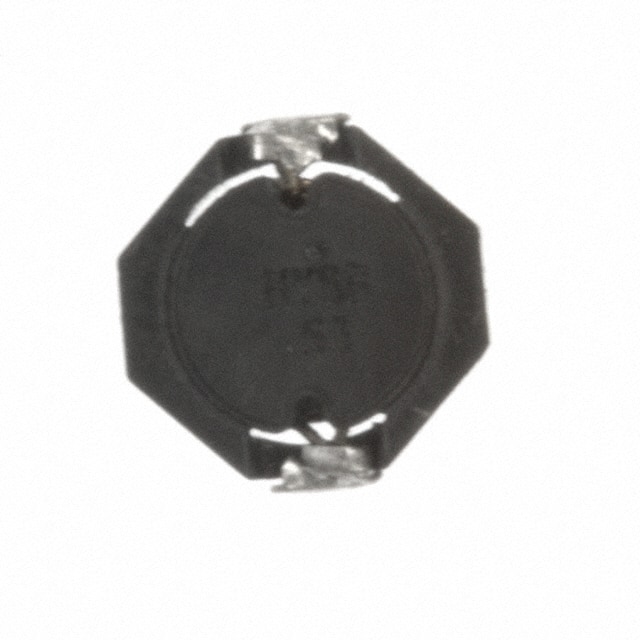

SD53-220-RFIXED IND 22UH 810MA 208MOHM SMD Eaton - Electronics Division |
2,266 |
|
规格书 |
SD53 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 810 mA | 940mA | Shielded | 208mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
FP1008R7-R100-RFIXED IND 100NH 72A 0.12MOHM SMD Eaton - Electronics Division |
1,358 |
|
规格书 |
FP1008 | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 100 nH | ±10% | 72 A | 84A | Shielded | 0.12mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.425" L x 0.323" W (10.80mm x 8.20mm) | 0.323" (8.20mm) |
|
DRA127-220-RFIXED IND 22UH 3.98A 40 MOHM SMD Eaton - Electronics Division |
869 |
|
规格书 |
DRA | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 22 µH | ±20% | 3.98 A | 7.57A | Shielded | 40mOhm | - | - | AEC-Q200 | -40°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
HCF1007-100-RFIXED IND 10UH 9.4A 8.65MOHM SMD Eaton - Electronics Division |
3,951 |
|
规格书 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.4 A | 5.3A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|

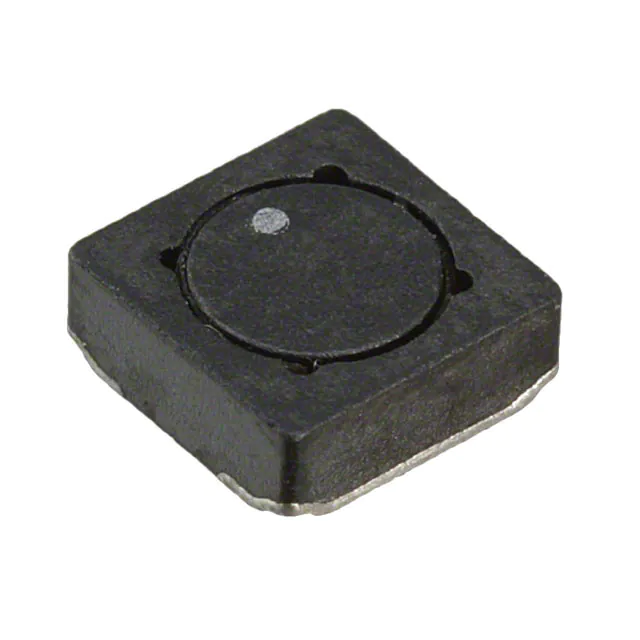

SD20-4R7-RFIXED IND 4.7UH 2.05A 61.2 MOHM Eaton - Electronics Division |
3,615 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 2.05 A | 1.33A | Shielded | 61.2mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.079" (2.00mm) |
|
FP3-R47-RFIXED IND 470NH 10.9A 3.67 MOHM Eaton - Electronics Division |
1,875 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 470 nH | ±15% | 10.9 A | 14.9A | Unshielded | 3.67mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
SD25-1R2-RFIXED IND 1.2UH 3.33A 24MOHM SMD Eaton - Electronics Division |
3,390 |
|
规格书 |
SD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±20% | 3.33 A | 3.81A | Shielded | 24mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
