固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MPIA2510V2-4R7-RFIXED IND 4.7UH 1.22A 262MOHM SM Eaton - Electronics Division |
613 |
|
规格书 |
MPIA25-V2 | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Molded | Iron Powder | 4.7 µH | ±20% | 1.22 A | 1.8A | Shielded | 262mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.041" (1.05mm) |
|
FPV1006-150-RFIXED IND 150NH 25A 0.41MOHM SMD Eaton - Electronics Division |
7,725 |
|
规格书 |
FPV1006 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 nH | ±10% | 25 A | 45A | Shielded | 0.41mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.382" L x 0.331" W (9.70mm x 8.40mm) | 0.252" (6.40mm) |
|
HCM1A1307V2-560-RFIXED IND 56UH 4A 65 MOHM SMD Eaton - Electronics Division |
631 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 56 µH | ±20% | 4 A | 4.3A | Shielded | 65mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
SD6030-101-RFIXED IND 94.4UH 760MA 520 MOHM Eaton - Electronics Division |
2,306 |
|
规格书 |
SD6030 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 94.4 µH | ±30% | 760 mA | 420mA | Shielded | 520mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.118" (3.00mm) |
|
UP2B-100-RFIXED IND 10UH 4.3A 26.7MOHM SMD Eaton - Electronics Division |
20,479 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 4.3 A | 3.3A | Unshielded | 26.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
FP0805R1-R07-RFIXED IND 72NH 65A 0.17 MOHM SMD Eaton - Electronics Division |
1,529 |
|
规格书 |
FLAT-PAC, FP0805 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 72 nH | ±10% | 65 A | 67A | Unshielded | 0.17mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.300" L x 0.295" W (7.62mm x 7.49mm) | 0.195" (4.96mm) |
|
FP0906R1-R22-RFIXED IND 220NH 51A 0.29MOHM SMD Eaton - Electronics Division |
432 |
|
规格书 |
FP0906 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 nH | ±10% | 51 A | 37.5A | Unshielded | 0.29mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.370" L x 0.244" W (9.40mm x 6.20mm) | 0.315" (8.00mm) |
|
|
UP2B-470-RFIXED IND 47UH 1.7A 138.8MOHM SM Eaton - Electronics Division |
1,179 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 1.7 A | 1.4A | Unshielded | 138.8mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|
|
UP2B-680-RFIXED IND 68UH 1.5A 178.7MOHM SM Eaton - Electronics Division |
1,004 |
|
规格书 |
UNI-PAC™ | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.5 A | 1.2A | Unshielded | 178.7mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.550" L x 0.410" W (13.97mm x 10.41mm) | 0.236" (6.00mm) |
|

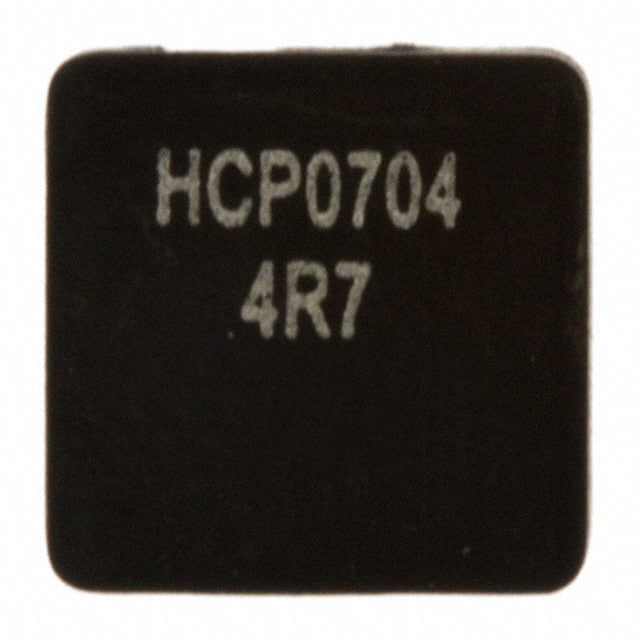

HCP0704-4R7-RFIXED IND 4.7UH 5A 29.5 MOHM SMD Eaton - Electronics Division |
2,183 |
|
规格书 |
HCP0704 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±25% | 5 A | 8A | Shielded | 29.5mOhm | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.268" L x 0.268" W (6.80mm x 6.80mm) | 0.157" (4.00mm) |
