固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

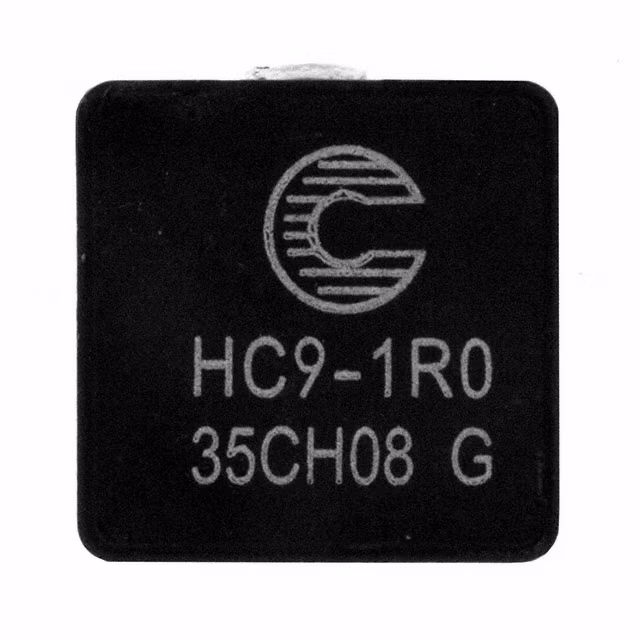

HC9-1R0-RFIXED IND 1UH 23.7A 1.87MOHM SMD Eaton - Electronics Division |
1,198 |
|
规格书 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±15% | 23.7 A | 41A | Unshielded | 1.87mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.528" L x 0.516" W (13.40mm x 13.10mm) | 0.295" (7.50mm) |
|
HCM1A1707-330-RFIXED IND 33UH 6A 37 MOHM SMD Eaton - Electronics Division |
240 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 6 A | 9A | Shielded | 37mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1A1707-680-RFIXED IND 68UH 5.2A 60 MOHM SMD Eaton - Electronics Division |
4 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 68 µH | ±20% | 5.2 A | 6A | Shielded | 60mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1A1707-6R8-RFIXED IND 6.8UH 12A 7.55MOHM SMD Eaton - Electronics Division |
192 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 6.8 µH | ±20% | 12 A | 18A | Shielded | 7.55mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
HCM1A1707-150-RFIXED IND 15UH 9A 15.5 MOHM SMD Eaton - Electronics Division |
150 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 9 A | 14A | Shielded | 15.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
HC8-1R2-RFIXED IND 1.2UH 16A 4.7 MOHM SMD Eaton - Electronics Division |
532 |
|
规格书 |
HC8 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 16 A | 25.5A | Unshielded | 4.7mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.409" W (10.90mm x 10.40mm) | 0.157" (4.00mm) |
|
HC7-1R0-RFIXED IND 1UH 20.3A 2.1 MOHM SMD Eaton - Electronics Division |
831 |
|
规格书 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1 µH | ±20% | 20.3 A | 37.1A | Unshielded | 2.1mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
HC7-2R2-RFIXED IND 2.2UH 13A 5.2 MOHM SMD Eaton - Electronics Division |
1,536 |
|
规格书 |
HC7 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 13 A | 23.6A | Unshielded | 5.2mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.543" L x 0.512" W (13.80mm x 13.00mm) | 0.217" (5.50mm) |
|
|
HCM1A1707-470-RFIXED IND 47UH 5.5A 47 MOHM SMD Eaton - Electronics Division |
167 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 47 µH | ±20% | 5.5 A | 8A | Shielded | 47mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.677" L x 0.663" W (17.20mm x 16.85mm) | 0.276" (7.00mm) |
|
|
CTX250-1-52M-RFIXED IND 250UH 1.9A 221 MOHM TH Eaton - Electronics Division |
253 |
|
规格书 |
CTX | Radial, Vertical, 4 Leads (Open) | Bulk | Active | Toroidal | Iron Powder | 250 µH | ±20% | 1.9 A | 2.2A | Unshielded | 221mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - | 1.220" L x 0.630" W (31.00mm x 16.00mm) | 0.886" (22.50mm) |
