上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCF1007-6R8-RFIXED IND 6.8UH 9.4A 8.65MOHM SM Eaton - Electronics Division |
1,691 |
|
规格书 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 9.4 A | 7.8A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|

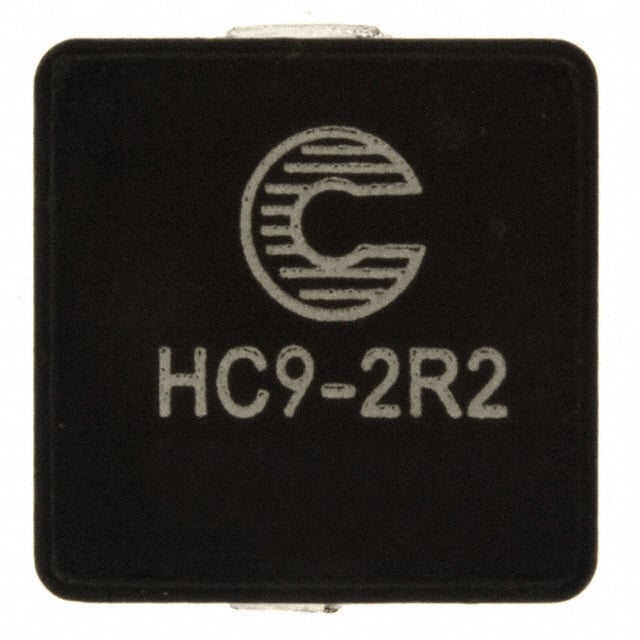

HC9-2R2-RFIXED IND 2.2UH 17.2A 3.37 MOHM Eaton - Electronics Division |
137 |
|
规格书 |
HC9 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±15% | 17.2 A | 26A | Unshielded | 3.37mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.555" L x 0.516" W (14.10mm x 13.10mm) | 0.295" (7.50mm) |
|
HCM1A1707V2-150-RFIXED IND 15UH 11.8A 15.5MOHM SM Eaton - Electronics Division |
129 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 15 µH | ±20% | 11.8 A | 11A | Shielded | 15.5mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
HCF1007-R68-RFIXED IND 680NH 26A 1.3 MOHM SMD Eaton - Electronics Division |
999 |
|
规格书 |
HCF1007 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 26 A | 29A | Unshielded | 1.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.398" L x 0.307" W (10.10mm x 7.80mm) | 0.262" (6.65mm) |
|
|
HCM1A1707V2-680-RFIXED IND 68UH 5A 60 MOHM SMD Eaton - Electronics Division |
130 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 68 µH | ±20% | 5 A | 6.8A | Shielded | 60mOhm Max | - | 2MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
|
HCM1A1707V2-330-RFIXED IND 33UH 6.2A 37 MOHM SMD Eaton - Electronics Division |
193 |
|
规格书 |
HCM1AV2 | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 6.2 A | 9A | Shielded | 37mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.675" L x 0.675" W (17.15mm x 17.15mm) | 0.276" (7.00mm) |
|
FP3-8R2-RFIXED IND 8.2UH 2.91A 74MOHM SMD Eaton - Electronics Division |
5,226 |
|
规格书 |
FLAT-PAC 3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±15% | 2.91 A | 3.4A | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.285" L x 0.264" W (7.25mm x 6.70mm) | 0.118" (3.00mm) |
|
HCM1A1305-8R2-RFIXED IND 8.2UH 7.3A 20.1MOHM SM Eaton - Electronics Division |
1 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 8.2 µH | ±20% | 7.3 A | 13A | Shielded | 20.1mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-330-RFIXED IND 33UH 4A 85.5 MOHM SMD Eaton - Electronics Division |
393 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 33 µH | ±20% | 4 A | 7A | Shielded | 85.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
|
|
HCM1A1305-3R3-RFIXED IND 3.3UH 12A 7.7MOHM SMD Eaton - Electronics Division |
206 |
|
规格书 |
HCM1A | Nonstandard | Tape & Reel (TR) | Active | - | Iron Powder | 3.3 µH | ±20% | 12 A | 16A | Shielded | 7.7mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.524" L x 0.480" W (13.30mm x 12.20mm) | 0.197" (5.00mm) |
