固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCMV136E-R47MN2FIXED INDUCTOR 0.47UH Delta Electronics/Cyntec |
1,182 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

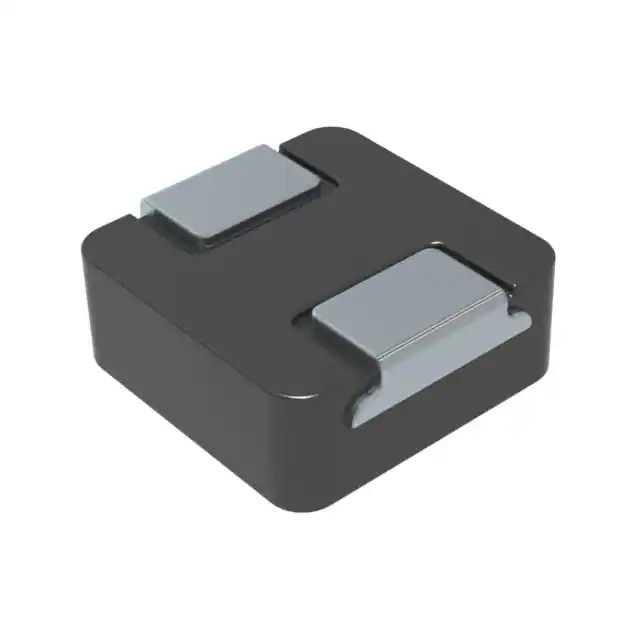

VCMT136E-220MN5FIXED IND 22UH 7A 40 MOHM SMD Delta Electronics/Cyntec |
899 |
|
规格书 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 7 A | 6.3A | Unshielded | 40mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
VCMT136E-150MN5FIXED IND 15UH 8.5A 28.2MOHM SMD Delta Electronics/Cyntec |
644 |
|
规格书 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 15 µH | ±20% | 8.5 A | 7.2A | Unshielded | 28.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
VCMT136E-100MN5FIXED IND 10UH 11A 17.2MOHM SMD Delta Electronics/Cyntec |
505 |
|
规格书 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 11 A | 9.2A | Unshielded | 17.2mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
|
VCMI136E-1R0MN5WFIXED INDUCTOR 1UH Delta Electronics/Cyntec |
995 |
|
规格书 |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
VCMT136E-330MN5FIXED IND 33UH 5.5A 69 MOHM SMD Delta Electronics/Cyntec |
329 |
|
规格书 |
VCMT136E | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 33 µH | ±20% | 5.5 A | 4.3A | Unshielded | 69mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.530" L x 0.496" W (13.45mm x 12.60mm) | 0.256" (6.50mm) |
|
HMLE20161T-R47MDRFIXED IND 470NH 3.8A 39MOHM SMD Delta Electronics/Cyntec |
4,929 |
|
规格书 |
HMLE20161T | 0806 (2016 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3.8 A | 3.85A | Shielded | 39mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 0806 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
SDEM25201T-R47MSFIXED IND 470NH 3.6A 0.035OHM SM Delta Electronics/Cyntec |
5,971 |
|
规格书 |
SDEM25201T | 1008 (2520 Metric) | Tape & Reel (TR) | Active | - | Metal | 470 nH | ±20% | 3.6 A | 5A | Shielded | 35mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
SDEB12101T-R22MSDFIXED IND 220NH 1.9A 60MOHM SMD Delta Electronics/Cyntec |
2,609 |
|
规格书 |
SDEB12101T | Nonstandard | Tape & Reel (TR) | Active | - | - | 220 nH | ±20% | 1.9 A | 2.16A | Shielded | 60mOhm Max | - | - | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.049" L x 0.039" W (1.25mm x 1.00mm) | 0.039" (1.00mm) |
|
|
SDER041B-220MSFIXED IND 22UH 950MA 492MOHM SMD Delta Electronics/Cyntec |
2,563 |
|
规格书 |
SDER041B | Nonstandard | Tape & Reel (TR) | Active | - | - | 22 µH | ±20% | 950 mA | 630mA | Shielded | 492mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.047" (1.20mm) |
