上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

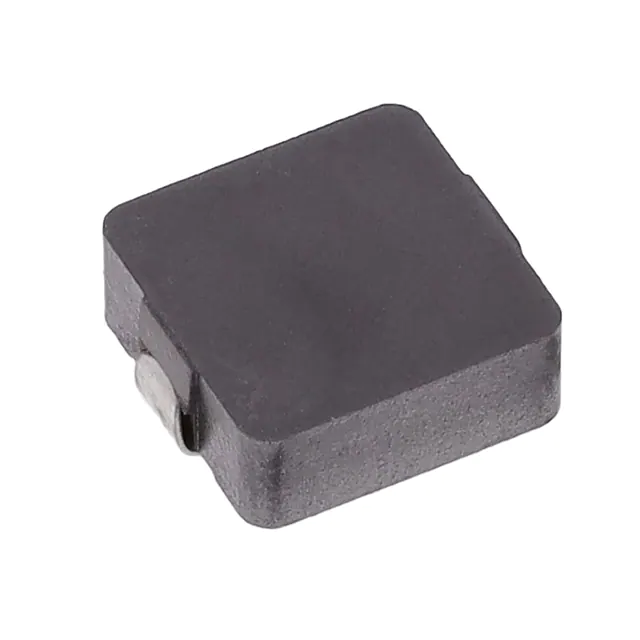

CMLE104T-R22MS0R607FIXED IND 220NH 50A 0.6MOHM SMD Delta Electronics/Cyntec |
408 |
|
规格书 |
CMLE104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 220 nH | ±20% | 50 A | 66A | Shielded | 0.6mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLE105T-4R7MSFIXED IND 4.7UH 10.5A 11.5 MOHM Delta Electronics/Cyntec |
251 |
|
规格书 |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 10.5 A | 19A | Shielded | 11.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
CMLB104T-R15MSFIXED IND 150NH 41A 0.55MOHM SMD Delta Electronics/Cyntec |
750 |
|
规格书 |
CMLB104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 41 A | 64A | Shielded | 0.55mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.157" (4.00mm) |
|
CMLE063T-6R8MSFIXED IND 6.8UH 5.5A 28MOHM SMD Delta Electronics/Cyntec |
1,761 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 5.5 A | 6.1A | Shielded | 28mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
|

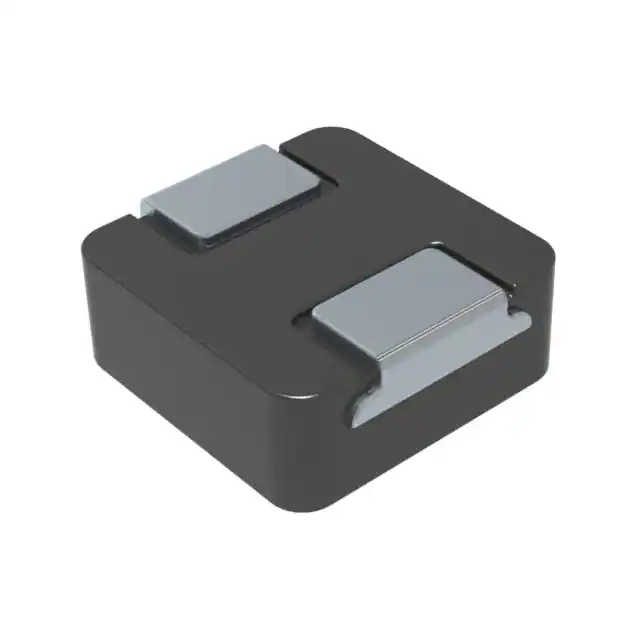

VCMT104T-220MN5FIXED IND 22UH 4.6A 68 MOHM SMD Delta Electronics/Cyntec |
1,162 |
|
规格书 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 22 µH | ±20% | 4.6 A | 4.6A | Unshielded | 68mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
VCMT104T-4R7MN5FIXED IND 4.7UH 11A 15 MOHM SMD Delta Electronics/Cyntec |
846 |
|
规格书 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 4.7 µH | ±20% | 11 A | 11A | Unshielded | 15mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|
VCMT104T-100MN5FIXED IND 10UH 6A 33 MOHM SMD Delta Electronics/Cyntec |
319 |
|
规格书 |
VCMT104T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 6 A | 6A | Unshielded | 33mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.157" (4.00mm) |
|
|

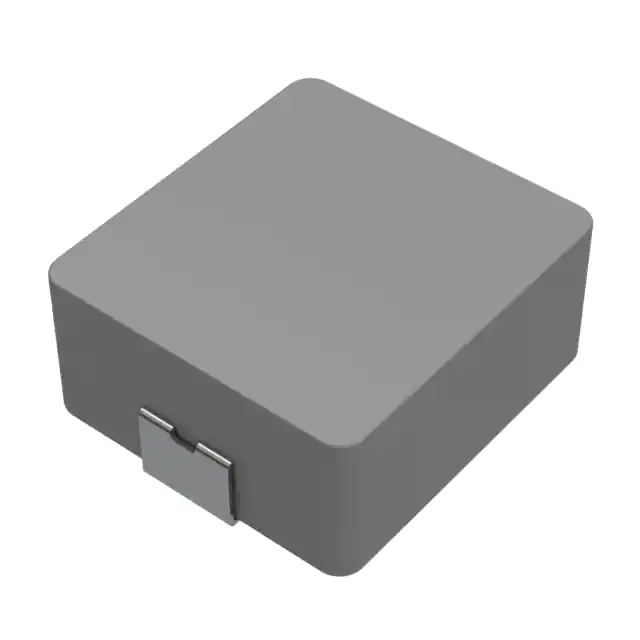

CMLE105T-6R8MSFIXED IND 6.8UH 9A 16.3 MOHM SMD Delta Electronics/Cyntec |
1,756 |
|
规格书 |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 6.8 µH | ±20% | 9 A | 12A | Shielded | 16.3mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.427" L x 0.394" W (10.85mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CMLE105T-1R0MSFIXED IND 1UH 25.5A 2.5 MOHM SMD Delta Electronics/Cyntec |
1,700 |
|
规格书 |
CMLE105T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 1 µH | ±20% | 25.5 A | 36A | Shielded | 2.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.439" L x 0.394" W (11.15mm x 10.00mm) | 0.197" (5.00mm) |
|
|
CMLE063T-R68MSFIXED IND 680NH 16.5A 5.2MOHM SM Delta Electronics/Cyntec |
3,523 |
|
规格书 |
CMLE063T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 680 nH | ±20% | 16.5 A | 17A | Shielded | 5.2mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.118" (3.00mm) |
