固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XAL1510-153MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
7,213 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 15 µH | ±20% | 18 A | 23A | Shielded | 12.4mOhm Max | - | 8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-682MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
4,994 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 6.8 µH | ±20% | 26 A | 36A | Shielded | 4.6mOhm Max | - | 11.5MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-223MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,868 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 22 µH | ±20% | 14 A | 18.7A | Shielded | 16mOhm Max | - | 6.3MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-472MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
3,458 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 29 A | 39A | Shielded | 3.8mOhm Max | - | 12.7MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|
XAL1510-333MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
2,509 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 33 µH | ±20% | 12 A | 16.7A | Shielded | 20mOhm Max | - | 5.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.433" (11.00mm) |
|
|
XAL1510-822MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
939 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 8.2 µH | ±20% | 24 A | 30A | Shielded | 7.5mOhm Max | - | 10.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
|

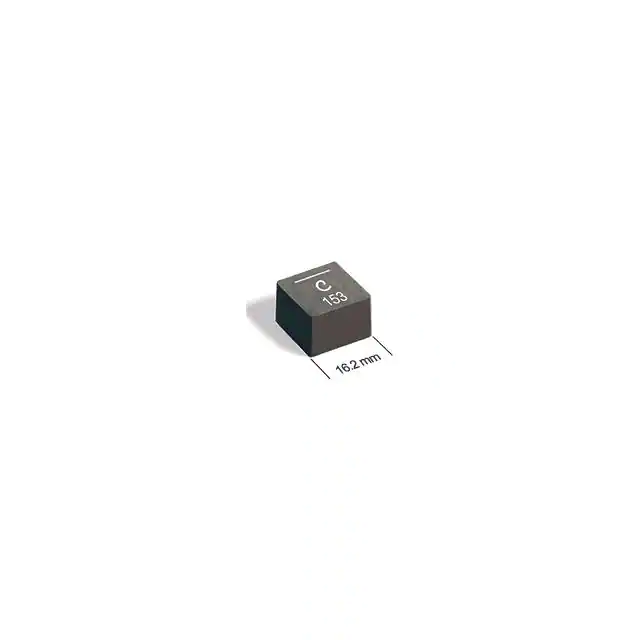

XAL1510-103MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
905 |
|
规格书 |
XAL1510 | Nonstandard | Strip | Active | Molded | Metal Composite | 10 µH | ±20% | 22 A | 26.3A | Shielded | 9mOhm Max | - | 10.1MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.394" (10.00mm) |
|
XGL1313-153MEDFIXED IND 15UH 21.3A 9.2MOHM SM Coilcraft |
824 |
|
规格书 |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 15 µH | ±20% | 21.3 A | 17.5A | Shielded | 9.2mOhm Max | - | 8.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-152MEDFIXED IND 1.5UH 48.7A 1.2MOHM SM Coilcraft |
824 |
|
规格书 |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 1.5 µH | ±20% | 48.7 A | 53A | Shielded | 1.2mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
|
|
XGL1313-222MEDFIXED IND 2.2UH 45.1A 1.6MOHM SM Coilcraft |
654 |
|
规格书 |
XGL1313 | 2-SMD | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±20% | 45.1 A | 46A | Shielded | 1.6mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.591" L x 0.528" W (15.00mm x 13.40mm) | 0.512" (13.00mm) |
