上传BOM
固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

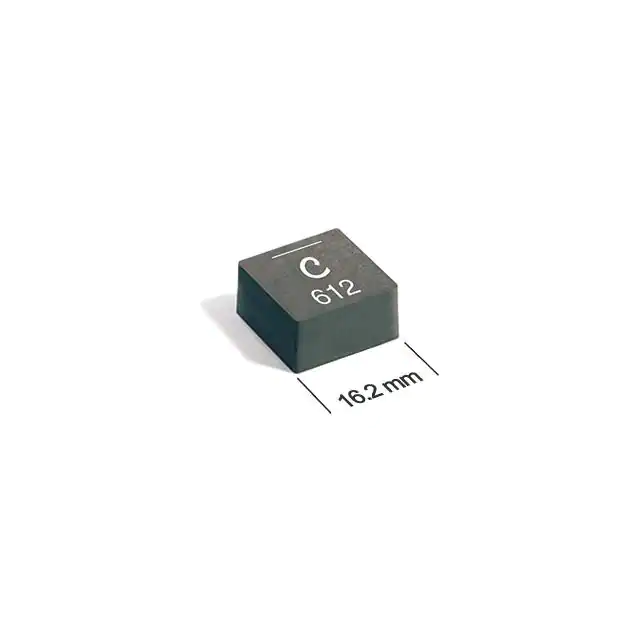

XAL1580-532MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,748 |
|
规格书 |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 5.3 µH | ±20% | 19.5 A | 33A | Shielded | 5.22mOhm Max | - | 11.8MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-452MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,623 |
|
规格书 |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.5 µH | ±20% | 20.4 A | 34.2A | Shielded | 4.58mOhm Max | - | 12.5MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-302MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
1,419 |
|
规格书 |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 3 µH | ±20% | 25.6 A | 43A | Shielded | 3.1mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.315" (8.00mm) |
|
|
XAL1580-401MEDPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
789 |
|
规格书 |
XAL1580 | Nonstandard | Strip | Active | Molded | Metal Composite | 400 nH | ±20% | 47 A | 111A | Shielded | 0.7mOhm Max | - | 53MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.638" L x 0.598" W (16.20mm x 15.20mm) | 0.323" (8.20mm) |
|
AGP2923-223KLFIXED IND 22UH 26A 2.6MOHM SM Coilcraft |
2,120 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 26 A | 12.2A | Unshielded | 2.6mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Through Hole | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
|
|
AGP2923-103KLFIXED IND 10UH 26A 2.6MOHM SM Coilcraft |
1,541 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 10 µH | ±10% | 26 A | 30A | Unshielded | 2.6mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Surface Mount | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
|
|
AGP2923-333KLFIXED IND 33UH 26A 2.6MOHM SM Coilcraft |
978 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 33 µH | ±10% | 26 A | 7.5A | Unshielded | 2.6mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Surface Mount | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
|
|
AGP2923-472KLFIXED IND 4.7UH 26A 2.6MOHM SM Coilcraft |
798 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 26 A | 63A | Unshielded | 2.6mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Surface Mount | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
|
|
AGP2923-682KLFIXED IND 6.8UH 26A 2.6MOHM SM Coilcraft |
203 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 6.8 µH | ±10% | 26 A | 48A | Unshielded | 2.6mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Surface Mount | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
|
|
AGP2923-153KLFIXED IND 15UH 26A 2.6MOHM SM Coilcraft |
193 |
|
规格书 |
AGP2923 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 26 A | 20.5A | Unshielded | 2.6mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 140°C | 300 kHz | - | Surface Mount | - | 1.060" L x 0.668" W (26.92mm x 16.97mm) | 0.935" (23.75mm) |
