固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

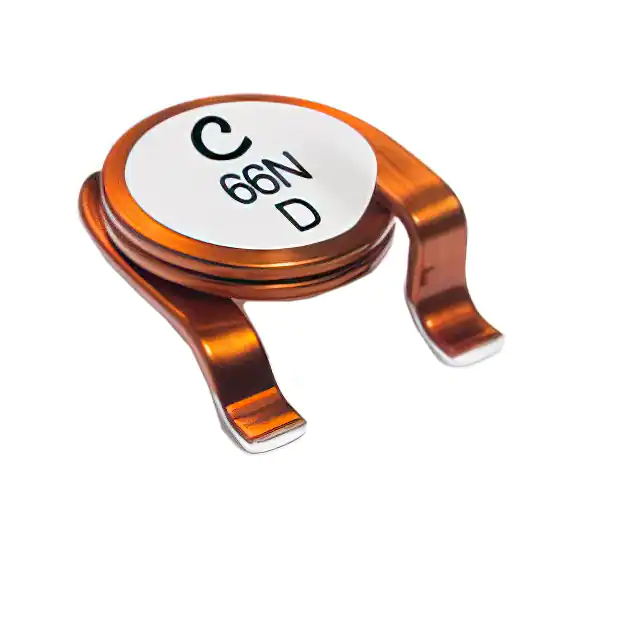

ZA9423-33NMEDFIXED INDUCTOR 0.033UH SMD Coilcraft |
257 |
|
规格书 |
ZA9423 | 3-SMD, Gull Wing | Strip | Active | Wirewound | Air | 33 nH | ±20% | 30.2 A | - | Unshielded | 0.62mOhm Max | 456 @ 100MHz | 817MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 3-SMD | 0.583" L x 0.776" W (14.80mm x 19.70mm) | 0.250" (6.35mm) |
|
SER2011-202MLDFIXED IND 2UH 40A 1.34MOHM SM Coilcraft |
8,079 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2 µH | ±20% | 40 A | 37A | Shielded | 1.34mOhm Max | - | 56MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.420" (10.67mm) |
|
|
SER2011-801MLDFIXED IND 800NH 40A 1.34MOHM SM Coilcraft |
610 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 800 nH | ±20% | 40 A | 70A | Shielded | 1.34mOhm Max | - | 113MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.420" (10.67mm) |
|
|
SER2011-102MLDFIXED IND 1UH 40A 1.34MOHM SM Coilcraft |
332 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 1 µH | ±20% | 40 A | 56A | Shielded | 1.34mOhm Max | - | 97MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.420" (10.67mm) |
|
|
SER2011-681MLDFIXED IND 680NH 40A 1.34MOHM SM Coilcraft |
174 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 680 nH | ±20% | 40 A | 78A | Shielded | 1.34mOhm Max | - | 135MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.420" (10.67mm) |
|
|
SER2011-501MLDFIXED IND 500NH 40A 1.34MOHM SM Coilcraft |
143 |
|
规格书 |
SER2000 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 500 nH | ±20% | 40 A | 100A | Shielded | 1.34mOhm Max | - | 161MHz | AEC-Q200 | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - | 0.755" L x 0.365" W (19.18mm x 9.27mm) | 0.420" (10.67mm) |
|

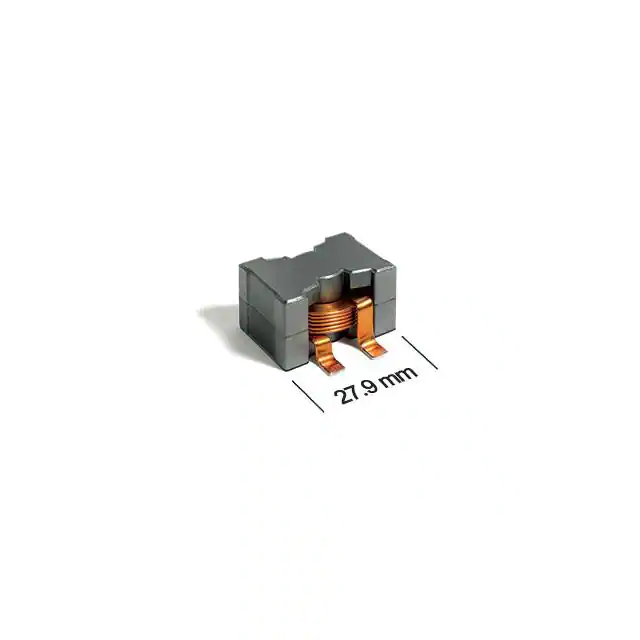

SER2918H-223KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
7,486 |
|
规格书 |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 22 µH | ±10% | 20 A | 12A | Shielded | 2.86mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-103KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
5,351 |
|
规格书 |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 10 µH | ±10% | 20 A | 28A | Shielded | 2.86mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-153KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
3,624 |
|
规格书 |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 15 µH | ±10% | 20 A | 18A | Shielded | 2.86mOhm Max | - | 16MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
|
|
SER2918H-333KLPOWER INDUCTOR, HIGH CURRENT, 10 Coilcraft |
2,278 |
|
规格书 |
SER2900 | Nonstandard | Strip | Active | - | Ferrite | 33 µH | ±10% | 20 A | 7A | Shielded | 2.86mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 500 kHz | - | Surface Mount | - | 1.100" L x 1.098" W (27.94mm x 27.90mm) | 0.700" (17.78mm) |
