固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SER2915L-223KLFIXED IND 22UH 30A 1.65MOHM SM Coilcraft |
390 |
|
规格书 |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 22 µH | ±10% | 30 A | 4.5A | Shielded | 1.65mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-472KLFIXED IND 4.7UH 39A 1.65MOHM SM Coilcraft |
318 |
|
规格书 |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 4.7 µH | ±10% | 39 A | 36A | Shielded | 1.65mOhm Max | - | 30MHz | AEC-Q200 | -40°C ~ 85°C | - | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-332KLFIXED IND 3.3UH 30A 1.65MOHM SM Coilcraft |
310 |
|
规格书 |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 3.3 µH | ±10% | 30 A | 48A | Shielded | 1.65mOhm Max | - | 40MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-222KLFIXED IND 2.2UH 30A 1.65MOHM SM Coilcraft |
194 |
|
规格书 |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 2.2 µH | ±10% | 30 A | 82A | Shielded | 1.65mOhm Max | - | 50MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|
|
SER2915L-153KLFIXED IND 15UH 30A 1.65MOHM SM Coilcraft |
170 |
|
规格书 |
SER2900 | Nonstandard | Tape & Reel (TR) | Active | Wirewound | Ferrite | 15 µH | ±10% | 30 A | 7.5A | Shielded | 1.65mOhm Max | - | 15MHz | AEC-Q200 | -40°C ~ 85°C | 500 kHz | - | Surface Mount | - | 1.098" L x 0.780" W (27.90mm x 19.80mm) | 0.605" (15.36mm) |
|

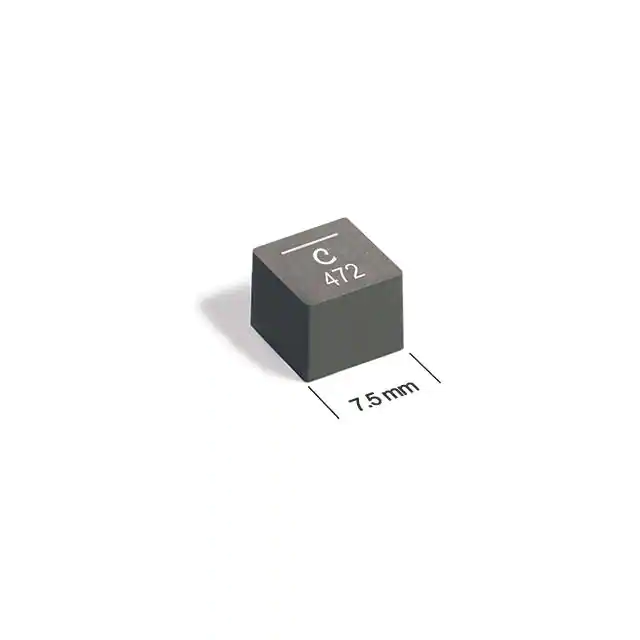

XAL7070-332MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
20,977 |
|
规格书 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 3.3 µH | ±20% | 15.1 A | 19.4A | Shielded | 9.42mOhm Max | - | 32MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-472MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
15,320 |
|
规格书 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 4.7 µH | ±20% | 13.6 A | 15.2A | Shielded | 14.26mOhm Max | - | 26MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-102MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
9,022 |
|
规格书 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 1 µH | ±20% | 25 A | 34.8A | Shielded | 2.81mOhm Max | - | 64MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-161MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
7,811 |
|
规格书 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 160 nH | ±20% | 36.1 A | 78A | Shielded | 0.83mOhm Max | - | 207MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
|
|
XAL7070-801MECPOWER INDUCTOR, SHIELDED, 20% TO Coilcraft |
6,539 |
|
规格书 |
XAL7070 | Nonstandard | Strip | Active | Molded | Metal Composite | 800 nH | ±20% | 25.8 A | 37.8A | Shielded | 2.29mOhm Max | - | 67MHz | AEC-Q200 | -40°C ~ 165°C | 1 MHz | - | Surface Mount | - | 0.295" L x 0.283" W (7.50mm x 7.20mm) | 0.276" (7.00mm) |
