固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5512-RCFIXED IND 68UH 7.3A 34 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 7.3 A | - | Unshielded | 34mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.120" L (22.35mm x 28.45mm) | - |
|
|
5513-RCFIXED IND 100UH 6.8A 38 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 6.8 A | - | Unshielded | 38mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.380" L (22.35mm x 35.05mm) | - |
|
|
5514-RCFIXED IND 150UH 6.3A 46 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 6.3 A | - | Unshielded | 46mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.880" Dia x 1.620" L (22.35mm x 41.15mm) | - |
|
|
5515-RCFIXED IND 5UH 19A 6 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 19 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.690" Dia x 1.120" L (17.53mm x 28.45mm) | - |
|
|
5517-RCFIXED IND 27UH 12.5A 14 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 12.5 A | - | Unshielded | 14mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.120" L (23.88mm x 28.45mm) | - |
|
|
5518-RCFIXED IND 50UH 10.5A 20 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±20% | 10.5 A | - | Unshielded | 20mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
|
|
5519-RCFIXED IND 68UH 10A 23 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 10 A | - | Unshielded | 23mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.940" Dia x 1.380" L (23.88mm x 35.05mm) | - |
|

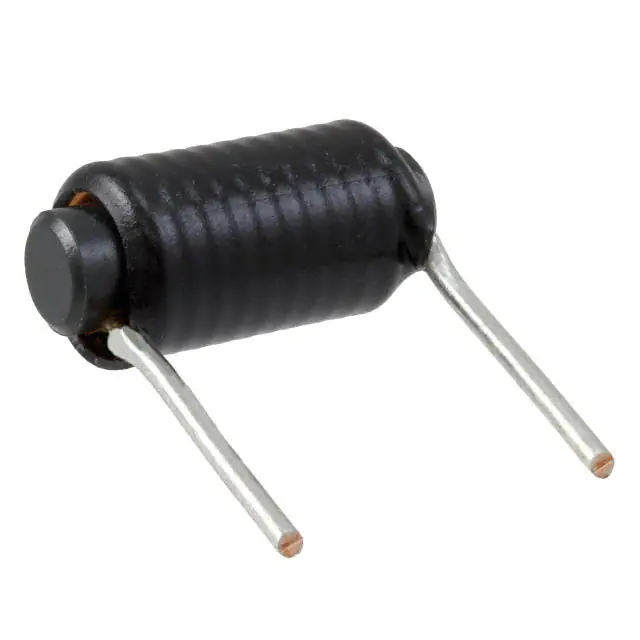

5521-RCFIXED IND 5UH 23A 4 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 5 µH | ±20% | 23 A | - | Unshielded | 4mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.380" L (18.28mm x 35.05mm) | - |
|
|
5522-RCFIXED IND 10UH 20A 6 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 20 A | - | Unshielded | 6mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 0.720" Dia x 1.690" L (18.28mm x 42.93mm) | - |
|
|
5524-RCFIXED IND 50UH 15A 13 MOHM TH Bourns Inc. |
0 |
|
规格书 |
5500 | Radial, Horizontal Cylinder | Bulk | Obsolete | Drum Core, Wirewound | Ferrite | 50 µH | ±20% | 15 A | - | Unshielded | 13mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - | 1.000" Dia x 1.620" L (25.40mm x 41.15mm) | - |
