固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SRP6540-R82MFIXED IND 820NH 15A 5.5 MOHM SMD |
2,426 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 820 nH | ±20% | 15 A | 15A | Shielded | 5.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
NS12575T100MNFIXED IND 10UH 5.55A 18.72 MOHM |
1,590 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 5.55 A | 7.65A | Shielded | 18.72mOhm Max | - | 21.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
IHLP3232CZER220M11FIXED IND 22UH 3.6A 132 MOHM SMD |
1,266 |
|
规格书 |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 22 µH | ±20% | 3.6 A | 2.8A | Shielded | 132mOhm Max | - | 7.7MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
CMLE064TR15MS35-1FIXED IND 150NH 40A 0.66MOHM SMD |
703 |
|
规格书 |
CMLE064T | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 150 nH | ±20% | 40 A | 46A | Shielded | 0.66mOhm | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.299" L x 0.260" W (7.60mm x 6.60mm) | 0.157" (4.00mm) |
|
|
IHLP3232CZER2R2M11FIXED IND 2.2UH 10.4A 14.7 MOHM |
177 |
|
规格书 |
IHLP-3232CZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 10.4 A | 10.4A | Shielded | 14.7mOhm Max | - | 30MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
|
CDRH105RNP-330NCFIXED IND 33UH 2.5A 84 MOHM SMD |
8,476 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±30% | 2.5 A | 2.4A | Shielded | 84mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|
|
SRP6540-6R8MFIXED IND 6.8UH 5A 49.5 MOHM SMD |
5,640 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 6.8 µH | ±20% | 5 A | 5.5A | Shielded | 49.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
IHLP4040DZER100M11FIXED IND 10UH 7.5A 30.5MOHM SMD |
5,428 |
|
规格书 |
IHLP-4040DZ-11 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 7.5 A | 7.1A | Shielded | 30.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | 4040 | 0.425" L x 0.400" W (10.80mm x 10.16mm) | 0.157" (4.00mm) |
|
CDRH105RNP-221NCFIXED IND 220UH 940MA 500MOHM SM |
3,772 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 220 µH | ±30% | 940 mA | 940mA | Shielded | 500mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.205" (5.20mm) |
|

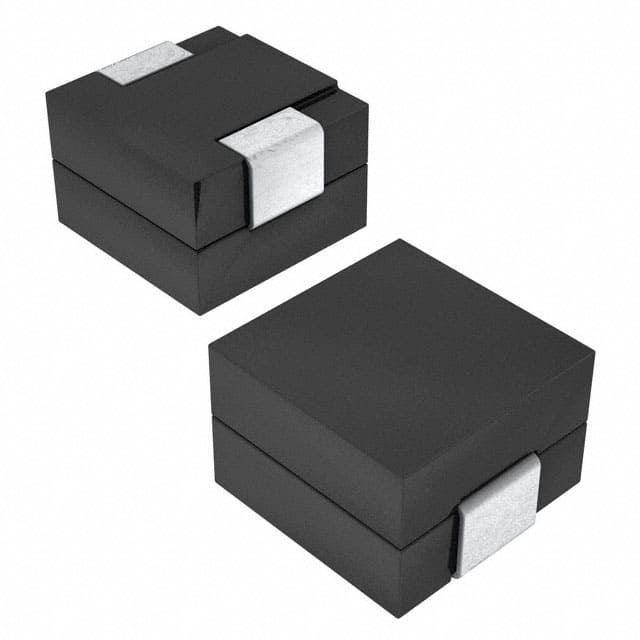

IFLR5151HZERR32M01FIXED IND 320NH 50A 0.35MOHM SMD |
2,846 |
|
规格书 |
IFLR-5151HZ-01 | 2-SMD, J-Lead | Tape & Reel (TR) | Active | - | - | 320 nH | ±20% | 50 A | 50A | Shielded | 0.35mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.512" L x 0.512" W (13.00mm x 13.00mm) | 0.315" (8.00mm) |
|
IHLP3232DZER2R2M01FIXED IND 2.2UH 10.5A 13.7 MOHM |
2,031 |
|
- |
IHLP-3232DZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 2.2 µH | ±20% | 10.5 A | 23A | Shielded | 13.7mOhm Max | - | 33MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.157" (4.00mm) |
|
|
CDRH105RNP-220NCFIXED IND 22UH 2.9A 61 MOHM SMD |
1,912 |
|
规格书 |
CDRH105R | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±30% | 2.9 A | 2.95A | Shielded | 61mOhm Max | - | - | - | -40°C ~ 100°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.394" W (10.20mm x 10.00mm) | 0.201" (5.10mm) |
|

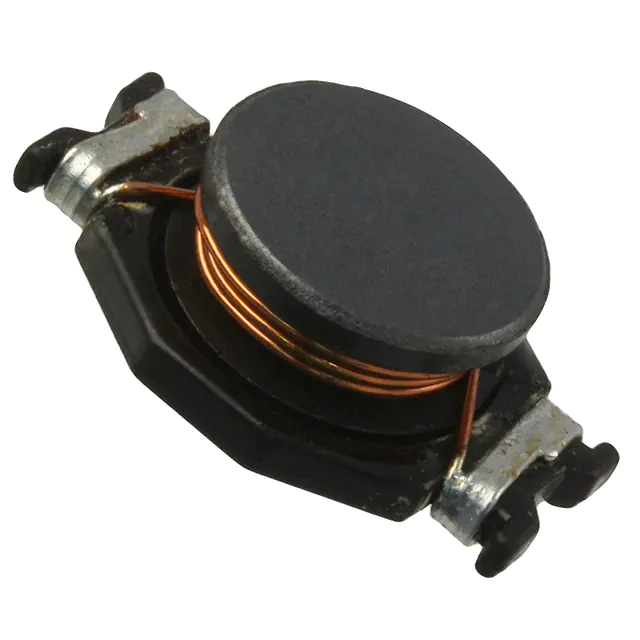

SDR2207-101KLFIXED IND 100UH 2.2A 168MOHM SMD |
1,864 |
|
规格书 |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 2.2 A | 3A | Unshielded | 168mOhm Max | 18 @ 2MHz | 6.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
SDR2207-100MLFIXED IND 10UH 6.5A 17.2MOHM SMD |
882 |
|
规格书 |
SDR2207 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 6.5 A | 10A | Unshielded | 17.2mOhm Max | 53 @ 5MHz | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
MPLC0730L3R3FIXED IND 3.3UH 5.7A 30 MOHM SMD |
852 |
|
规格书 |
MPLC | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Wirewound | - | 3.3 µH | ±20% | 5.7 A | 6.5A | Shielded | 30mOhm Max | - | - | - | -20°C ~ 120°C | 100 kHz | - | Surface Mount | - | 0.303" L x 0.264" W (7.70mm x 6.70mm) | 0.118" (3.00mm) |
|
ECS-MPI4040R4-3R3-RFIXED IND 3.3UH 3.3A 49 MOHM SMD |
7,331 |
|
规格书 |
ECS-MPI4040 | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 3.3 A | 4.5A | Shielded | 49mOhm | - | - | AEC-Q200 | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.175" L x 0.160" W (4.45mm x 4.06mm) | 0.079" (2.00mm) |
|
PCMB063T-R47MSFIXED IND 470NH 17.5A 4.2MOHM SM |
5,723 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 470 nH | ±20% | 17.5 A | 26A | Unshielded | 4.2mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
|
ETQ-P5M100YFMFIXED IND 10UH 5.7A 41.3MOHM SMD |
5,649 |
|
规格书 |
PCC-M0754M | 2-SMD, J-Lead | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 10 µH | ±20% | 5.7 A | 10.6A | Shielded | 41.3mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
VCHA042A-100MS6FIXED IND 10UH 2.5A 129MOHM SMD |
5,084 |
|
规格书 |
VCHA042A | Nonstandard | Tape & Reel (TR) | Active | - | Metal | 10 µH | ±20% | 2.5 A | 2A | Unshielded | 129mOhm Max | - | - | AEC-Q200 | -55°C ~ 165°C | 100 kHz | - | Surface Mount | - | 0.165" L x 0.157" W (4.20mm x 4.00mm) | 0.083" (2.10mm) |
|
|
PCMB063T-3R3MSFIXED IND 3.3UH 6A 30 MOHM SMD |
4,821 |
|
规格书 |
PCMB | Nonstandard | Tape & Reel (TR) | Active | - | - | 3.3 µH | ±20% | 6 A | 13.5A | Unshielded | 30mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - | 0.274" L x 0.260" W (6.95mm x 6.60mm) | 0.110" (2.80mm) |
