固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
B82464A4683K000FIXED IND 68UH 1.25A 200MOHM SMD |
2,051 |
|
规格书 |
B82464A4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±10% | 1.25 A | 1.5A | Unshielded | 200mOhm Max | - | 100kHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.409" L x 0.409" W (10.40mm x 10.40mm) | 0.189" (4.80mm) |
|

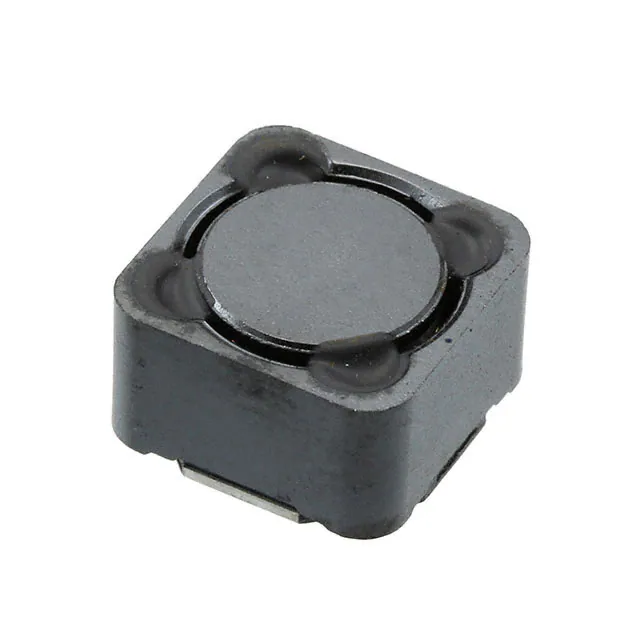

SRR1280A-220MFIXED IND 22UH 4.3A 38.6MOHM SMD |
1,723 |
|
规格书 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 22 µH | ±20% | 4.3 A | 4.1A | Shielded | 38.6mOhm Max | 20 @ 2.52MHz | 11MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
768772102FIXED IND 1MH 500MA 2.08 OHM TH |
1,674 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 500 mA | 550mA | Unshielded | 2.08Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
CDRH125NP-102MCFIXED IND 1MH 400MA 1.53 OHM SMD |
784 |
|
规格书 |
CDRH125 | Nonstandard | Tape & Reel (TR) | Active | - | - | 1 mH | ±20% | 400 mA | - | Shielded | 1.53Ohm Max | - | - | - | -40°C ~ 100°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|
MPXV1D0830L6R8FIXED IND 6.8UH 6.8A 37.9MOHM SM |
626 |
|
规格书 |
METCOM MPXV | Nonstandard | Tape & Reel (TR) | Active | - | Metal Composite | 6.8 µH | ±20% | 6.8 A | 10A | Shielded | 37.9mOhm Max | - | 16MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.341" L x 0.315" W (8.65mm x 8.00mm) | 0.118" (3.00mm) |
|
SRP7028AA-4R7MIND,7.1X6.6X2.8MM,4.7UH20%,5.5A, |
536 |
|
规格书 |
SRP7028AA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 5.5 A | 6.5A | Shielded | 33mOhm Max | 10 @ 100kHz | 20MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.280" L x 0.260" W (7.10mm x 6.60mm) | 0.118" (3.00mm) |
|
|
SRR1280A-330MFIXED IND 33UH 3.5A 57 MOHM SMD |
507 |
|
规格书 |
SRR1280A | Nonstandard | Tape & Reel (TR) | Active | - | Ferrite | 33 µH | ±20% | 3.5 A | 3.3A | Shielded | 57mOhm Max | 28 @ 2.52MHz | 9.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | 1280 | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
SRP6540-8R2MFIXED IND 8.2UH 4.5A 50.5MOHM SM |
9,542 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 8.2 µH | ±20% | 4.5 A | 5A | Shielded | 50.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-5R6MFIXED IND 5.6UH 5.5A 38 MOHM SMD |
9,245 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 5.6 µH | ±20% | 5.5 A | 6A | Shielded | 38mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-4R7MFIXED IND 4.7UH 6A 33.5 MOHM SMD |
6,463 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 6 A | 6.5A | Shielded | 33.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
SRP6540-2R2MFIXED IND 2.2UH 9A 15.5 MOHM SMD |
6,168 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 2.2 µH | ±20% | 9 A | 9A | Shielded | 15.5mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
SRP5020TA-4R7MFIXED IND 4.7UH 2.8A 116MOHM SMD |
5,917 |
|
规格书 |
SRP5020TA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 2.8 A | 5A | Shielded | 116mOhm Max | 18 @ 100kHz | 30MHz | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.224" L x 0.205" W (5.70mm x 5.20mm) | 0.079" (2.00mm) |
|
SRP4020FA-1R5MFIXED IND 1.5UH 9.1A 15.8MOHM SM |
5,837 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±20% | 9.1 A | 4.5A | Shielded | 15.8mOhm Max | 20 @ 100kHz | 45MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
|
SRP4020FA-4R7MFIXED IND 4.7UH 5.1A 57.2MOHM SM |
3,842 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 4.7 µH | ±20% | 5.1 A | 2.7A | Shielded | 57.2mOhm Max | 15 @ 100kHz | 25MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
SLF10145T-5R6M3R2-HFIXED IND 5.6UH 3.2A 26.4MOHM SM |
3,297 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 3.2 A | 3.8A | Shielded | 26.4mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
NS12575T150MNFIXED IND 15UH 5.22A 22.08 MOHM |
3,259 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 5.22 A | 6.54A | Shielded | 22.08mOhm Max | - | 14MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SRP6540-3R3MFIXED IND 3.3UH 6.5A 23 MOHM SMD |
3,143 |
|
规格书 |
SRP6540 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 3.3 µH | ±20% | 6.5 A | 7A | Shielded | 23mOhm Max | - | - | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.283" L x 0.256" W (7.20mm x 6.50mm) | 0.157" (4.00mm) |
|
|
NS12575T680MNFIXED IND 68UH 2.49A 86.4MOHM SM |
2,783 |
|
规格书 |
NS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 2.49 A | 2.78A | Shielded | 86.4mOhm Max | - | 5.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.309" (7.85mm) |
|
|
SRP4020FA-1R2MFIXED IND 1.2UH 9.5A 13.4MOHM SM |
2,720 |
|
规格书 |
SRP4020FA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Iron Powder | 1.2 µH | ±20% | 9.5 A | 5A | Shielded | 13.4mOhm Max | 20 @ 100kHz | 53MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|
IHLP3232CZER100M01FIXED IND 10UH 4.7A 71.2MOHM SMD |
2,474 |
|
规格书 |
IHLP-3232CZ-01 | Nonstandard | Tape & Reel (TR) | Active | Molded | - | 10 µH | ±20% | 4.7 A | 8.2A | Shielded | 71.2mOhm Max | - | 15MHz | - | -55°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.340" L x 0.322" W (8.64mm x 8.18mm) | 0.118" (3.00mm) |
