固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74404086101FIXED IND 100UH 1.35A 238MOHM SM Würth Elektronik |
2,044 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.35 A | 2.15A | Shielded | 238mOhm | - | 4MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 8065 | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.256" (6.50mm) |
.jpg)
|
74479887310AFIXED IND 10UH 850MA 300MOHM SMD Würth Elektronik |
1,101 |
|
规格书 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 10 µH | ±20% | 850 mA | 125mA | Shielded | 300mOhm | 27 @ 1MHz | 20MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|

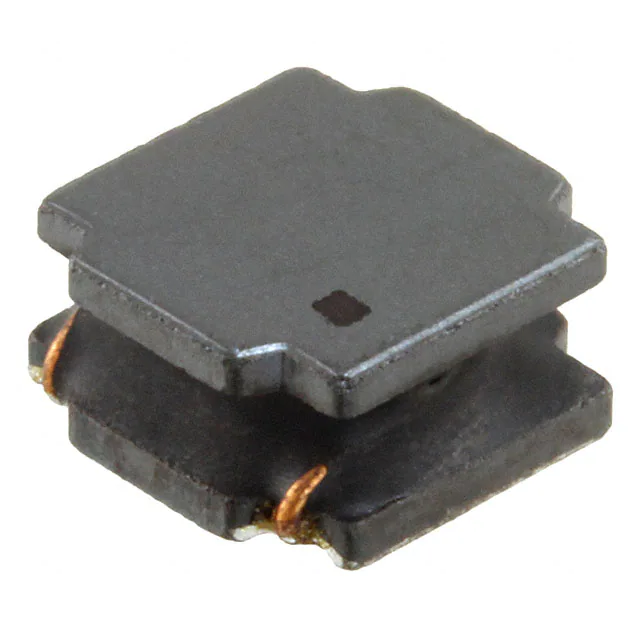

74404084221FIXED IND 220UH 810MA 592MOHM SM Würth Elektronik |
3,974 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 µH | ±20% | 810 mA | 1.1A | Shielded | 592mOhm | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.165" (4.20mm) |
.jpg)
|

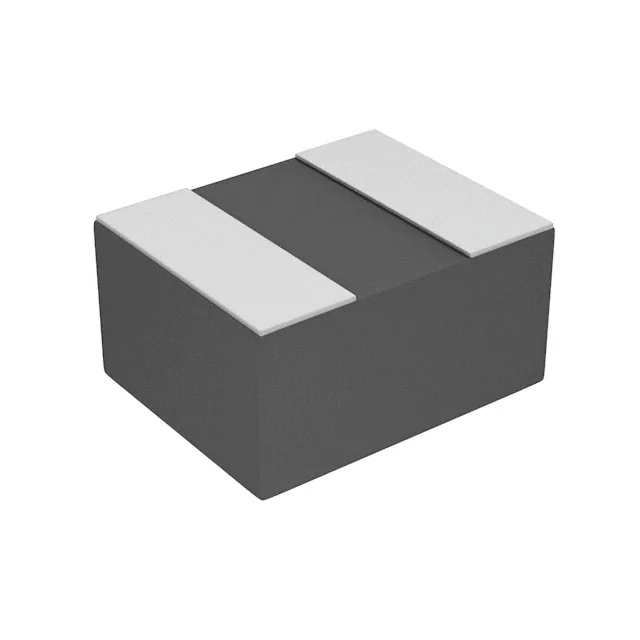

74438343022FIXED IND 2.2UH 1.1A 270MOHM SMD Würth Elektronik |
5,060 |
|
规格书 |
WE-MAPI | 0806 (2016 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 2.2 µH | ±30% | 1.1 A | 2.5A | Shielded | 270mOhm Max | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2010 | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

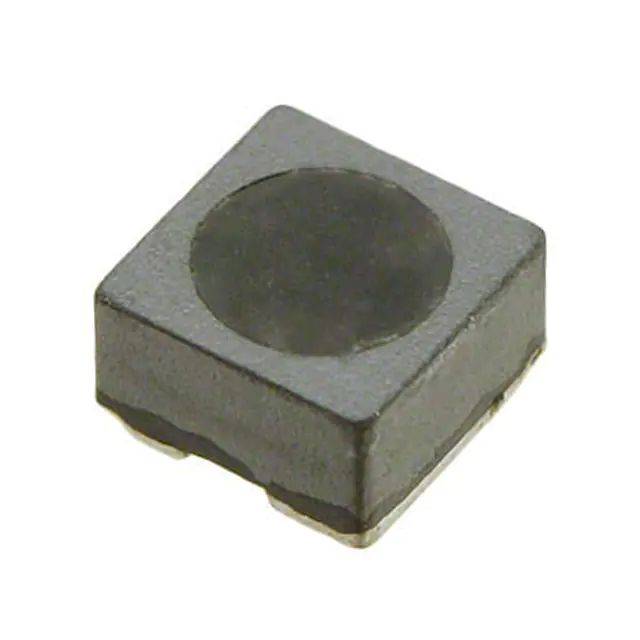

744043003FIXED IND 3.3UH 2.15A 35MOHM SMD Würth Elektronik |
14,295 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 2.15 A | 1.8A | Shielded | 35mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 4828 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

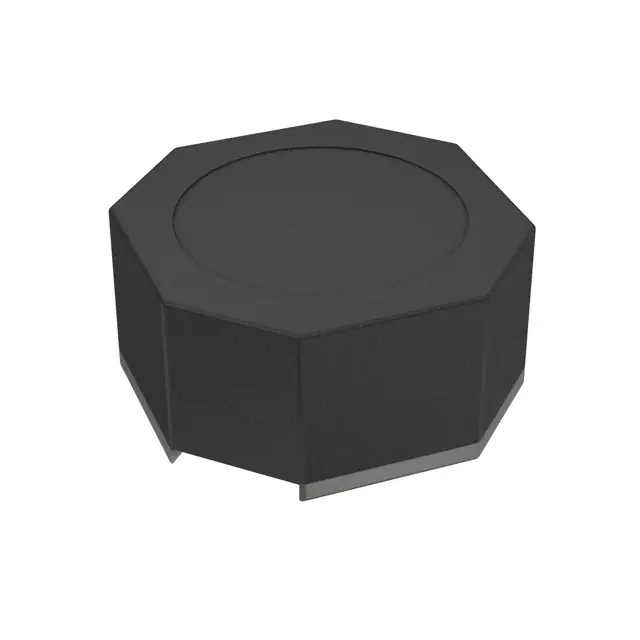

744029001FIXED IND 1UH 2.2A 55 MOHM SMD Würth Elektronik |
8,520 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.2 A | 1.6A | Shielded | 55mOhm Max | - | 150MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|

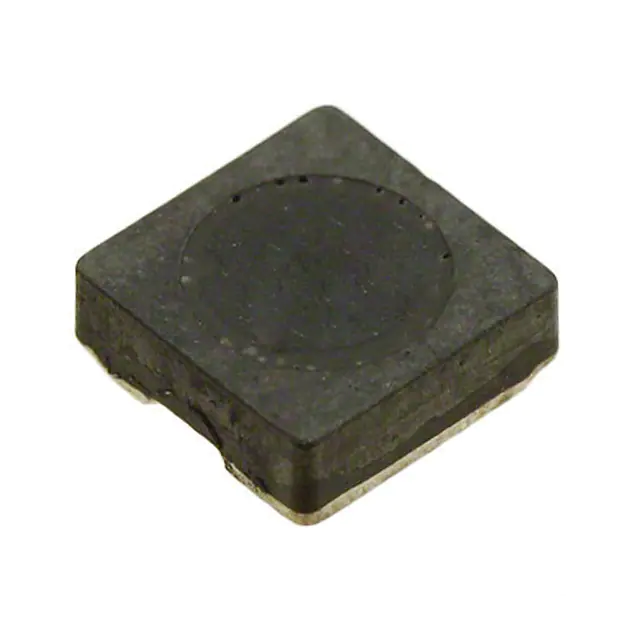

744042004FIXED IND 4.7UH 1.72A 82MOHM SMD Würth Elektronik |
5,821 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1.72 A | 1.65A | Shielded | 82mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.079" (2.00mm) |
|
|
744029004FIXED IND 4.7UH 1A 200 MOHM SMD Würth Elektronik |
5,026 |
|
规格书 |
WE-TPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 1 A | 800mA | Shielded | 200mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2828 | 0.110" L x 0.110" W (2.80mm x 2.80mm) | 0.059" (1.50mm) |
|

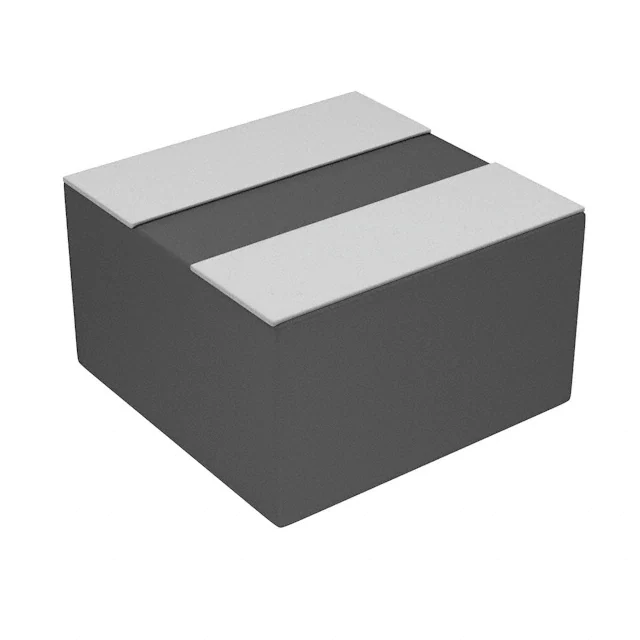

74438336010FIXED IND 1UH 4A 32 MOHM SMD Würth Elektronik |
13,332 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 1 µH | ±20% | 4 A | 5A | Shielded | 32mOhm Max | - | 67MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
|
|
74438336068FIXED IND 6.8UH 1.6A 193MOHM SMD Würth Elektronik |
12,932 |
|
规格书 |
WE-MAPI | 1212 (3030 Metric) | Tape & Reel (TR) | Active | Molded | Metal Composite | 6.8 µH | ±20% | 1.6 A | 2.85A | Shielded | 193mOhm Max | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 3020 | 0.118" L x 0.118" W (3.00mm x 3.00mm) | 0.079" (2.00mm) |
