固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7847805820WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
0 |
|
规格书 |
WE-MCI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 8.2 nH | ±5% | 300 mA | - | Unshielded | 240mOhm Max | 10 @ 100MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
7847804560WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
0 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 56 nH | ±5% | 200 mA | - | Unshielded | 1.2Ohm Max | 8 @ 100MHz | 800MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847804330WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
0 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 33 nH | ±5% | 200 mA | - | Unshielded | 670mOhm Max | 8 @ 100MHz | 1.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847803680WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
0 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 6.8 nH | ±5% | 300 mA | - | Unshielded | 290mOhm Max | 8 @ 100MHz | 4.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7847804390WE-MCI MULTILAYER CERAMIC SMD IN Würth Elektronik |
0 |
|
规格书 |
WE-MCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 39 nH | ±5% | 200 mA | - | Unshielded | 1.06Ohm Max | 8 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
.jpg)
|
744786222AFIXED IND 220NH 200MA 2.4OHM SMD Würth Elektronik |
32 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 220 nH | ±5% | 200 mA | - | Unshielded | 2.4Ohm Max | 8 @ 100MHz | 350MHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
744786039AFIXED IND 3.9NH 600MA 160MOHM SM Würth Elektronik |
17 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 3.9 nH | ±0.3nH | 600 mA | - | Unshielded | 160mOhm Max | 8 @ 100MHz | 6GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

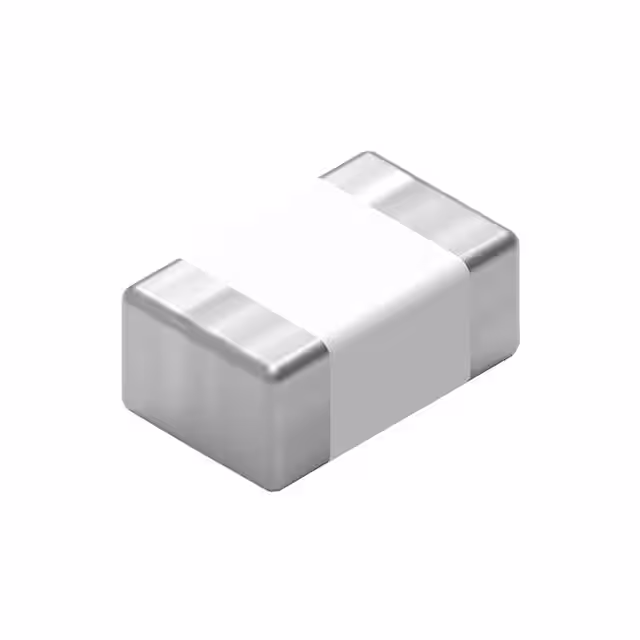

7447880047WE-MK MULTILAYER CERAMIC SMT IND Würth Elektronik |
0 |
|
规格书 |
WE-MK | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 4.7 nH | ±0.3nH | 300 mA | - | Unshielded | 200mOhm Max | 12 @ 100MHz | 3.5GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.041" (1.05mm) |
|
744760315CFIXED IND 1.5UH 130MA 5.3OHM SMD Würth Elektronik |
24 |
|
规格书 |
WE-KI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1.5 µH | ±5% | 130 mA | - | Unshielded | 5.3Ohm Max | 20 @ 25MHz | 200MHz | - | -40°C ~ 125°C | 7.9 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
744761111CFIXED IND 11NH 700MA 100MOHM SMD Würth Elektronik |
12 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 11 nH | ±5% | 700 mA | - | Unshielded | 100mOhm Max | 30 @ 250MHz | 4GHz | - | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.065" L x 0.045" W (1.65mm x 1.15mm) | 0.043" (1.10mm) |
