固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7687480102WE-TI HV RADIAL LEADED WIRE WOUN Würth Elektronik |
0 |
|
规格书 |
WE-TI HV | Radial, Vertical Cylinder | Tray | Active | Wirewound | - | 1 mH | ±5% | 800 mA | 800mA | Unshielded | 1.2Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | Radial, Vertical Cylinder | 0.413" Dia (10.50mm) | 0.571" (14.50mm) |
|
744787220FIXED IND 22UH 1.83A 103MOHM SMD Würth Elektronik |
3 |
|
规格书 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.83 A | 1.7A | Shielded | 103mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
|
744787120FIXED IND 12UH 2.45A 52 MOHM SMD Würth Elektronik |
0 |
|
规格书 |
WE-PD2SR | 2-SMD | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 2.45 A | 2.4A | Shielded | 52mOhm Max | - | 20MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.177" (4.50mm) |
|
7447231103FIXED IND 10MH 250MA 8.5 OHM TH Würth Elektronik |
0 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 10 mH | ±5% | 250 mA | 320mA | Unshielded | 8.5Ohm Max | - | 320kHz | - | -40°C ~ 125°C | 10 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|
|
7447231681FIXED IND 680UH 1A 590 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder, 4 Leads | Tray | Active | Wirewound | - | 680 µH | ±10% | 1 A | 1.2A | Unshielded | 590mOhm Max | - | 1.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.433" Dia (11.00mm) | 0.748" (19.00mm) |
|

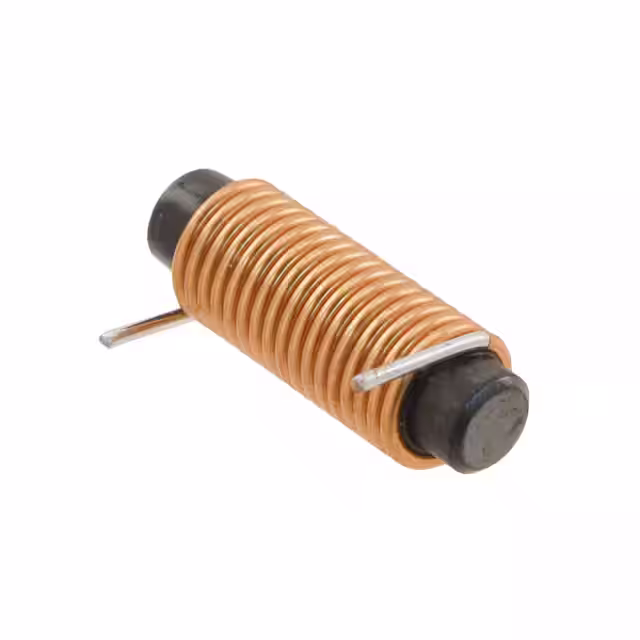

744710605FIXED IND 6UH 5A 11.7 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-SD | Radial, Horizontal Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 6 µH | ±25% | 5 A | - | Unshielded | 11.7mOhm | - | 60MHz | - | -40°C ~ 150°C | 10 kHz | - | Through Hole | - | 0.272" Dia x 0.807" L (6.90mm x 20.50mm) | - |
|
7447773022FIXED IND 2.2UH 4.8A 17.5MOHM SM Würth Elektronik |
24 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±30% | 4.8 A | 8A | Shielded | 17.5mOhm Max | - | 61MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7345 | 0.291" L x 0.287" W (7.40mm x 7.30mm) | 0.177" (4.50mm) |
|

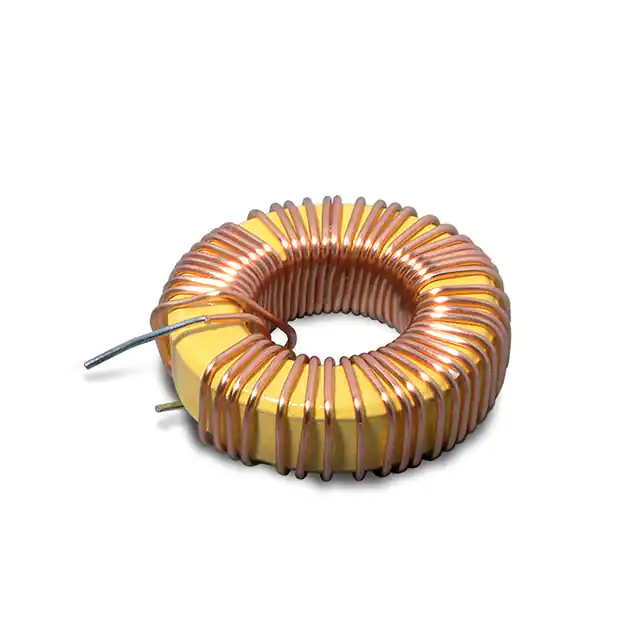

744150FIXED IND 26UH 10.3A 15 MOHM TH Würth Elektronik |
3 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Tray | Active | Toroidal | Iron Powder | 26 µH | ±20% | 10.3 A | 4A | Shielded | 15mOhm Max | - | 25MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 1.122" Dia x 0.571" W (28.50mm x 14.50mm) | - |
|
744775118FIXED IND 18UH 1.89A 100MOHM SMD Würth Elektronik |
18 |
|
规格书 |
WE-PD2 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 1.89 A | 2.14A | Unshielded | 100mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 10 kHz | - | Surface Mount | - | 0.307" L x 0.276" W (7.80mm x 7.00mm) | 0.217" (5.50mm) |
|
744750460100FIXED IND 10UH 9.2A 8.6 MOHM TH Würth Elektronik |
0 |
|
规格书 |
WE-FAMI | Radial, Vertical Cylinder | Tray | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 9.2 A | 11.3A | Shielded | 8.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Through Hole | - | 0.504" Dia (12.80mm) | 0.622" (15.80mm) |
