固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744772103FIXED IND 10MH 140MA 24 OHM TH Würth Elektronik |
565 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 10 mH | ±5% | 140 mA | 170mA | Unshielded | 24Ohm Max | - | 430kHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

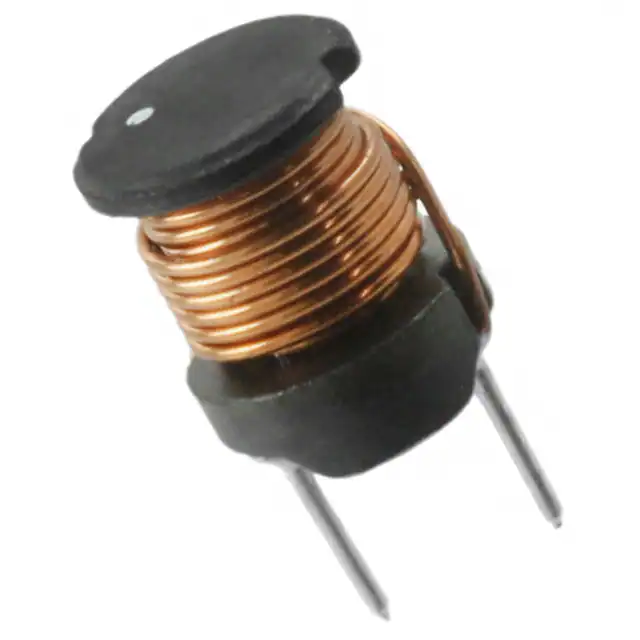

744772220FIXED IND 22UH 2.3A 55 MOHM TH Würth Elektronik |
461 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 2.3 A | 3.6A | Unshielded | 55mOhm Max | - | 12.4MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|

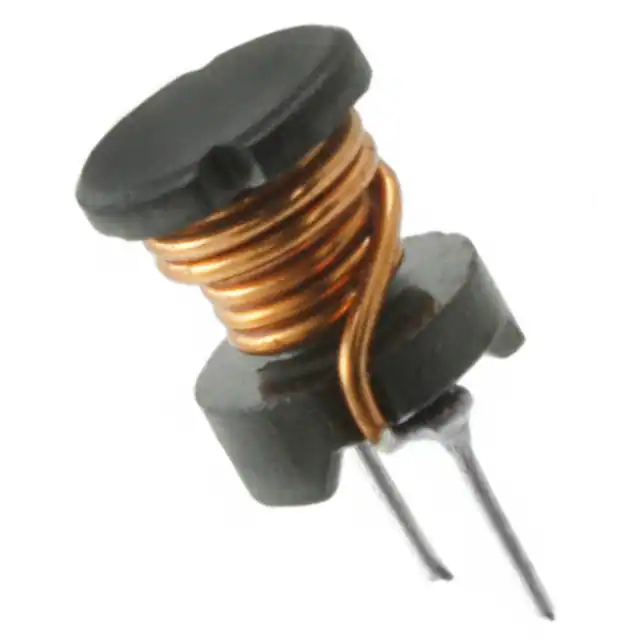

744772022FIXED IND 2.2UH 6.7A 10 MOHM TH Würth Elektronik |
434 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 6.7 A | 8A | Unshielded | 10mOhm Max | - | 75.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772101FIXED IND 100UH 900MA 190MOHM TH Würth Elektronik |
243 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±10% | 900 mA | 1.6A | Unshielded | 190mOhm Max | - | 6.6MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720222FIXED IND 2.2MH 300MA 4.73OHM TH Würth Elektronik |
229 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 2.2 mH | ±5% | 300 mA | 350mA | Unshielded | 4.73Ohm Max | - | 1.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772047FIXED IND 4.7UH 4A 18 MOHM TH Würth Elektronik |
182 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 4 A | 5.4A | Unshielded | 18mOhm Max | - | 43.1MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720181FIXED IND 180UH 1A 390 MOHM TH Würth Elektronik |
134 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 1 A | 1.1A | Unshielded | 390mOhm Max | - | 3.8MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
7447720122FIXED IND 1.2MH 360MA 2.6 OHM TH Würth Elektronik |
134 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±5% | 360 mA | 450mA | Unshielded | 2.6Ohm Max | - | 1.5MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
|
744772010FIXED IND 1UH 7.5A 10 MOHM TH Würth Elektronik |
94 |
|
规格书 |
WE-TI | Radial, Vertical Cylinder (Open) | Tray | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 7.5 A | 10A | Unshielded | 10mOhm Max | - | 160MHz | - | -40°C ~ 125°C | 1 kHz | - | Through Hole | - | 0.307" Dia (7.80mm) | 0.394" (10.00mm) |
|
744043331FIXED IND 330UH 285MA 1.7OHM SMD Würth Elektronik |
70 |
|
规格书 |
WE-TPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 285 mA | 170mA | Shielded | 1.7Ohm Max | - | 4.3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1919 | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
