| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74454247FIXED IND 470UH 300MA 1.6OHM SMD Würth Elektronik |
500 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 470 µH | ±10% | 300 mA | 500mA | Shielded | 1.6Ohm Max | - | 3.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
|
74451215FIXED IND 150UH 260MA 0.59OHM SM Würth Elektronik |
500 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 150 µH | ±20% | 260 mA | 50mA | Shielded | 590mOhm Max | - | 6MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
74457230FIXED IND 1MH 560MA 1.8 OHM SMD Würth Elektronik |
250 |
|
规格书 |
WE-PD4 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 560 mA | 1A | Unshielded | 1.8Ohm Max | - | 1.4MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
|
74457268FIXED IND 680UH 720MA 1.2OHM SMD Würth Elektronik |
240 |
|
规格书 |
WE-PD4 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±10% | 720 mA | 1.2A | Unshielded | 1.2Ohm Max | - | 1.8MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.866" L x 0.591" W (22.00mm x 15.00mm) | 0.307" (7.80mm) |
|
7843331200WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik |
110 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 12 µH | ±20% | 5.6 A | 9.1A | Shielded | 33.2mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7445302FIXED IND 2.2UH 2.76A 0.045OHM Würth Elektronik |
997 |
|
规格书 |
WE-PD3 | Nonstandard | Bulk | Active | Drum Core, Wirewound | - | 2.2 µH | ±20% | 2.76 A | 6A | Shielded | 45mOhm Max | - | 70MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.398" W (12.70mm x 10.10mm) | 0.118" (3.00mm) |
|
74404024220FIXED IND 22UH 450MA 910MOHM SMD Würth Elektronik |
59 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 450 mA | 550mA | Shielded | 910mOhm | - | 22MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 2520 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.047" (1.20mm) |
|
74479299147FIXED IND 470NH 3.6A 31 MOHM SMD Würth Elektronik |
33 |
|
规格书 |
WE-PMCI | 1210 (3225 Metric) | Tape & Reel (TR) | Active | Molded | - | 470 nH | ±30% | 3.6 A | 6.3A | Shielded | 31mOhm Max | - | 80MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.126" L x 0.098" W (3.20mm x 2.50mm) | 0.047" (1.20mm) |
|
78438356010FIXED IND 1UH 7.2A 15 MOHM SMD Würth Elektronik |
56 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1 µH | ±20% | 7.2 A | 9A | Shielded | 15mOhm Max | - | 55MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
|

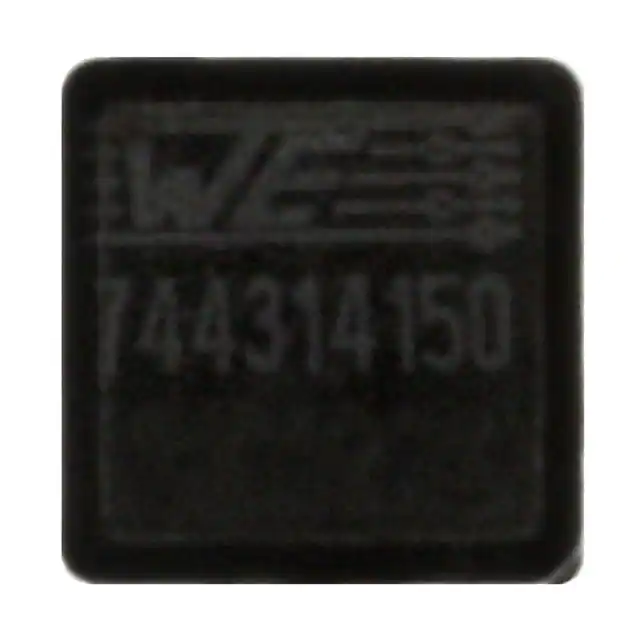

744314150FIXED IND 1.5UH 13A 4.3 MOHM SMD Würth Elektronik |
84 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.5 µH | ±20% | 13 A | 11A | Shielded | 4.3mOhm | - | 110MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
