固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

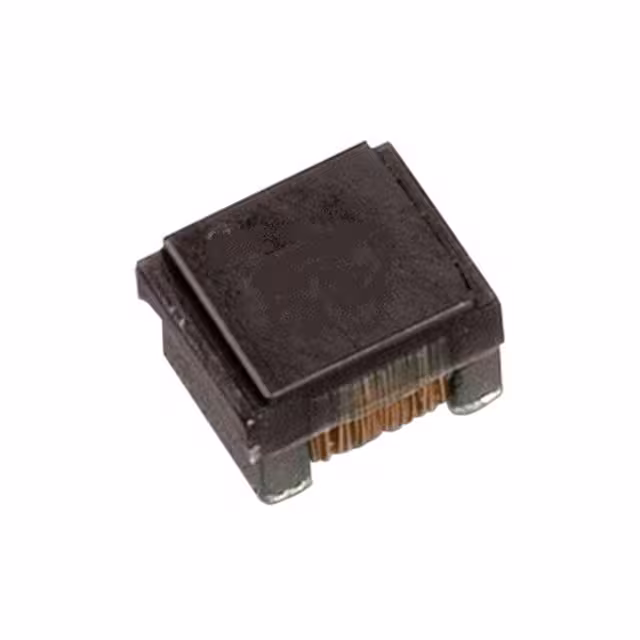

744762427AFIXED IND 27UH 95MA 6 OHM SMD Würth Elektronik |
2,000 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±5% | 95 mA | - | Unshielded | 6Ohm Max | 15 @ 2.52MHz | 21MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
.jpg)
|
74479875222CFIXED IND 2.2UH 1.4A 140MOHM SMD Würth Elektronik |
2,089 |
|
规格书 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Obsolete | Multilayer | - | 2.2 µH | ±20% | 1.4 A | 600mA | Shielded | 140mOhm | 25 @ 1MHz | 45MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.039" (1.00mm) |
|
|
74479774147FIXED IND 470NH 1.3A 120MOHM SMD Würth Elektronik |
1,601 |
|
规格书 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 470 nH | ±20% | 1.3 A | 700mA | Shielded | 120mOhm | 8 @ 1MHz | 130MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
.jpg)
|
74479787210BFIXED IND 1UH 1.95A 60 MOHM SMD Würth Elektronik |
1,570 |
|
规格书 |
WE-PMI | 1008 (2520 Metric) | Tape & Reel (TR) | Last Time Buy | Multilayer | - | 1 µH | ±20% | 1.95 A | 1.15A | Shielded | 60mOhm | 23 @ 1MHz | 75MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
784774139FIXED IND 39UH 940MA 320MOHM SMD Würth Elektronik |
1,500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 39 µH | ±20% | 940 mA | 1.1A | Unshielded | 320mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774212FIXED IND 120UH 490MA 930MOHM SM Würth Elektronik |
1,500 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±20% | 490 mA | 630mA | Unshielded | 930mOhm Max | - | 7MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
|
|
784774168FIXED IND 68UH 640MA 460MOHM SMD Würth Elektronik |
1,484 |
|
规格书 |
WE-PD2A | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 640 mA | 860mA | Unshielded | 460mOhm Max | - | 10MHz | AEC-Q200 | -40°C ~ 125°C | 10 kHz | - | Surface Mount | 5848 | 0.228" L x 0.205" W (5.80mm x 5.20mm) | 0.191" (4.85mm) |
1mm.jpg)
|
78438323012FIXED IND 1.2UH 1.9A 106MOHM SMD Würth Elektronik |
3,000 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 1.2 µH | ±30% | 1.9 A | 3.8A | Shielded | 106mOhm Max | - | 75MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
784383230082FIXED IND 820NH 2.6A 69 MOHM SMD Würth Elektronik |
3,000 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 820 nH | ±30% | 2.6 A | 4.25A | Shielded | 69mOhm Max | - | 105MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
|
|
78438323082FIXED IND 8.2UH 700MA 743MOHM SM Würth Elektronik |
2,815 |
|
规格书 |
WE-MAIA | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Molded | Iron Alloy | 8.2 µH | ±30% | 700 mA | 1.45A | Shielded | 743mOhm Max | - | 27MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 2510 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.039" (1.00mm) |
