固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447798180FIXED IND 1.8UH 14.5A 4.5MOHM SM Würth Elektronik |
524 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.8 µH | ±30% | 14.5 A | 12.8A | Shielded | 4.5mOhm Max | - | 74MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
7445430FIXED IND 1MH 220MA 3.2OHM SMD Würth Elektronik |
590 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 mH | ±10% | 220 mA | 350mA | Shielded | 3.2Ohm Max | - | 2.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.500" L x 0.394" W (12.70mm x 10.00mm) | 0.205" (5.20mm) |
|
744106FIXED IND 393UH 1.1A 700 MOHM TH Würth Elektronik |
358 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 393 µH | ±20% | 1.1 A | 500mA | Unshielded | 700mOhm Max | - | 2.1MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.689" Dia x 0.315" W (17.50mm x 8.00mm) | - |
|

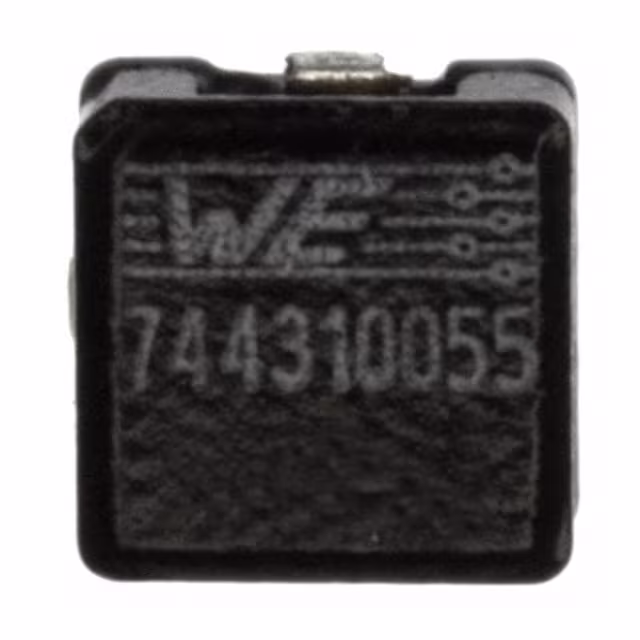

744310055FIXED IND 520NH 14A 3.7 MOHM SMD Würth Elektronik |
3,059 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 520 nH | ±20% | 14 A | 20A | Shielded | 3.7mOhm | - | 140MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|

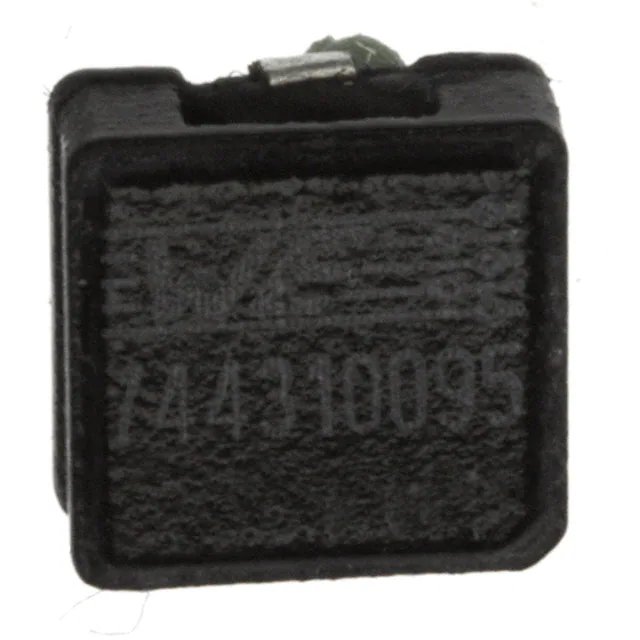

744310095FIXED IND 950NH 11A 6.2 MOHM SMD Würth Elektronik |
173 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 950 nH | ±20% | 11 A | 13A | Shielded | 6.2mOhm | - | 90MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
|
78433291500WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
297 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 15 µH | ±20% | 5.4 A | 9.8A | Shielded | 43.1mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290820WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
199 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 8.2 µH | ±20% | 7.1 A | 13.7A | Shielded | 21.5mOhm Max | - | 32MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290750WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
192 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 7.5 µH | ±20% | 7.8 A | 14.6A | Shielded | 20.35mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290510WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
190 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 5.1 µH | ±20% | 9.8 A | 17A | Shielded | 11.9mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
78433290620WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
188 |
|
规格书 |
WE-CHSA Performance | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 6.2 µH | ±20% | 8.8 A | 16A | Shielded | 15mOhm Max | - | 37MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
