固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
784393440033WE-XHMA SMT POWER INDUCTOR 6030; Würth Elektronik |
290 |
|
规格书 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 330 nH | ±20% | 16.5 A | 42.9A | Shielded | 2.1mOhm | - | 113MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
|
78439344010WE-XHMA SMT POWER INDUCTOR 6030; Würth Elektronik |
275 |
|
规格书 |
WE-XHMA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 1 µH | ±20% | 12 A | 24.95A | Shielded | 5.5mOhm | - | 59MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.262" L x 0.254" W (6.65mm x 6.45mm) | 0.130" (3.30mm) |
|
744103FIXED IND 109UH 1.3A 300 MOHM TH Würth Elektronik |
120 |
|
规格书 |
WE-SI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 109 µH | ±20% | 1.3 A | 1A | Unshielded | 300mOhm Max | - | 9.2MHz | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.591" Dia x 0.315" W (15.00mm x 8.00mm) | - |
|

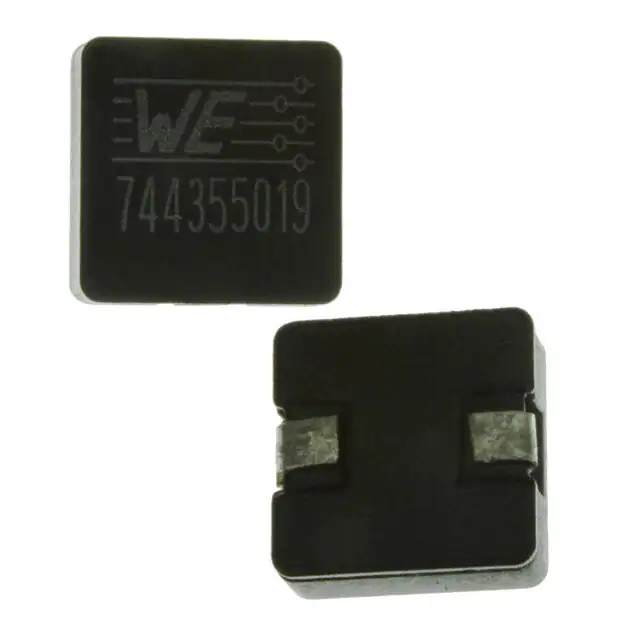

744355019FIXED IND 190NH 29A 0.5 MOHM SMD Würth Elektronik |
395 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 190 nH | ±20% | 29 A | 60A | Shielded | 0.5mOhm | - | 225MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1350 | 0.512" L x 0.504" W (13.00mm x 12.80mm) | 0.197" (5.00mm) |
|
7843321000WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik |
197 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 7.8 A | 10.8A | Shielded | 20.35mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
7843320100FIXED IND 1UH 22.5A 2.4MOHM SMD Würth Elektronik |
178 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 22.5 A | 33.7A | Shielded | 2.4mOhm Max | - | 81MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
7843331000WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik |
156 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 10 µH | ±20% | 6.7 A | 10.7A | Shielded | 25.8mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7843321200FIXED IND 12UH 7.1A 21.5MOHM SMD Würth Elektronik |
139 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 12 µH | ±20% | 7.1 A | 10.3A | Shielded | 21.5mOhm Max | - | 28MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
|
7843331800WE-CHSA SMT HIGH CURRENT INDUCTO Würth Elektronik |
126 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | - | 18 µH | ±20% | 5.1 A | 8.5A | Shielded | 41.1mOhm Max | - | 23MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
7843320680FIXED IND 6.8UH 9.8A 11.9MOHM SM Würth Elektronik |
105 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 9.8 A | 13A | Shielded | 11.9mOhm Max | - | 34MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
