固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|

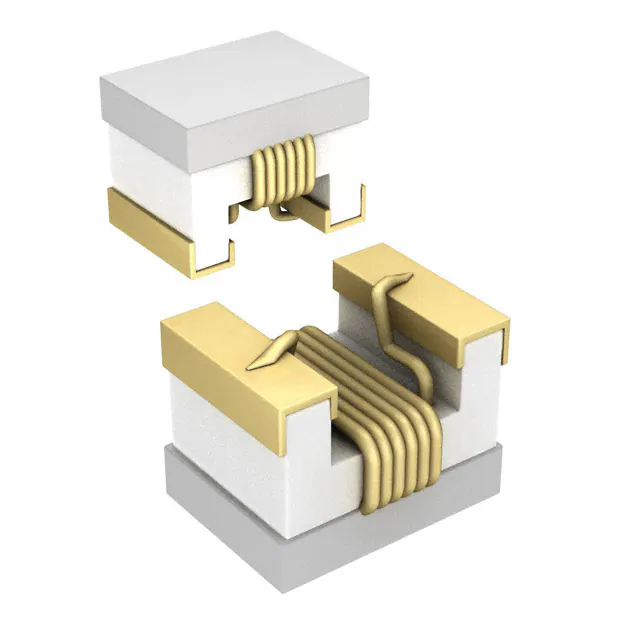

744760310AFIXED IND 1UH 180MA 2.13 OHM SMD Würth Elektronik |
2,003 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±5% | 180 mA | - | Unshielded | 2.13Ohm Max | 35 @ 50MHz | 200MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
.jpg)
|
74479762122FIXED IND 220NH 1.2A 120MOHM SMD Würth Elektronik |
4,008 |
|
规格书 |
WE-PMI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 220 nH | ±20% | 1.2 A | 1.3A | Unshielded | 120mOhm | 7 @ 1MHz | 250MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.022" (0.55mm) |
.jpg)
|
74479773210FIXED IND 1UH 1.2A 180 MOHM SMD Würth Elektronik |
3,367 |
|
规格书 |
WE-PMI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | - | 1 µH | ±20% | 1.2 A | 800mA | Unshielded | 180mOhm | 14 @ 1MHz | 90MHz | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | 0805 (2012 Metric) | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.024" (0.60mm) |
|

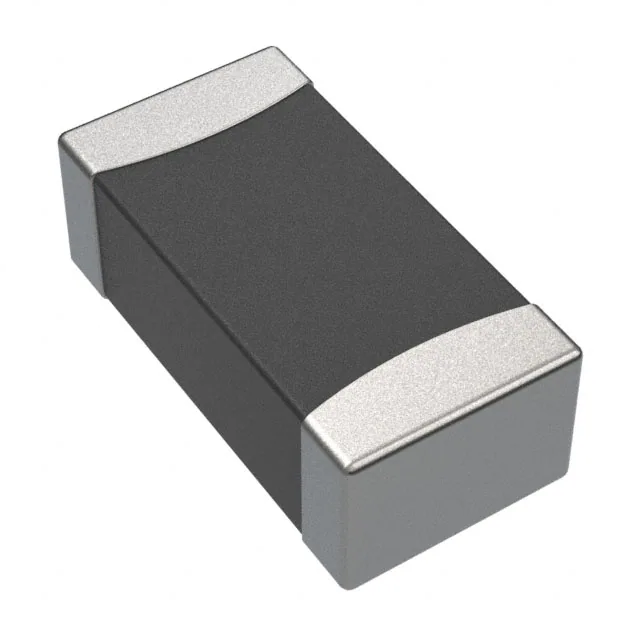

7447918FIXED IND 10UH 25MA 600 MOHM SMD Würth Elektronik |
14,869 |
|
规格书 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 10 µH | ±10% | 25 mA | - | Unshielded | 600mOhm Max | 50 @ 2MHz | 26MHz | - | -55°C ~ 125°C | 2 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
.jpg)
|
7447915FIXED IND 1UH 100MA 400 MOHM SMD Würth Elektronik |
8,116 |
|
规格书 |
WE-MI | 1206 (3216 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 1 µH | ±10% | 100 mA | - | Unshielded | 400mOhm Max | 45 @ 10MHz | 87MHz | - | -55°C ~ 125°C | 10 MHz | - | Surface Mount | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | 0.051" (1.30mm) |
|

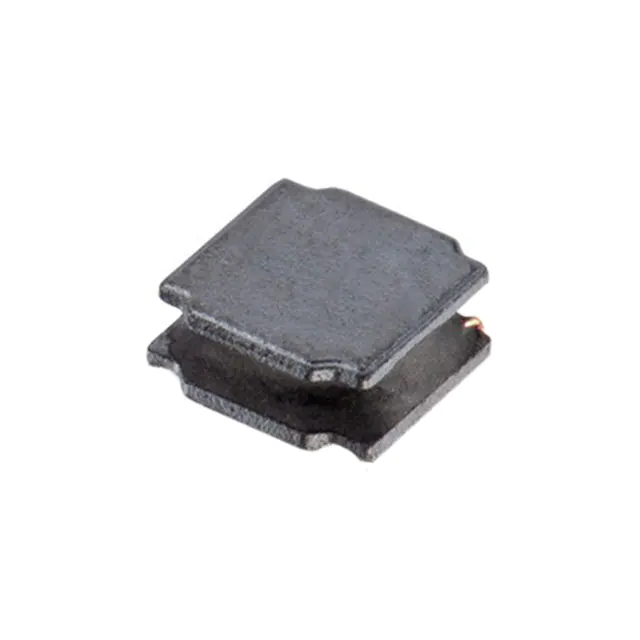

74404020100FIXED IND 10UH 500MA 850MOHM SMD Würth Elektronik |
3,418 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 500 mA | 600mA | Shielded | 850mOhm | - | 39MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|
|
74404020047FIXED IND 4.7UH 730MA 399MOHM SM Würth Elektronik |
2,207 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 0.72 A | 850mA | Shielded | 399mOhm | - | 70MHz | AEC-Q200 | -40°C ~ 125°C | 1 MHz | - | Surface Mount | SMD | 0.079" L x 0.063" W (2.00mm x 1.60mm) | 0.039" (1.00mm) |
|

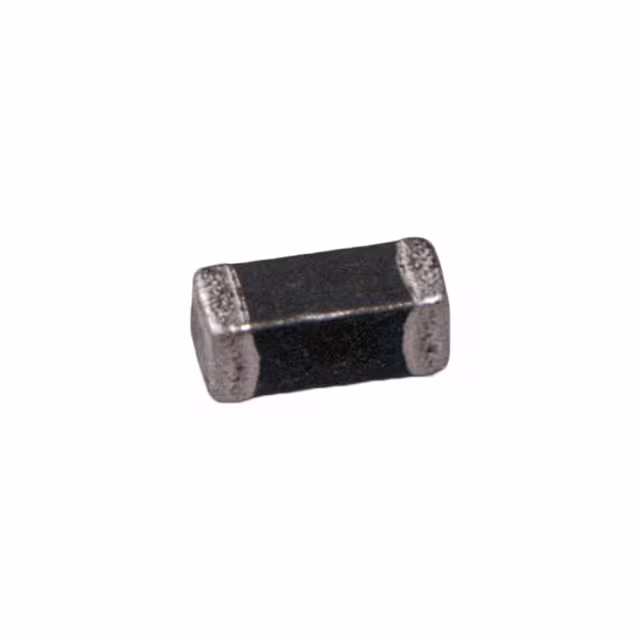

74479032FIXED IND 470NH 200MA 600MOHM SM Würth Elektronik |
5,975 |
|
规格书 |
WE-MI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Multilayer | Nickel Zinc Ferrite (NiZn) | 470 nH | ±10% | 200 mA | - | Unshielded | 600mOhm Max | 25 @ 25MHz | 140MHz | - | -55°C ~ 125°C | 25 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.057" (1.45mm) |
|
74404043100AFIXED IND 10UH 1.76A 89MOHM SMD Würth Elektronik |
21,862 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1.76 A | 1.04A | Shielded | 89mOhm | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
|
|
74404043150AFIXED IND 15UH 1.45A 132MOHM SMD Würth Elektronik |
21,373 |
|
规格书 |
WE-LQS | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.45 A | 840mA | Shielded | 132mOhm | - | 33MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | SMD | 0.157" L x 0.157" W (4.00mm x 4.00mm) | 0.098" (2.50mm) |
