固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

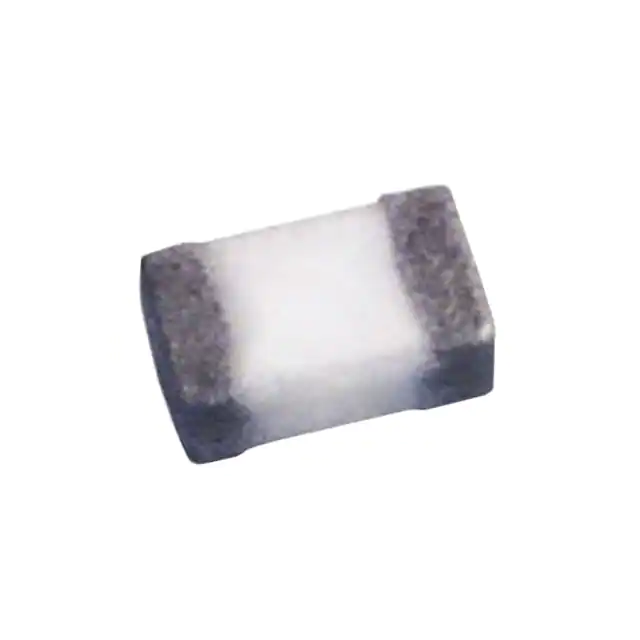

7447860027GWE-MK MULTILAYER CERAMIC SMT IND Würth Elektronik |
4,535 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 2.7 nH | ±0.1nH | 300 mA | - | Unshielded | 100mOhm Max | 10 @ 100MHz | 6GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
7447840115FIXED IND 15NH 300MA 460MOHM SMD Würth Elektronik |
3,642 |
|
规格书 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 460mOhm Max | 8 @ 100MHz | 2.3GHz | - | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.022" (0.55mm) |
|
|
7447860247FIXED IND 470NH 150MA 2.6OHM SMD Würth Elektronik |
1,021 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 470 nH | ±5% | 150 mA | - | Unshielded | 2.6Ohm Max | 8 @ 50MHz | 300MHz | - | -55°C ~ 125°C | 50 MHz | - | Surface Mount | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
744784115AFIXED IND 15NH 300MA 500MOHM SMD Würth Elektronik |
64,079 |
|
规格书 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 300 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.3GHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
|
|
744784056AFIXED IND 5.6NH 300MA 300MOHM SM Würth Elektronik |
19,925 |
|
规格书 |
WE-MK | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 5.6 nH | ±0.3nH | 300 mA | - | Unshielded | 300mOhm Max | 8 @ 100MHz | 4GHz | AEC-Q200 | -40°C ~ 120°C | 100 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.024" (0.60mm) |
.jpg)
|
744786115AFIXED IND 15NH 500MA 500MOHM SMD Würth Elektronik |
32,939 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 15 nH | ±5% | 500 mA | - | Unshielded | 500mOhm Max | 8 @ 100MHz | 2.3GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
744786139AFIXED IND 39NH 400MA 700MOHM SMD Würth Elektronik |
25,727 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 39 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 1.4GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|
|
744786147AFIXED IND 47NH 400MA 700MOHM SMD Würth Elektronik |
11,372 |
|
规格书 |
WE-MK | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Multilayer | Ceramic | 47 nH | ±5% | 400 mA | - | Unshielded | 700mOhm Max | 8 @ 100MHz | 1.2GHz | AEC-Q200 | -55°C ~ 125°C | 100 MHz | - | Surface Mount | 0603 (1608 Metric) | 0.063" L x 0.031" W (1.60mm x 0.80mm) | 0.037" (0.95mm) |
|

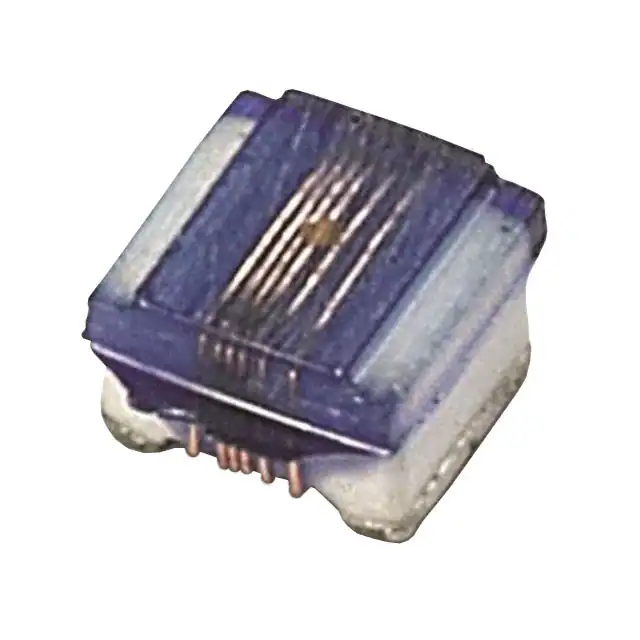

744761020AFIXED IND 2NH 700MA 80 MOHM SMD Würth Elektronik |
5,848 |
|
规格书 |
WE-KI | 0603 (1608 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 2 nH | ±0.2nH | 700 mA | - | Unshielded | 80mOhm Max | 16 @ 250MHz | 6.9GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0603 | 0.063" L x 0.041" W (1.60mm x 1.05mm) | 0.049" (1.25mm) |
|
744760122AFIXED IND 22NH 600MA 100MOHM SMD Würth Elektronik |
2,607 |
|
规格书 |
WE-KI | 0805 (2012 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 22 nH | ±5% | 600 mA | - | Unshielded | 100mOhm Max | 60 @ 500MHz | 3.3GHz | AEC-Q200 | -40°C ~ 125°C | 250 MHz | - | Surface Mount | 0805 | 0.079" L x 0.049" W (2.00mm x 1.25mm) | 0.055" (1.40mm) |
