固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
744760356AFIXED IND 5.6UH 160MA 3 OHM SMD Würth Elektronik |
1,820 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±5% | 160 mA | - | Unshielded | 3Ohm Max | 15 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|
|
744760312AFIXED IND 1.2UH 150MA 2.38OHM SM Würth Elektronik |
1,810 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | ±5% | 150 mA | - | Unshielded | 2.38Ohm Max | 15 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
|

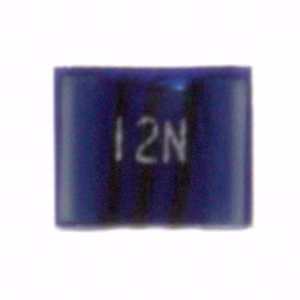

744762112AFIXED IND 12NH 1A 80 MOHM SMD Würth Elektronik |
1,775 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 12 nH | ±5% | 1 A | - | Unshielded | 80mOhm Max | 60 @ 500MHz | 3.6GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762347AFIXED IND 4.7UH 175MA 4.3OHM SMD Würth Elektronik |
1,675 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±5% | 175 mA | - | Unshielded | 4.3Ohm Max | 20 @ 7.96MHz | 45MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762339AFIXED IND 3.9UH 180MA 4 OHM SMD Würth Elektronik |
1,419 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±5% | 180 mA | - | Unshielded | 4Ohm Max | 20 @ 7.96MHz | 50MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762318AFIXED IND 1.8UH 210MA 2.2OHM SMD Würth Elektronik |
1,360 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.8 µH | ±5% | 210 mA | - | Unshielded | 2.2Ohm Max | 20 @ 7.96MHz | 200MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

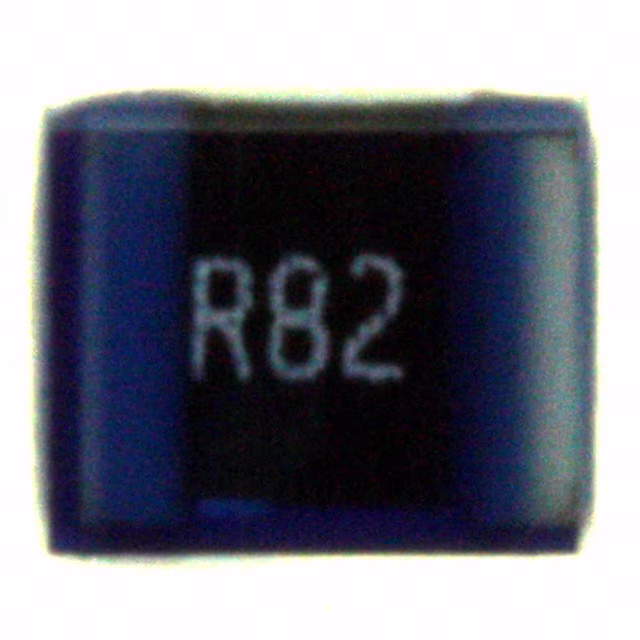

744762282AFIXED IND 820NH 180MA 2.3OHM SMD Würth Elektronik |
1,260 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 820 nH | ±5% | 180 mA | - | Unshielded | 2.3Ohm Max | 45 @ 100MHz | 350MHz | AEC-Q200 | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758315AFIXED IND 1.5UH 630MA 750MOHM SM Würth Elektronik |
1,176 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±5% | 630 mA | - | Unshielded | 750mOhm Max | 20 @ 7.96MHz | 250MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762433AFIXED IND 33UH 85MA 6.5 OHM SMD Würth Elektronik |
1,175 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±5% | 85 mA | - | Unshielded | 6.5Ohm Max | 15 @ 2.52MHz | 20MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 | 0.098" L x 0.079" W (2.50mm x 2.00mm) | 0.071" (1.80mm) |
|
|
744760256AFIXED IND 560NH 450MA 1.1OHM SMD Würth Elektronik |
1,138 |
|
规格书 |
WE-RFI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±5% | 450 mA | - | Unshielded | 1.1Ohm Max | 45 @ 100MHz | 340MHz | - | -40°C ~ 85°C | 25.2 MHz | - | Surface Mount | 0805 | 0.090" L x 0.067" W (2.29mm x 1.70mm) | 0.058" (1.48mm) |
