固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744901118FIXED IND 18NH 100MA 2 OHM SMD Würth Elektronik |
9,285 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 18 nH | ±2% | 100 mA | - | Unshielded | 2Ohm Max | 13 @ 500MHz | 3.1GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|
|
744901122FIXED IND 22NH 90MA 2.6 OHM SMD Würth Elektronik |
8,058 |
|
规格书 |
WE-TCI | 0402 (1005 Metric) | Tape & Reel (TR) | Active | Thin Film | - | 22 nH | ±2% | 90 mA | - | Unshielded | 2.6Ohm Max | 13 @ 500MHz | 2.8GHz | - | -40°C ~ 125°C | 500 MHz | - | Surface Mount | 0402 (1005 Metric) | 0.039" L x 0.020" W (1.00mm x 0.50mm) | 0.016" (0.40mm) |
|

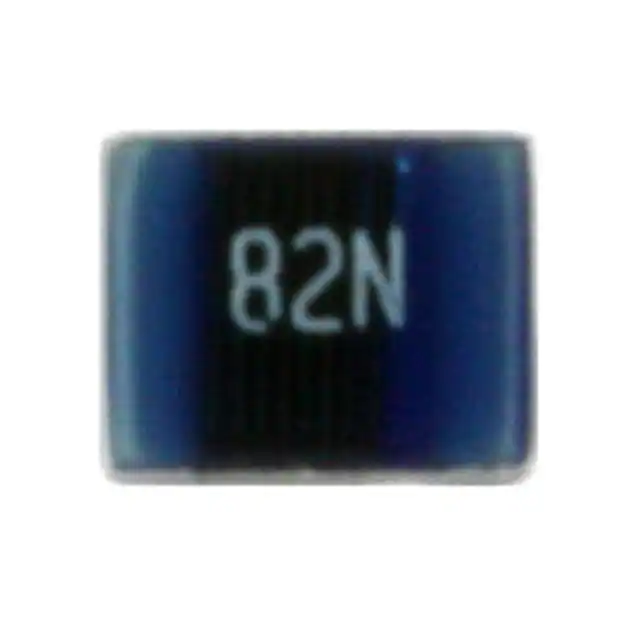

744762182AFIXED IND 82NH 1A 180 MOHM SMD Würth Elektronik |
5,272 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 82 nH | ±5% | 1 A | - | Unshielded | 180mOhm Max | 60 @ 350MHz | 1.1GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762327AFIXED IND 2.7UH 195MA 2.6OHM SMD Würth Elektronik |
3,936 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.7 µH | ±5% | 195 mA | - | Unshielded | 2.6Ohm Max | 20 @ 7.96MHz | 130MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|

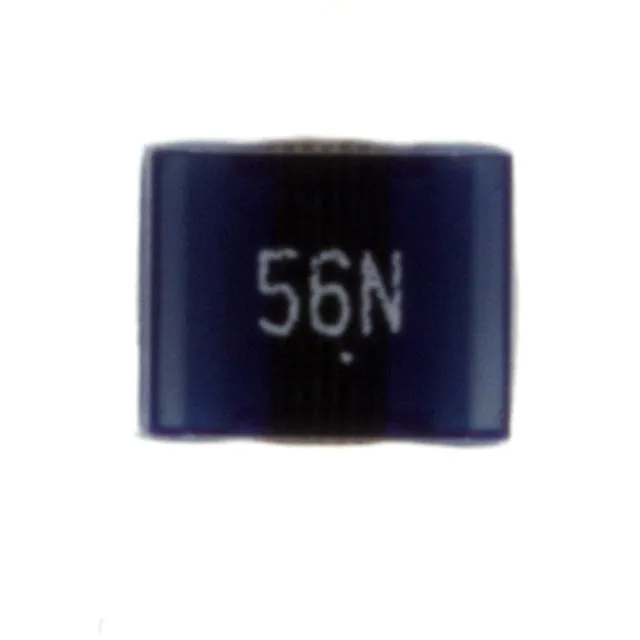

744762156AFIXED IND 56NH 1A 120 MOHM SMD Würth Elektronik |
3,572 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 56 nH | ±5% | 1 A | - | Unshielded | 120mOhm Max | 60 @ 350MHz | 1.35GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744762068AFIXED IND 6.8NH 1A 60 MOHM SMD Würth Elektronik |
2,890 |
|
规格书 |
WE-KI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 6.8 nH | ±5% | 1 A | - | Unshielded | 60mOhm Max | 50 @ 1GHz | 5.5GHz | AEC-Q200 | -40°C ~ 125°C | 100 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762333AFIXED IND 3.3UH 185MA 2.85OHM SM Würth Elektronik |
1,970 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.3 µH | ±5% | 185 mA | - | Unshielded | 2.85Ohm Max | 20 @ 7.96MHz | 80MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762382AFIXED IND 8.2UH 160MA 3.05OHM SM Würth Elektronik |
1,965 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±5% | 160 mA | - | Unshielded | 3.05Ohm Max | 20 @ 7.96MHz | 36MHz | - | -40°C ~ 85°C | 7.96 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
|
744762415AFIXED IND 15UH 130MA 4 OHM SMD Würth Elektronik |
1,950 |
|
规格书 |
WE-RFI | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±5% | 130 mA | - | Unshielded | 4Ohm Max | 15 @ 2.52MHz | 26MHz | - | -40°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
|
744758310AFIXED IND 1UH 370MA 1.7 OHM SMD Würth Elektronik |
1,945 |
|
规格书 |
WE-RFH | 1008 (2520 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ceramic | 1 µH | ±5% | 370 mA | - | Unshielded | 1.7Ohm Max | 33 @ 100MHz | 290MHz | - | -40°C ~ 125°C | 25 MHz | - | Surface Mount | 1008 (2520 Metric) | 0.102" L x 0.083" W (2.60mm x 2.10mm) | 0.075" (1.90mm) |
