固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447798470FIXED IND 4.7UH 9.5A 8.4MOHM SMD Würth Elektronik |
474 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 4.7 µH | ±30% | 9.5 A | 7.6A | Shielded | 8.4mOhm Max | - | 44MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798110FIXED IND 1.1UH 16.5A 3.5MOHM SM Würth Elektronik |
202 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 1.1 µH | ±30% | 16.5 A | 16A | Shielded | 3.5mOhm Max | - | 104MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
|
7447798022FIXED IND 220NH 19A 1.95MOHM SMD Würth Elektronik |
118 |
|
规格书 |
WE-PDF | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 220 nH | ±30% | 19 A | 20A | Shielded | 1.95mOhm Max | - | 337MHz | - | -40°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.402" L x 0.402" W (10.20mm x 10.20mm) | 0.252" (6.40mm) |
|
7447709820FIXED IND 82UH 2.75A 105MOHM SMD Würth Elektronik |
587 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 2.75 A | 3.4A | Shielded | 105mOhm Max | - | 4.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.394" (10.00mm) |
|
7445920FIXED IND 100UH 1.7A 0.207OHM SM Würth Elektronik |
762 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 100 µH | ±20% | 1.7 A | 2.4A | Shielded | 207mOhm Max | - | 5.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.300" (7.62mm) |
|

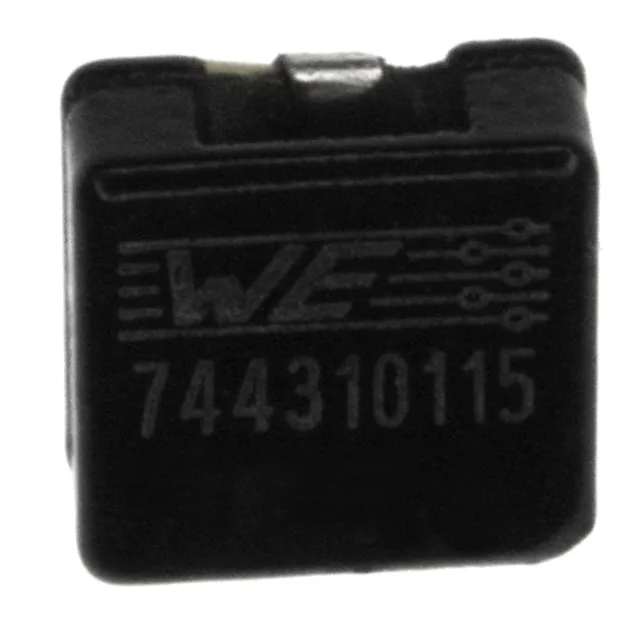

744310115FIXED IND 1.15UH 8.5A 8.6MOHM SM Würth Elektronik |
3,526 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 1.15 µH | ±20% | 8.5 A | 13A | Shielded | 8.6mOhm | - | 84MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
744310024FIXED IND 240NH 18A 1.8 MOHM SMD Würth Elektronik |
1,755 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 240 nH | ±20% | 18 A | 40A | Shielded | 1.8mOhm | - | 220MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
744311022FIXED IND 220NH 21A 1.1 MOHM SMD Würth Elektronik |
887 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 220 nH | ±20% | 21 A | 32A | Shielded | 1.1mOhm | - | 290MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7040 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.157" (4.00mm) |
|

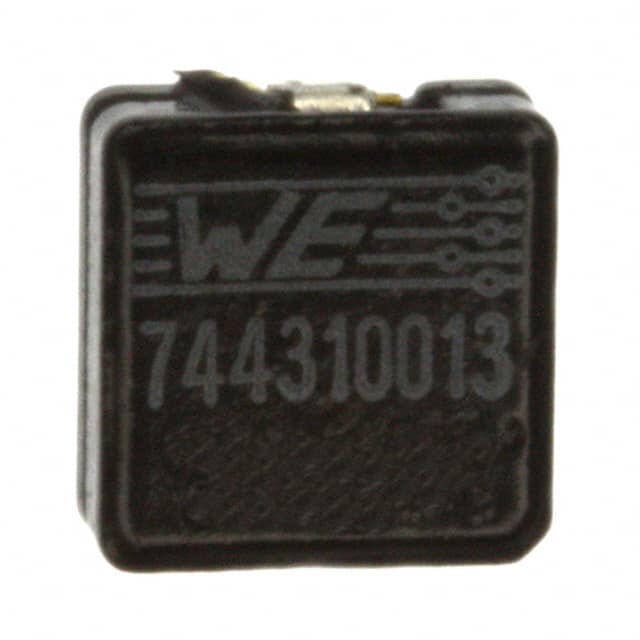

744310013FIXED IND 130NH 22A 0.91MOHM SMD Würth Elektronik |
528 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 130 nH | ±20% | 22 A | 48A | Shielded | 0.91mOhm | - | 400MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7030 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.130" (3.30mm) |
|
744314760FIXED IND 7.6UH 4.2A 30.2MOHM SM Würth Elektronik |
303 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 7.6 µH | ±20% | 4.2 A | 4.8A | Shielded | 30.2mOhm | - | 48MHz | AEC-Q200 | -40°C ~ 150°C | 100 kHz | - | Surface Mount | 7050 | 0.276" L x 0.272" W (7.00mm x 6.90mm) | 0.197" (5.00mm) |
