固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

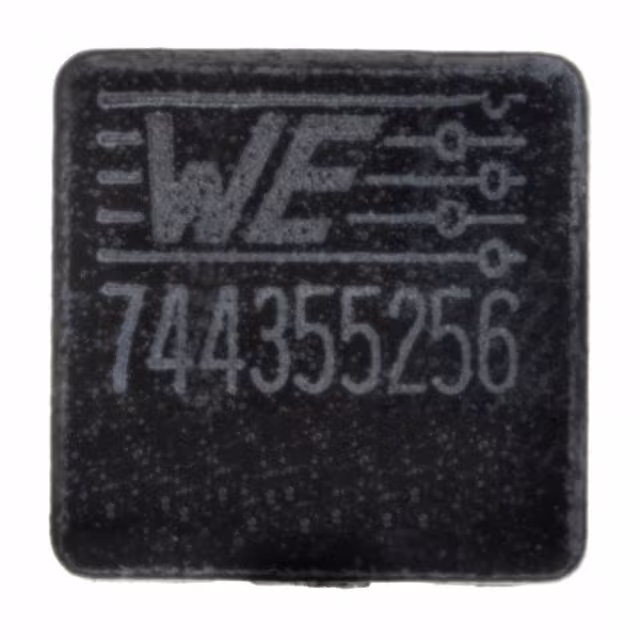

744355256FIXED IND 560NH 20A 1.61MOHM SMD Würth Elektronik |
559 |
|
规格书 |
WE-HCI | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 560 nH | ±20% | 20 A | 30A | Shielded | 1.61mOhm | - | 100MHz | AEC-Q200 | -40°C ~ 155°C | 100 kHz | - | Surface Mount | 1040 | 0.413" L x 0.402" W (10.50mm x 10.20mm) | 0.165" (4.20mm) |
|
7843330390FIXED IND 3.9UH 11.2A 8.7MOHM SM Würth Elektronik |
437 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 11.2 A | 17.8A | Shielded | 8.7mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1011 | 0.417" L x 0.417" W (10.60mm x 10.60mm) | 0.445" (11.30mm) |
|
|
78433490056WE-CHSA PERFORMANCE SMD HIGH CUR Würth Elektronik |
340 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 560 nH | ±20% | 15.6 A | 40.5A | Shielded | 4.1mOhm Max | - | 184MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
74458220FIXED IND 220UH 1.2A 380MOHM SMD Würth Elektronik |
461 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 1.2 A | 2.4A | Unshielded | 380mOhm Max | - | 3.5MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.730" L x 0.600" W (18.54mm x 15.24mm) | 0.280" (7.11mm) |
|
|
7843320820FIXED IND 8.2UH 8.8A 15MOHM SMD Würth Elektronik |
110 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 8.2 µH | ±20% | 8.8 A | 12.1A | Shielded | 15mOhm Max | - | 30MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 1212 | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.474" (12.05mm) |
|
74437377047FIXED IND 4.7UH 7.5A 0.015OHM SM Würth Elektronik |
1,816 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 4.7 µH | ±20% | 7.5 A | 25.1A | Shielded | 15mOhm Max | - | 13MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
7847709101FIXED IND 100UH 2.2A 120MOHM SMD Würth Elektronik |
1,103 |
|
规格书 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 100 µH | ±20% | 2.2 A | 2.4A | Shielded | 120mOhm Max | - | 4.7MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
|
744373770047FIXED IND 470NH 19A 0.0016OHM SM Würth Elektronik |
670 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 19 A | 40.2A | Shielded | 1.6mOhm Max | - | 77MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
|
|
7847709220FIXED IND 22UH 4.3A 44 MOHM SMD Würth Elektronik |
653 |
|
规格书 |
WE-PDA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Nickel Zinc Ferrite (NiZn) | 22 µH | ±20% | 4.3 A | 5A | Shielded | 44mOhm Max | - | 11MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1212 | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.406" (10.30mm) |
|
|
74437377010FIXED IND 1UH 15A 0.0035OHM SMD Würth Elektronik |
518 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1 µH | ±20% | 15 A | 38A | Shielded | 3.5mOhm Max | - | 41MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.531" L x 0.496" W (13.50mm x 12.60mm) | 0.138" (3.50mm) |
