固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74437336015FIXED IND 1.5UH 5.6A 0.025OHM SM Würth Elektronik |
1,903 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.5 µH | ±20% | 5.6 A | 14.2A | Shielded | 25mOhm Max | - | 45MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
|
74437336012FIXED IND 1.2UH 6.5A 0.016OHM SM Würth Elektronik |
1,526 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 1.2 µH | ±20% | 6.5 A | 13.9A | Shielded | 16mOhm Max | - | 50MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
7843340470FIXED IND 4.7UH 5A 28.9MOHM SMD Würth Elektronik |
510 |
|
规格书 |
WE-CHSA | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 5 A | 9.6A | Shielded | 28.9mOhm Max | - | 50MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | 8090 | 0.319" L x 0.319" W (8.10mm x 8.10mm) | 0.366" (9.30mm) |
|
|
744373360047FIXED IND 470NH 9.2A 0.0074OHM Würth Elektronik |
440 |
|
规格书 |
WE-LHMI | 2-SMD | Tape & Reel (TR) | Active | Molded | Iron Powder | 470 nH | ±20% | 9.2 A | 21.5A | Shielded | 7.4mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 5030 | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.118" (3.00mm) |
|
7687714681FIXED IND 680UH 550MA 2.25OHM SM Würth Elektronik |
267 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 680 µH | ±20% | 550 mA | 610mA | Shielded | 2.25Ohm Max | - | 2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|
|
7687714222FIXED IND 2.2MH 260MA 6.5OHM SMD Würth Elektronik |
230 |
|
规格书 |
WE-PD HV | Nonstandard | Tape & Reel (TR) | Active | Wirewound | - | 2.2 mH | ±20% | 260 mA | 370mA | Shielded | 6.5Ohm Max | - | 1.2MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.236" (6.00mm) |
|

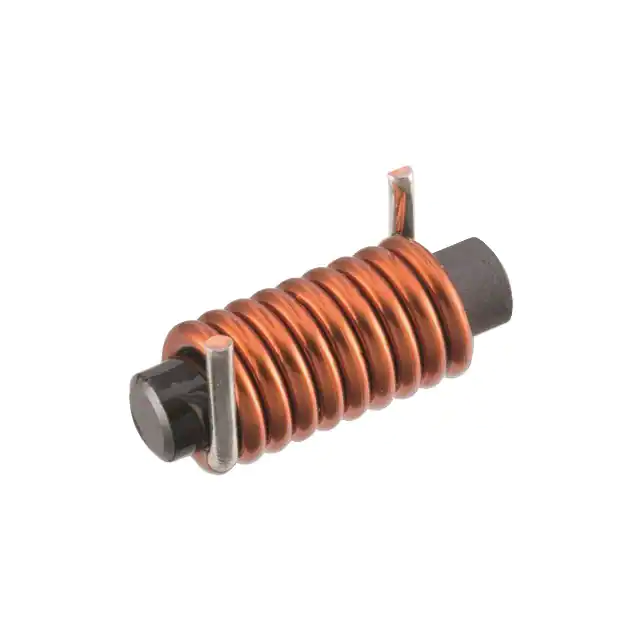

7847111020WE-RCIT ROD CORE INDUCTOR THT 2. Würth Elektronik |
602 |
|
规格书 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Bulk | Active | Wirewound | - | 2 µH | ±25% | 7 A | 18A | Unshielded | 6.5mOhm | - | 180MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.232" Dia x 0.539" L (5.90mm x 13.70mm) | - |
|
74455247FIXED IND 470UH 160MA 6.8OHM SMD Würth Elektronik |
1,620 |
|
规格书 |
WE-PD4 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 160 mA | 150mA | Unshielded | 6.8Ohm Max | - | 3MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
7847131100WE-RCIT ROD CORE INDUCTOR THT 10 Würth Elektronik |
582 |
|
规格书 |
WE-RCIT | Radial, Horizontal Cylinder (Open) | Tray | Active | Wirewound | - | 10 µH | ±25% | 10 A | 13A | Unshielded | 8.8mOhm | - | 50MHz | AEC-Q200 | -40°C ~ 150°C | 10 kHz | - | Through Hole | Radial | 0.339" Dia x 1.217" L (8.60mm x 30.90mm) | - |
|

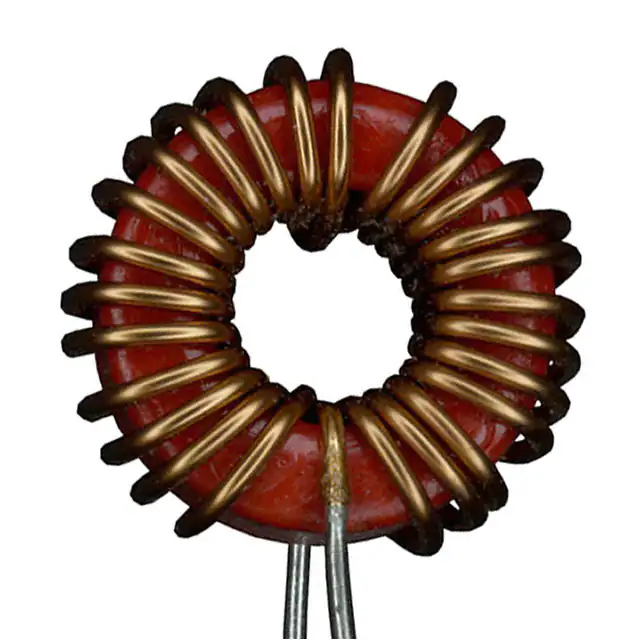

7447015FIXED IND 35UH 3A 25 MOHM TH Würth Elektronik |
193 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 35 µH | ±20% | 3 A | - | Unshielded | 25mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.728" Dia x 0.335" W (18.50mm x 8.50mm) | - |
