固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7443330082FIXED IND 820NH 20A 2.65MOHM SMD Würth Elektronik |
560 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 820 nH | ±20% | 20 A | 36A | Shielded | 2.65mOhm Max | - | 120MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|

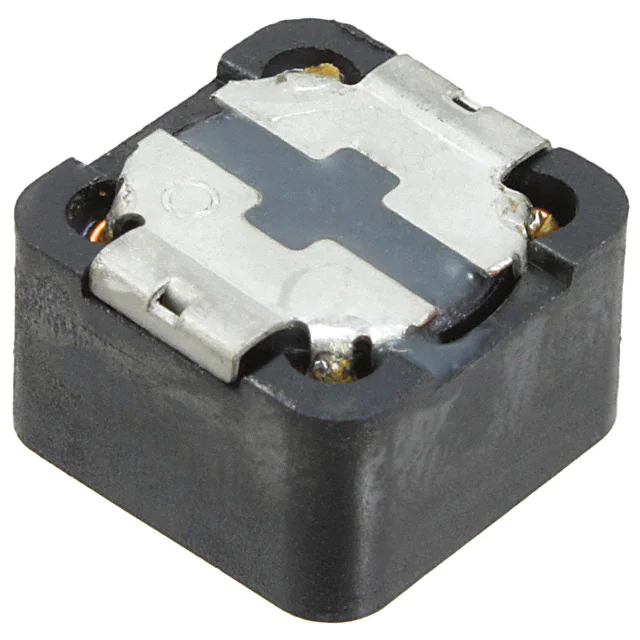

74477009FIXED IND 470NH 23.5A 3 MOHM SMD Würth Elektronik |
512 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 nH | -25%, +20% | 23.5 A | 26.4A | Shielded | 3mOhm Max | - | 120MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744770015FIXED IND 1.5UH 10A 6 MOHM SMD Würth Elektronik |
497 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 10 A | 12A | Shielded | 6mOhm Max | - | 42MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74477008FIXED IND 750NH 19.8A 4 MOHM SMD Würth Elektronik |
473 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 750 nH | -25%, +20% | 19.8 A | 21A | Shielded | 4mOhm Max | - | 110MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

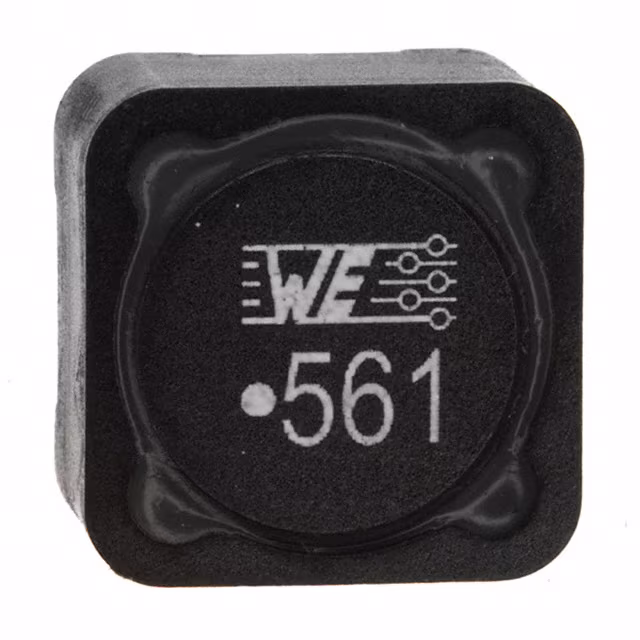

744770256FIXED IND 560UH 800MA 1.07OHM SM Würth Elektronik |
428 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 560 µH | ±20% | 800 mA | 900mA | Shielded | 1.07Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
|
7443330068FIXED IND 680NH 20A 2.65MOHM SMD Würth Elektronik |
386 |
|
规格书 |
WE-HCC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 680 nH | ±20% | 20 A | 38A | Shielded | 2.65mOhm Max | - | 140MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.429" L x 0.394" W (10.90mm x 10.00mm) | 0.382" (9.70mm) |
|
|
74477007FIXED IND 7.6UH 7.4A 20 MOHM SMD Würth Elektronik |
361 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 7.6 µH | -20%, +40% | 7.4 A | 8A | Shielded | 20mOhm Max | - | 21.3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74477005FIXED IND 5.6UH 8A 17 MOHM SMD Würth Elektronik |
348 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | -20%, +40% | 8 A | 8.2A | Shielded | 17mOhm Max | - | 24MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

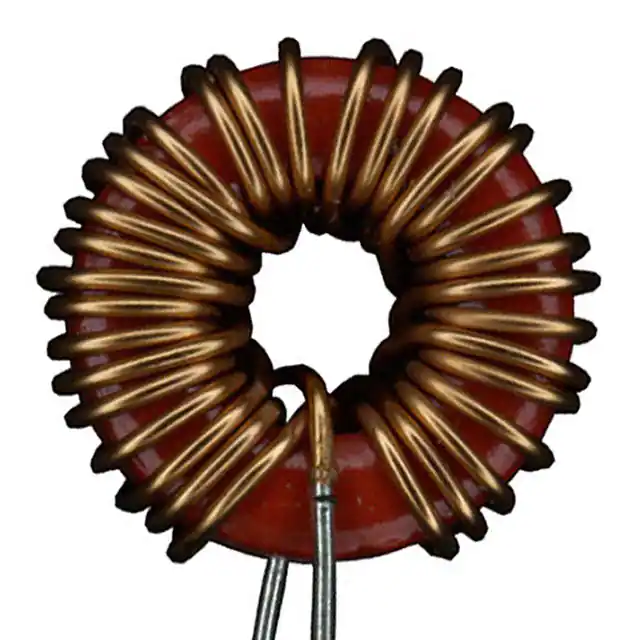

7447034FIXED IND 43UH 1A 60 MOHM TH Würth Elektronik |
243 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Bulk | Active | Toroidal | Ferrite | 43 µH | ±20% | 1 A | - | Unshielded | 60mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.512" Dia x 0.256" W (13.00mm x 6.50mm) | - |
|

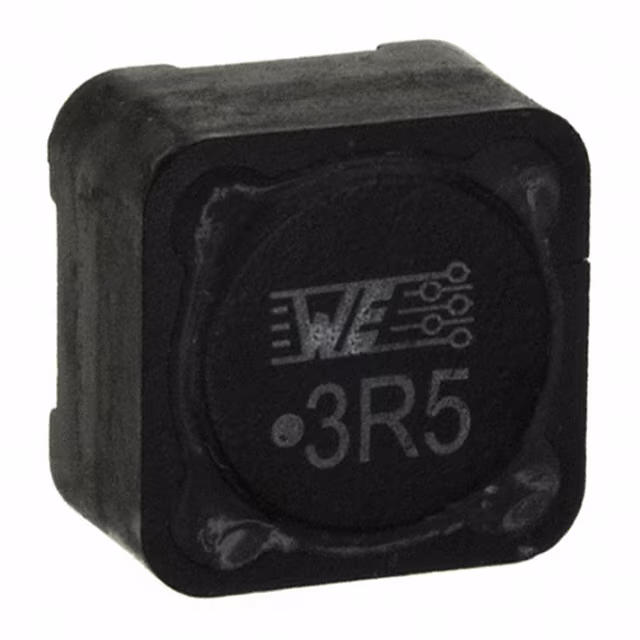

74477003FIXED IND 3.5UH 8.9A 14 MOHM SMD Würth Elektronik |
206 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3.5 µH | -20%, +40% | 8.9 A | 9.6A | Shielded | 14mOhm Max | - | 37.5MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
