固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744309012FIXED IND 120NH 47.5A 0.000165OH Würth Elektronik |
263 |
|
规格书 |
WE-HCM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Manganese Zinc Ferrite (MnZn) | 120 nH | ±20% | 47.5 A | 125A | Shielded | 0.165mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | 1390 | 0.551" L x 0.512" W (14.00mm x 13.00mm) | 0.374" (9.50mm) |
|
744776333FIXED IND 3MH 350MA 7 OHM SMD Würth Elektronik |
979 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 3 mH | ±10% | 350 mA | 400mA | Unshielded | 7Ohm Max | - | 900kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.402" L x 0.354" W (10.20mm x 9.00mm) | 0.272" (6.90mm) |
|

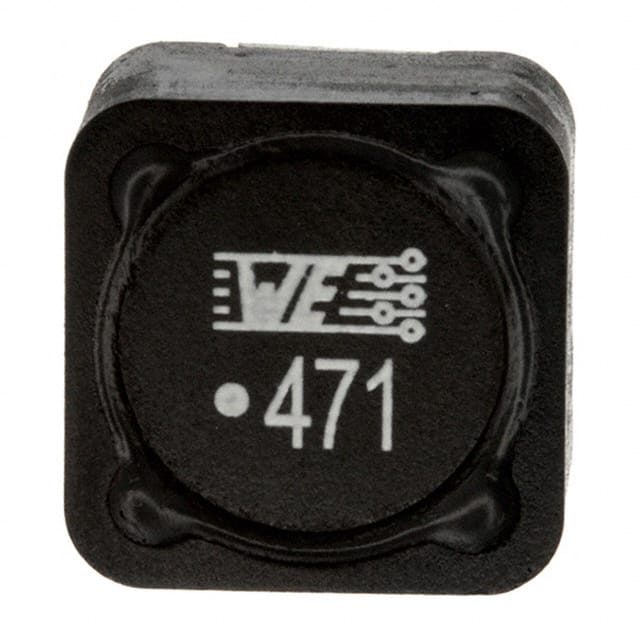

744770247FIXED IND 470UH 900MA 980MOHM SM Würth Elektronik |
6,583 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 900 mA | 900mA | Shielded | 980mOhm Max | - | 2.6MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
744770215FIXED IND 150UH 1.8A 280MOHM SMD Würth Elektronik |
2,342 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 150 µH | ±20% | 1.8 A | 1.8A | Shielded | 280mOhm Max | - | 3MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

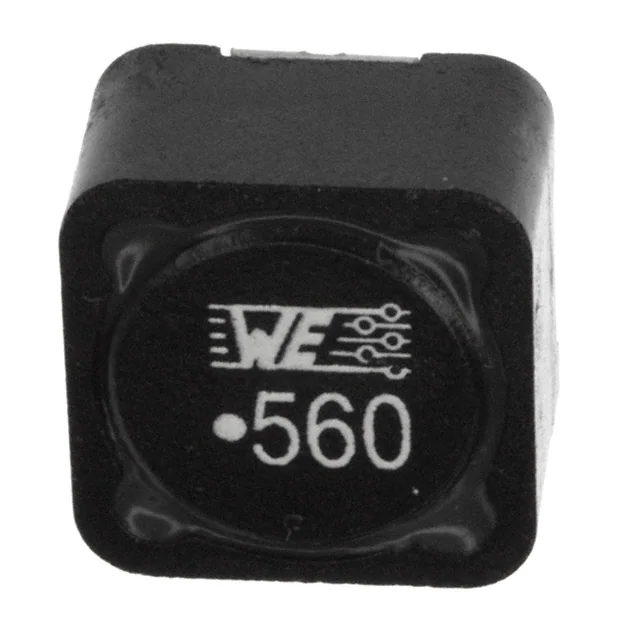

744770156FIXED IND 56UH 2.4A 110 MOHM SMD Würth Elektronik |
2,112 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 2.4 A | 2.9A | Shielded | 110mOhm Max | - | 7.1MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|
74477002FIXED IND 2.4UH 10.1A 12MOHM SMD Würth Elektronik |
1,511 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.4 µH | -20%, +40% | 10.1 A | 14.3A | Shielded | 12mOhm Max | - | 41MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

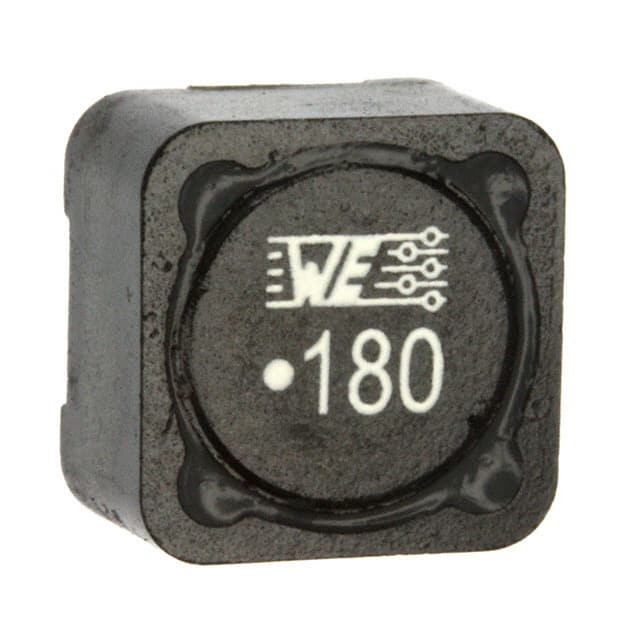

744770118FIXED IND 18UH 4.2A 39 MOHM SMD Würth Elektronik |
1,226 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 4.2 A | 5.4A | Shielded | 39mOhm Max | - | 13.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

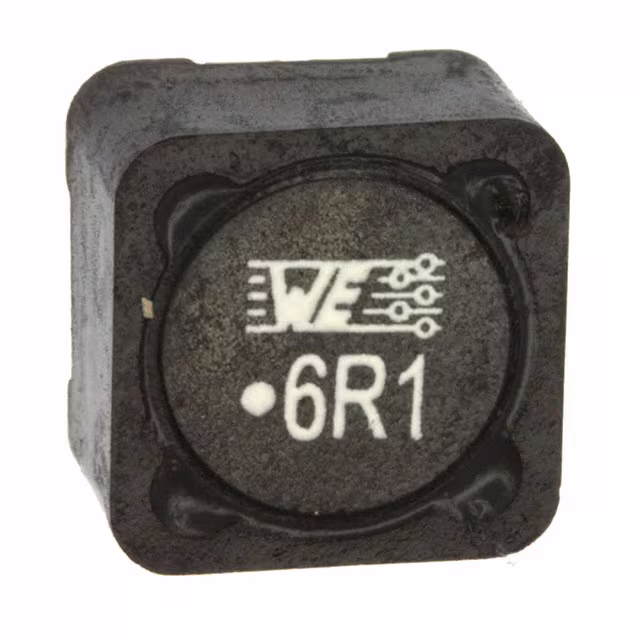

74477006FIXED IND 6.1UH 7.6A 18 MOHM SMD Würth Elektronik |
953 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.1 µH | -20%, +40% | 7.6 A | 8.6A | Shielded | 18mOhm Max | - | 25MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
|

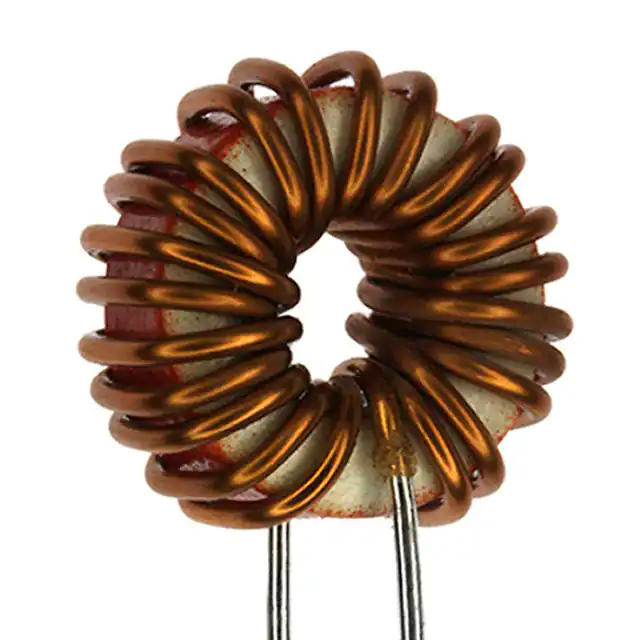

7447016FIXED IND 29UH 5A 15 MOHM TH Würth Elektronik |
667 |
|
规格书 |
WE-FI | Radial, Vertical (Open) | Tray | Active | Toroidal | Ferrite | 29 µH | ±20% | 5 A | - | Unshielded | 15mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | - | 0.748" Dia x 0.413" W (19.00mm x 10.50mm) | - |
|

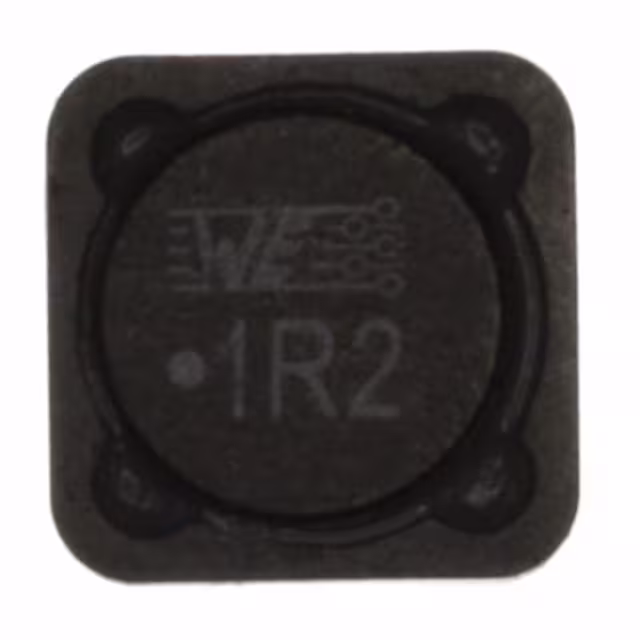

74477001FIXED IND 1.2UH 12A 7 MOHM SMD Würth Elektronik |
621 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1.2 µH | -20%, +40% | 12 A | 16.6A | Shielded | 7mOhm Max | - | 45MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.315" (8.00mm) |
