固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7447715330FIXED IND 33UH 2.3A 85 MOHM SMD Würth Elektronik |
5,713 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 2.3 A | 2.5A | Shielded | 85mOhm Max | - | 13MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
744771127FIXED IND 27UH 2.97A 51 MOHM SMD Würth Elektronik |
4,759 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±20% | 2.97 A | 3.55A | Shielded | 51mOhm Max | - | 12MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

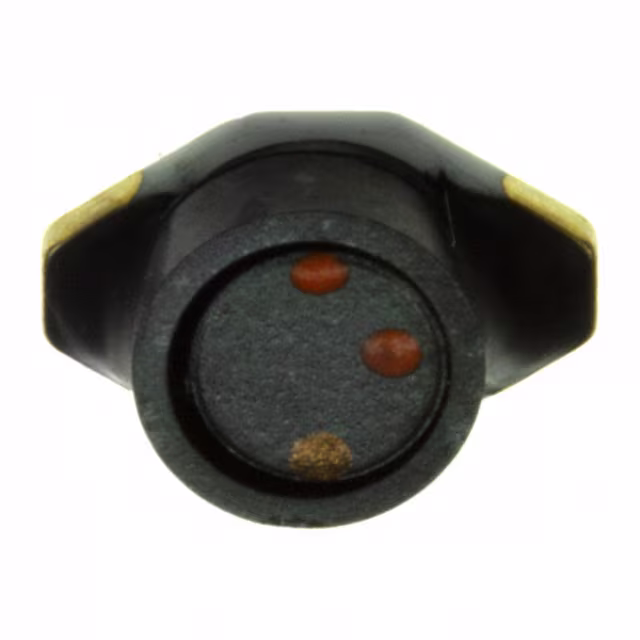

74451033FIXED IND 3.3UH 1.6A 0.055OHM SM Würth Elektronik |
4,406 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 3.3 µH | ±20% | 1.6 A | 770mA | Shielded | 55mOhm Max | - | 60MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
|
|
7447715180FIXED IND 18UH 3.2A 51 MOHM SMD Würth Elektronik |
3,328 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±20% | 3.2 A | 3.2A | Shielded | 51mOhm Max | - | 17MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
|
744771182FIXED IND 82UH 1.65A 140MOHM SMD Würth Elektronik |
2,489 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.65 A | 1.88A | Shielded | 140mOhm Max | - | 7.2MHz | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.236" (6.00mm) |
|

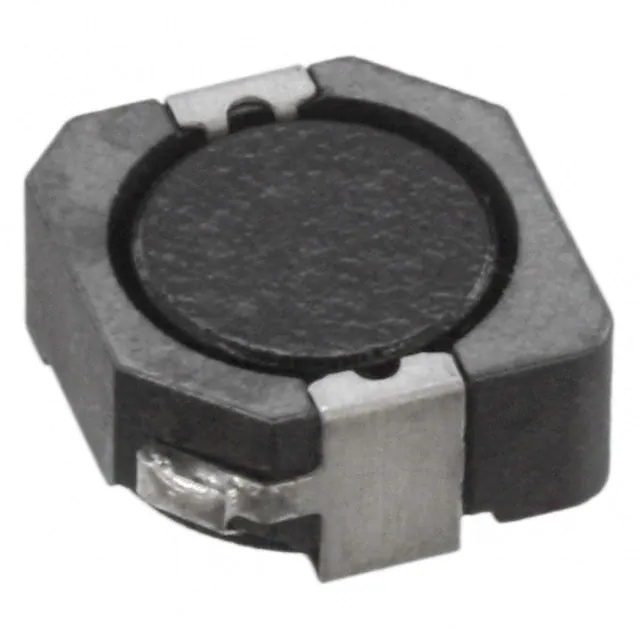

7447714471FIXED IND 470UH 600MA 1.1OHM SMD Würth Elektronik |
2,486 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 600 mA | 820mA | Shielded | 1.1Ohm Max | - | 2.5MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|
744775347FIXED IND 4.7MH 200MA 13.8OHM SM Würth Elektronik |
1,927 |
|
规格书 |
WE-ASI | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 mH | ±10% | 200 mA | 100mA | Unshielded | 13.8Ohm Max | - | 700kHz | - | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.315" L x 0.276" W (8.00mm x 7.00mm) | 0.217" (5.50mm) |
|
|
7447715910FIXED IND 1UH 8.5A 7 MOHM SMD Würth Elektronik |
1,780 |
|
规格书 |
WE-PD | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 8.5 A | 13.9A | Shielded | 7mOhm Max | - | 98MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.472" L x 0.472" W (12.00mm x 12.00mm) | 0.177" (4.50mm) |
|
7447714820FIXED IND 82UH 1.6A 176 MOHM SMD Würth Elektronik |
1,430 |
|
规格书 |
WE-PD Performance | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±20% | 1.6 A | 1.9A | Shielded | 176mOhm Max | - | 6.6MHz | AEC-Q200 | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.197" (5.00mm) |
|

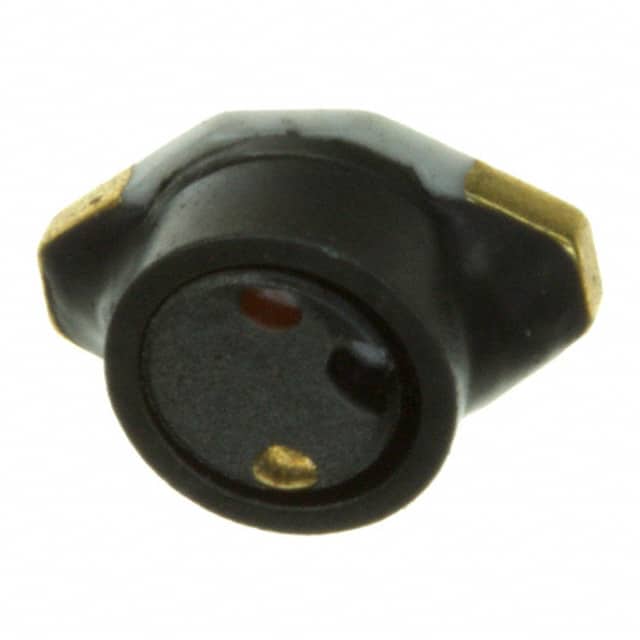

7445101FIXED IND 1UH 3A 0.04OHM SMD Würth Elektronik |
1,335 |
|
规格书 |
WE-PD3 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | - | 1 µH | ±20% | 3 A | 1.62A | Shielded | 40mOhm Max | - | 83MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.260" L x 0.175" W (6.60mm x 4.45mm) | 0.115" (2.92mm) |
