固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
74408943560FIXED IND 56UH 700MA 481MOHM SMD Würth Elektronik |
2,288 |
|
规格书 |
WE-SPC | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 56 µH | ±20% | 700 mA | 900mA | Shielded | 481mOhm Max | - | 11MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.161" (4.10mm) |
 0.118 Height.jpg)
|
74408941100FIXED IND 10UH 900MA 248MOHM SMD Würth Elektronik |
1,964 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 900 mA | 1.6A | Shielded | 248mOhm Max | - | 33MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942470FIXED IND 47UH 660MA 608MOHM SMD Würth Elektronik |
1,440 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 47 µH | ±20% | 660 mA | 1A | Shielded | 608mOhm Max | - | 10MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|

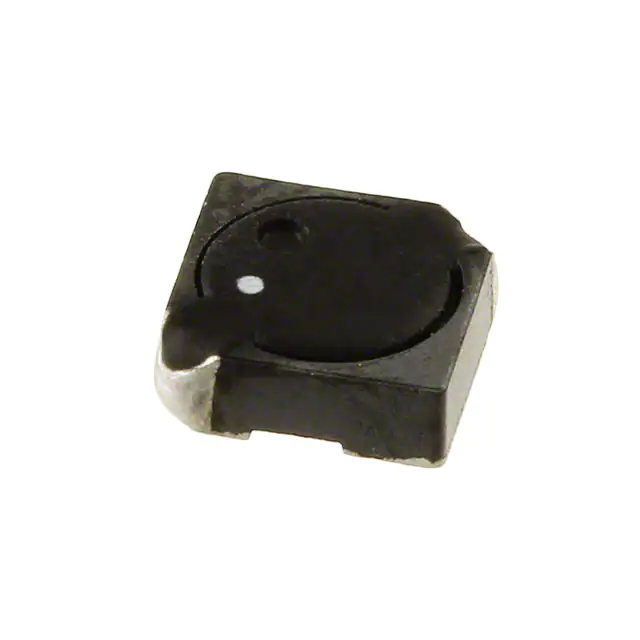

74408941022FIXED IND 2.2UH 2.1A 66.1MOHM SM Würth Elektronik |
1,043 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 2.1 A | 3.6A | Shielded | 66.1mOhm Max | - | 65MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942047FIXED IND 4.7UH 1.55A 103MOHM SM Würth Elektronik |
1,043 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.55 A | 2.9A | Shielded | 103mOhm Max | - | 38MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74408941010FIXED IND 1UH 3A 29.5 MOHM SMD Würth Elektronik |
993 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 3 A | 5.4A | Shielded | 29.5mOhm Max | - | 100MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
|
74408942068FIXED IND 6.8UH 1.45A 130MOHM SM Würth Elektronik |
990 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 1.45 A | 2.4A | Shielded | 130mOhm Max | - | 30MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74408942150FIXED IND 15UH 1.1A 245 MOHM SMD Würth Elektronik |
791 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 1.1 A | 1.6A | Shielded | 245mOhm Max | - | 19MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.118" (3.00mm) |
|
|
74408941220FIXED IND 22UH 650MA 549MOHM SMD Würth Elektronik |
449 |
|
规格书 |
WE-SPC | 1919 (4848 Metric) | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 650 mA | 1.1A | Shielded | 549mOhm Max | - | 20MHz | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.189" L x 0.189" W (4.80mm x 4.80mm) | 0.083" (2.10mm) |
|
78438356015HTWE-MAIA SMT POWER INDUCTOR Würth Elektronik |
405 |
|
规格书 |
WE-MAIA | Nonstandard | Tape & Reel (TR) | Active | - | Iron Alloy | 1.5 µH | ±20% | 5.5 A | 6.6A | Shielded | 20.7mOhm Max | - | 40MHz | AEC-Q200 | -55°C ~ 150°C | 100 kHz | - | Surface Mount | - | 0.161" L x 0.161" W (4.10mm x 4.10mm) | 0.083" (2.10mm) |
