固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AX97-20221FIXED IND 220UH 400MA 1.3OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 220 µH | ±20% | 400 mA | - | Unshielded | 1.3Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20330FIXED IND 33UH 1.1A 210 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±20% | 1.1 A | - | Unshielded | 210mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20331FIXED IND 330UH 300MA 2 OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 300 mA | - | Unshielded | 2Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20471FIXED IND 470UH 200MA 2.5OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 200 mA | - | Unshielded | 2.5Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
|
AX97-20681FIXED IND 680UH 100MA 3.5OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 680 µH | ±20% | 100 mA | - | Unshielded | 3.5Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.138" (3.50mm) |
|
AX97-30150FIXED IND 15UH 3.7A 50 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 3.7 A | - | Unshielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-301R5FIXED IND 1.5UH 7.9A 10 MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Box | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 7.9 A | - | Unshielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|

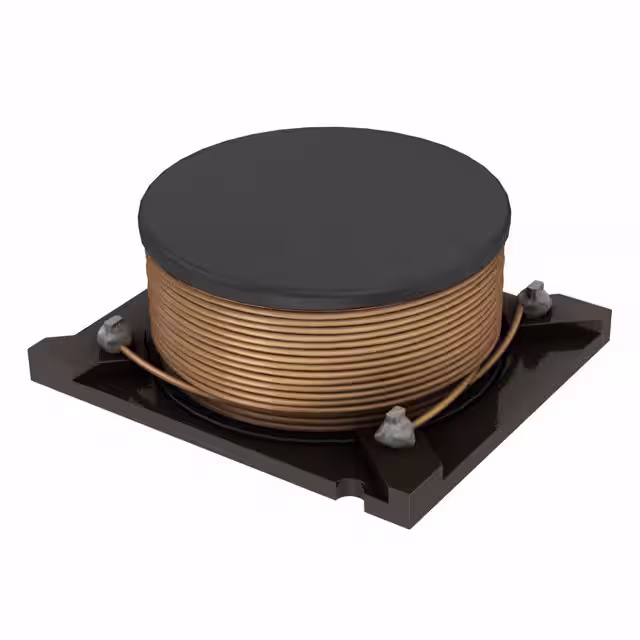

AX97-40102FIXED IND 1MH 650MA 1.45 OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 650 mA | - | Unshielded | 1.45Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.634" L x 0.622" W (16.10mm x 15.80mm) | 0.284" (7.21mm) |
|
|
AX97-30101FIXED IND 100UH 1.5A 300MOHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 1.5 A | - | Unshielded | 300mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
|
|
AX97-30102FIXED IND 1MH 300MA 3.15 OHM SMD Triad Magnetics |
0 |
|
规格书 |
AX97 | Nonstandard | Bulk | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±20% | 300 mA | - | Unshielded | 3.15Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.530" L x 0.370" W (13.46mm x 9.40mm) | 0.232" (5.90mm) |
