固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FIT106-4FIXED IND 116UH 6.8A 48.5MOHM TH Triad Magnetics |
49 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 116 µH | - | 6.8 A | - | Unshielded | 48.5mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|

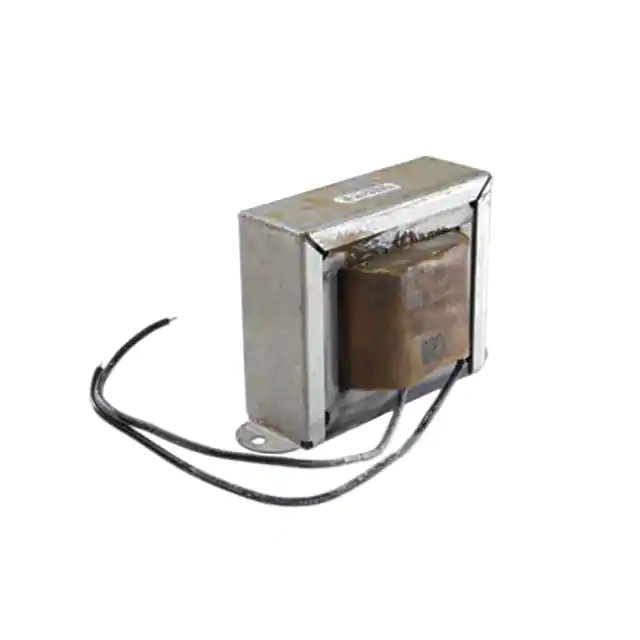

C-8XFIXED IND 7H 75MA 240 OHM CHASS Triad Magnetics |
15 |
|
规格书 |
C | Nonstandard | Bulk | Active | Wirewound | - | 7 H | -20%, +50% | 75 mA | - | Unshielded | 240Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.312" L x 1.750" W (84.12mm x 44.45mm) | 1.940" (49.28mm) |
|

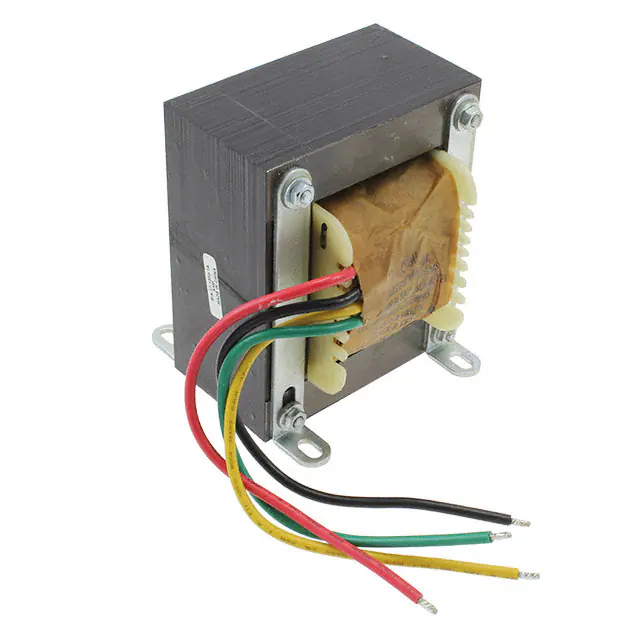

C-49UFIXED IND 32MH 5A 28 MOHM CHASS Triad Magnetics |
9 |
|
规格书 |
C | Nonstandard | Bulk | Active | Wirewound | - | 32 mH | -20%, +50% | 5 A | - | Unshielded | 28mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 3.500" L x 3.625" W (88.90mm x 92.07mm) | 4.250" (107.95mm) |
|

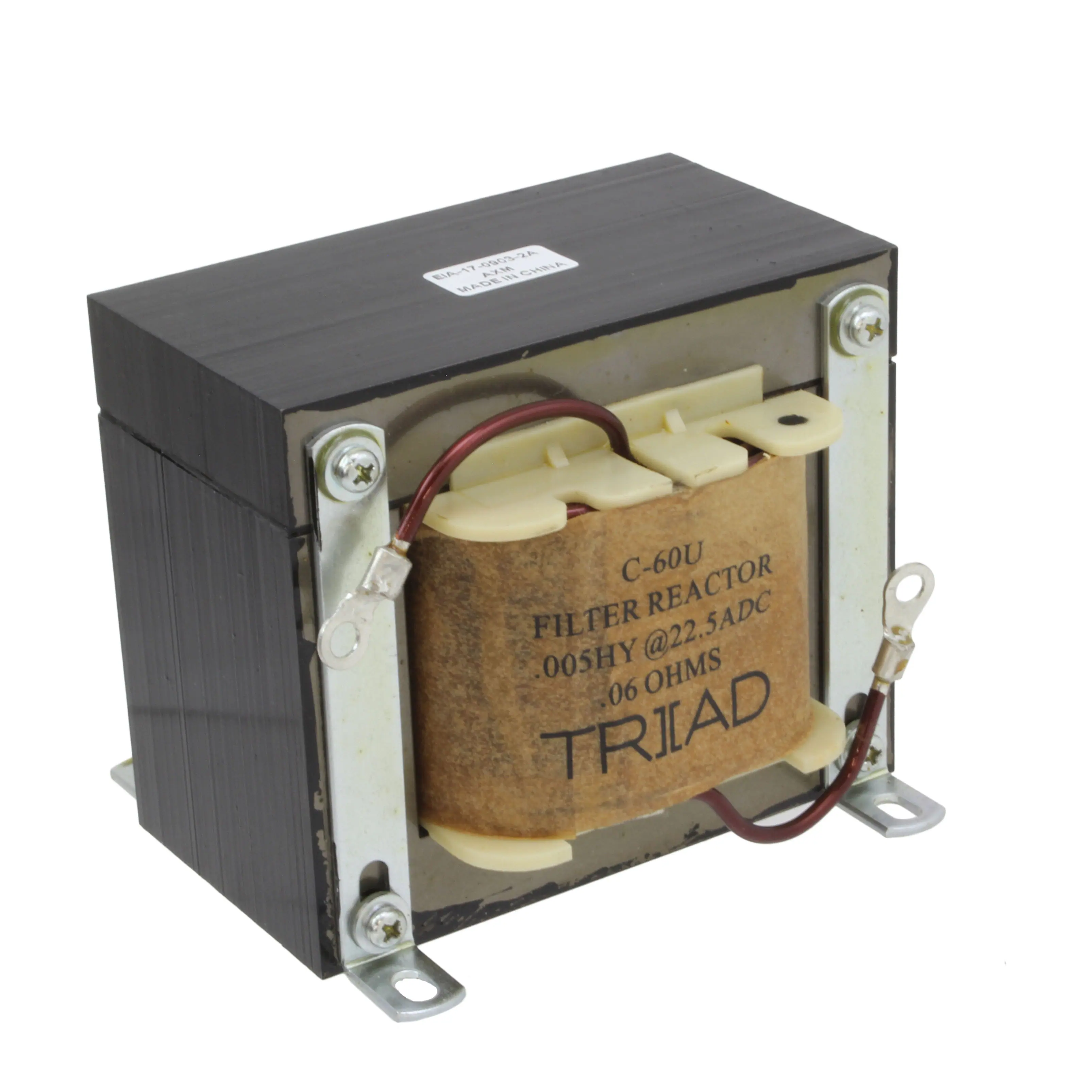

C-60UFIXED IND 5MH 22.5A 60 MOHM CHAS Triad Magnetics |
3 |
|
规格书 |
C | Nonstandard | Bulk | Active | Wirewound | - | 5 mH | -20%, +50% | 22.5 A | - | Unshielded | 60mOhm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 4.500" L x 4.187" W (114.30mm x 106.35mm) | 3.750" (95.25mm) |
|
FIT50-4FIXED IND 21.65UH 4.8A 29.2 MOHM Triad Magnetics |
63 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 21.65 µH | - | 4.8 A | - | Unshielded | 29.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
FIT68-6FIXED IND 24.31UH 6.8A 20.2 MOHM Triad Magnetics |
13 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 24.31 µH | - | 6.8 A | - | Unshielded | 20.2mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.875" L x 0.475" W (22.22mm x 12.07mm) | 0.950" (24.13mm) |
|
FIT80-2FIXED IND 107.5UH 4.8A 67.9 MOHM Triad Magnetics |
20 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 107.5 µH | - | 4.8 A | - | Unshielded | 67.9mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.975" L x 0.625" W (24.76mm x 15.88mm) | 1.100" (27.94mm) |
|
|
FIT50-6FIXED IND 12.5UH 6.8A 14 MOHM TH Triad Magnetics |
0 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 12.5 µH | - | 6.8 A | - | Unshielded | 14mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|
|
FIT50-5FIXED IND 16.76UH 5.7A 20MOHM TH Triad Magnetics |
24 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 16.76 µH | - | 5.7 A | - | Unshielded | 20mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|

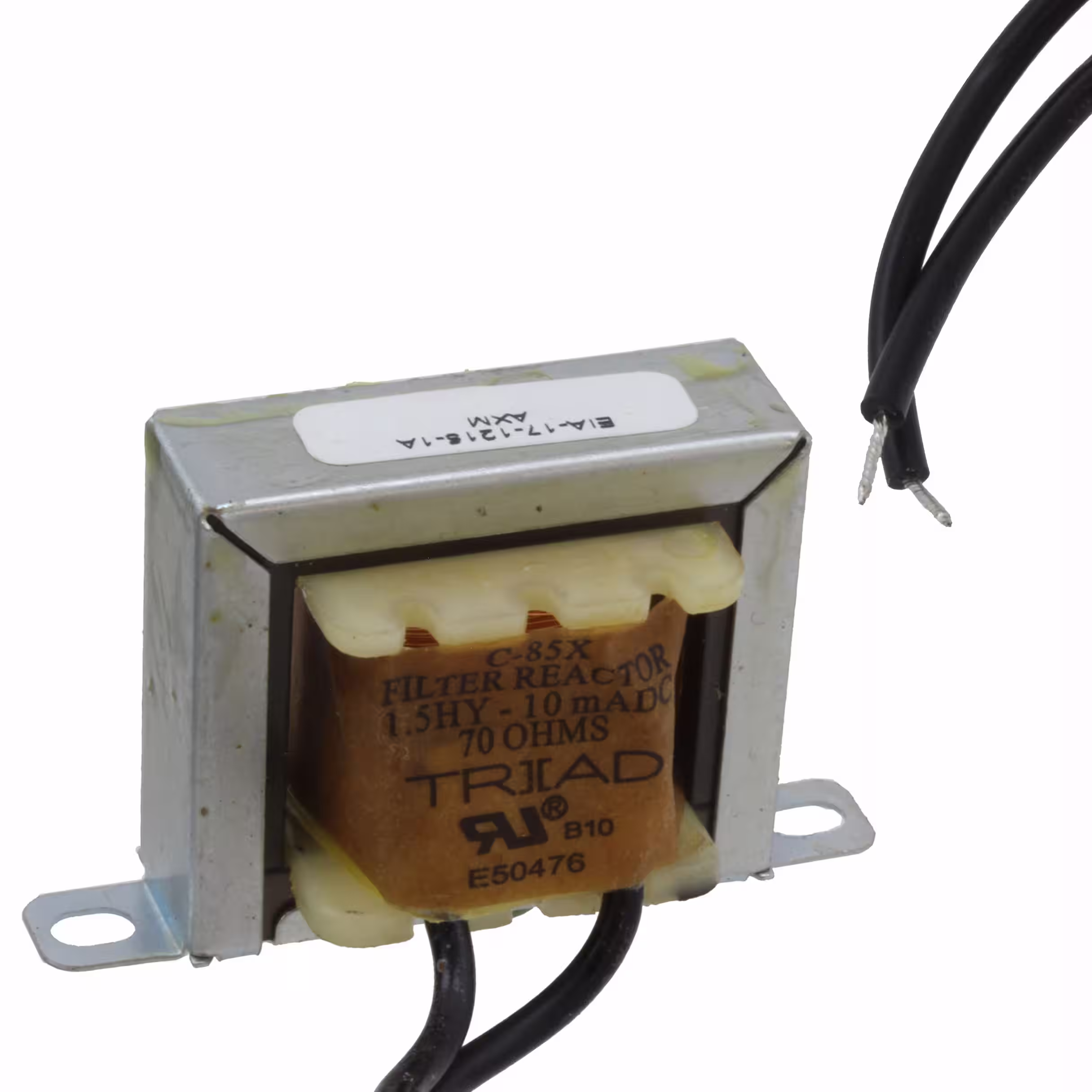

C-85XFIXED IND 1.5H 10MA 70 OHM CHASS Triad Magnetics |
0 |
|
规格书 |
C | Nonstandard | Bulk | Active | Wirewound | - | 1.5 H | -20%, +50% | 10 mA | - | Unshielded | 70Ohm | - | - | - | -40°C ~ 85°C | 120 Hz | - | Chassis Mount | - | 2.125" L x 1.125" W (53.97mm x 28.58mm) | 1.250" (31.75mm) |
