固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

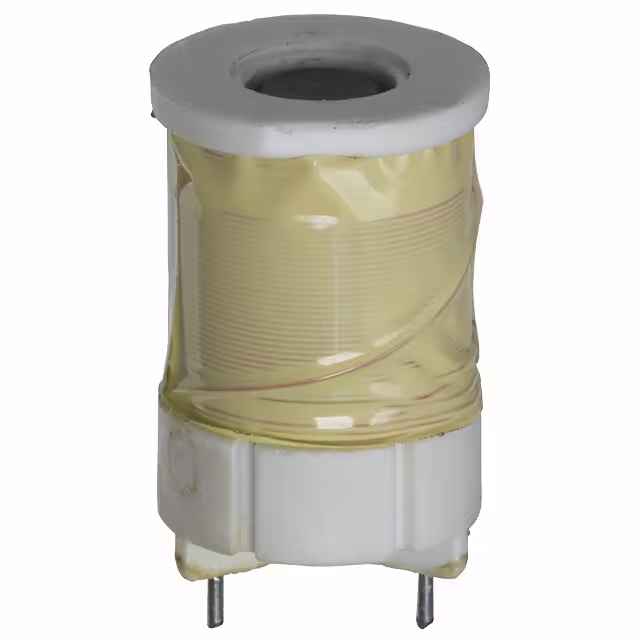

RC-1FIXED IND 5.6MH 250MA 6.1 OHM TH Triad Magnetics |
1,111 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 5.6 mH | ±10% | 250 mA | - | Unshielded | 6.1Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
RC-7FIXED IND 450UH 1A 420 MOHM TH Triad Magnetics |
590 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 450 µH | ±10% | 1 A | - | Unshielded | 420mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

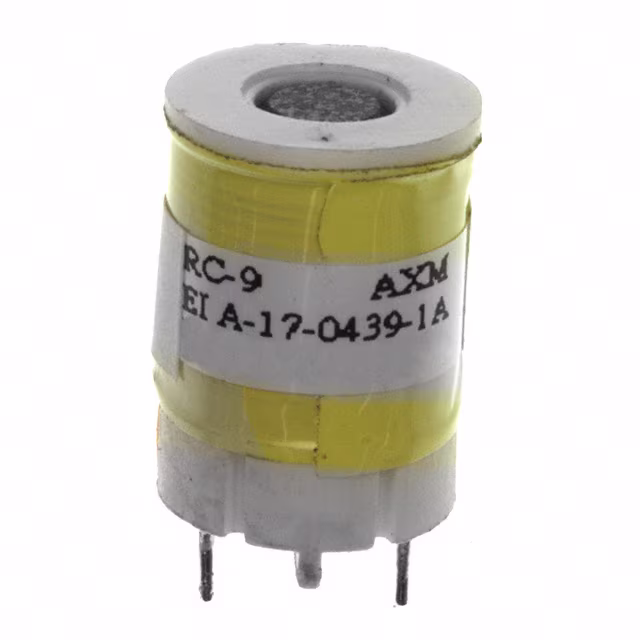

RC-9FIXED IND 200UH 1.6A 180 MOHM TH Triad Magnetics |
309 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 200 µH | ±10% | 1.6 A | - | Unshielded | 180mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

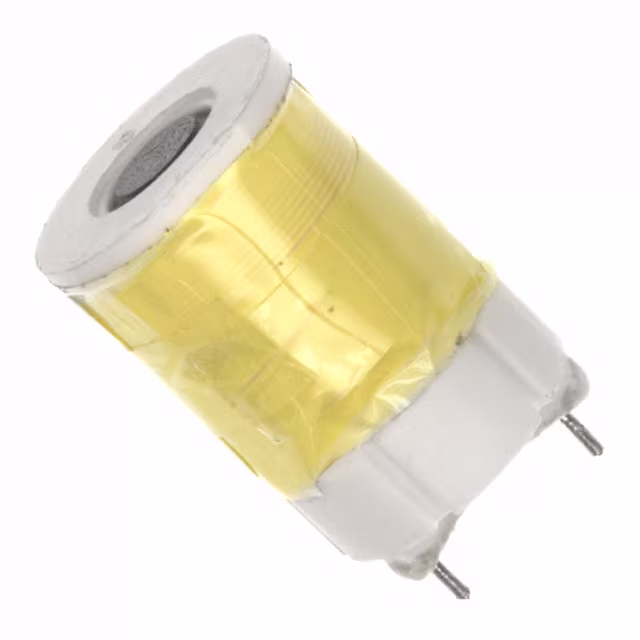

RC-3FIXED IND 2.5MH 400MA 2.45OHM TH Triad Magnetics |
272 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 2.5 mH | ±10% | 400 mA | - | Unshielded | 2.45Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|

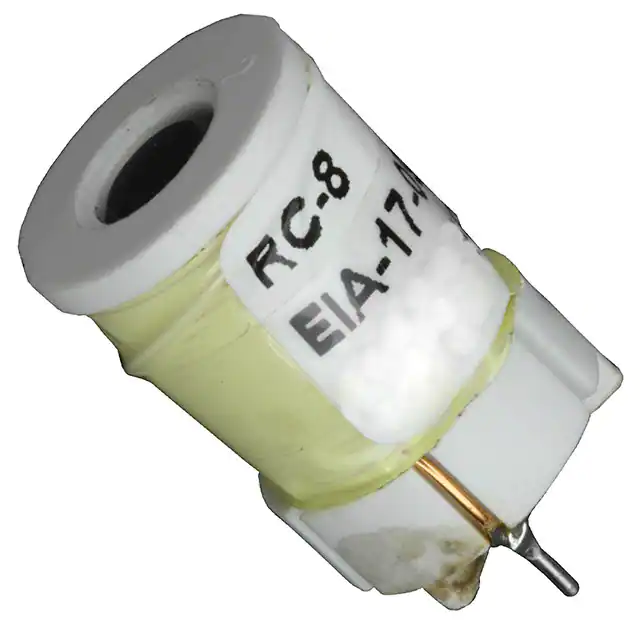

RC-8FIXED IND 250UH 1.25A 210MOHM TH Triad Magnetics |
109 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 250 µH | ±10% | 1.25 A | - | Unshielded | 210mOhm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
FIT106-1FIXED IND 253UH 4A 139 MOHM TH Triad Magnetics |
185 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 253 µH | - | 4 A | - | Unshielded | 139mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
|
FIT106-3FIXED IND 154UH 5.7A 74 MOHM TH Triad Magnetics |
176 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 154 µH | - | 5.7 A | - | Unshielded | 74mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 1.300" L x 0.725" W (33.02mm x 18.42mm) | 1.400" (35.56mm) |
|
FIT50-7FIXED IND 8.86UH 8.1A 11 MOHM TH Triad Magnetics |
126 |
|
规格书 |
FIT | Radial, Vertical (Open) | Bulk | Active | Toroidal | Iron Powder | 8.86 µH | - | 8.1 A | - | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.700" L x 0.475" W (17.78mm x 12.07mm) | 0.750" (19.05mm) |
|

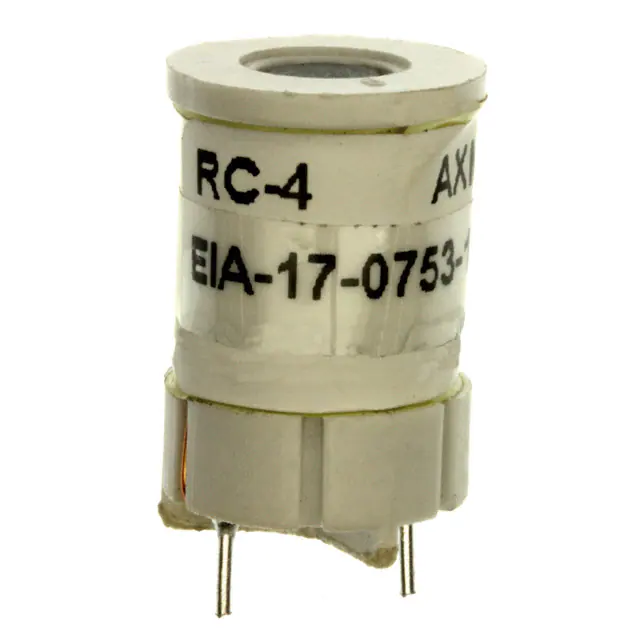

RC-4FIXED IND 1.5MH 500MA 1.53OHM TH Triad Magnetics |
419 |
|
规格书 |
RC | Radial, Vertical Cylinder | Bulk | Active | Drum Core, Wirewound | Ferrite | 1.5 mH | ±10% | 500 mA | - | Unshielded | 1.53Ohm | - | - | - | -40°C ~ 85°C | 10 kHz | - | Through Hole | - | 0.600" Dia (15.24mm) | 0.930" (23.62mm) |
|
AX97-10100FIXED IND 10UH 1A 220 MOHM SMD Triad Magnetics |
492 |
|
规格书 |
AX97 | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 1 A | - | Unshielded | 220mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | SMD | 0.287" L x 0.188" W (7.30mm x 4.78mm) | 0.127" (3.23mm) |
