固定电感器
| 图片 | 型号 | 库存 | 数量 | 规格书 | 系列 | 封装/外壳 | 包装 | 产品状态 | 类型 | 材料 - 芯 | 电感 | 容差 | 电流额定值（安培） | 饱和电流 (Isat) | 屏蔽 | 直流电阻 (DCR) | 品质因数 (Q) @ 频率 | 频率 - 自谐振 | 额定值 | 工作温度 | 电感频率 - 测试 | 特性 | 安装类型 | 供应商设备封装 | 尺寸 / 尺寸 | 高度 - 安装后（最大值） |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPM4020T-1R0M-LRFIXED IND 1UH 5.6A 28.1 MOHM SMD TDK Corporation |
596 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 1 µH | ±20% | 5.6 A | 9A | Shielded | 28.1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.173" L x 0.161" W (4.40mm x 4.10mm) | 0.079" (2.00mm) |
|
SPM7054VT-101M-DFIXED IND 100UH 1.8A 0.348OHM SM TDK Corporation |
11,702 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 100 µH | ±20% | 1.8 A | 2.4A | Shielded | 348mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|
|
SPM5015T-6R8M-LRFIXED IND 6.8UH 2.8A 134.6 MOHM TDK Corporation |
3,914 |
|
规格书 |
SPM-LR | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 6.8 µH | ±20% | 2.8 A | 3.4A | Shielded | 134.6mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.213" L x 0.201" W (5.40mm x 5.10mm) | 0.059" (1.50mm) |
|

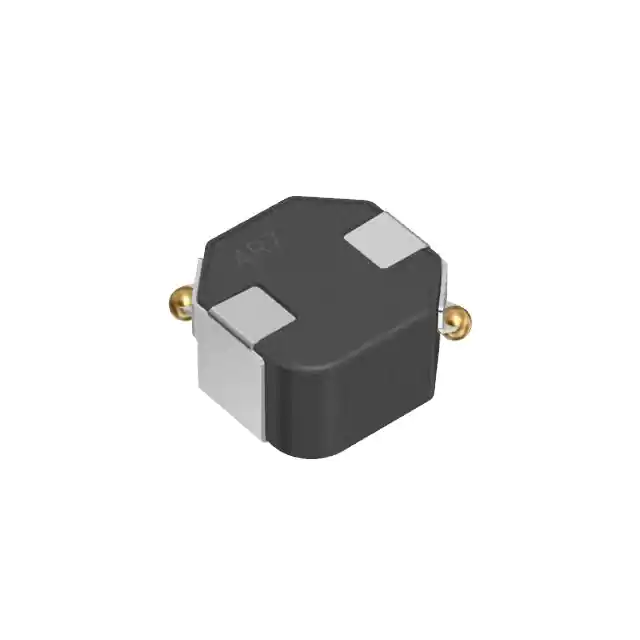

SPM5030VT-4R7M-DFIXED IND 4.7UH 3.8A 0.0591OHM TDK Corporation |
1,542 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 3.8 A | 5.9A | Shielded | 59.1mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 5030 | 0.209" L x 0.201" W (5.30mm x 5.10mm) | 0.118" (3.00mm) |
|

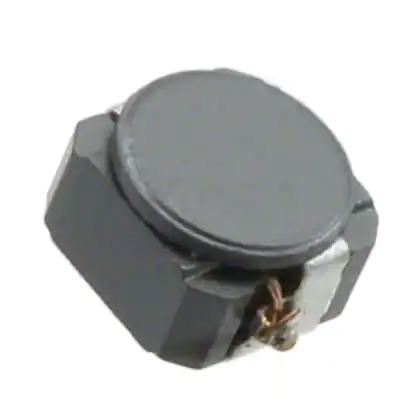

LTF3020T-3R3N-DFIXED IND 3.3UH 1.33A 110MOHM SM TDK Corporation |
2,138 |
|
规格书 |
LTF3020-D | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 3.3 µH | ±30% | 1.33 A | 990mA | Shielded | 110mOhm Max | - | - | AEC-Q200 | -40°C ~ 150°C | 1 MHz | - | Surface Mount | - | 0.177" L x 0.118" W (4.50mm x 3.00mm) | 0.079" (2.00mm) |
|

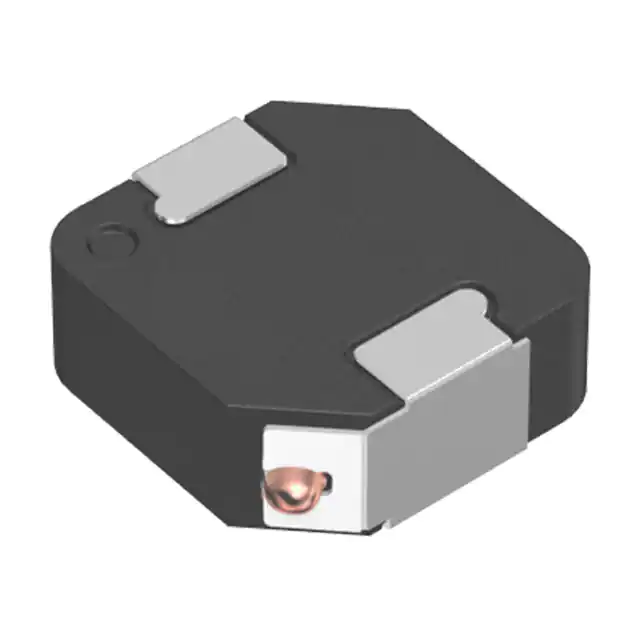

SPM10040T-4R7MFIXED IND 4.7UH 7.9A 18 MOHM SMD TDK Corporation |
423 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 4.7 µH | ±20% | 7.9 A | 8A | Shielded | 18mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
SLF10145T-680M1R2-HFIXED IND 68UH 1.3A 168 MOHM SMD TDK Corporation |
1,850 |
|
规格书 |
SLF-H | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 68 µH | ±20% | 1.3 A | 1.2A | Shielded | 168mOhm Max | - | - | AEC-Q200 | -40°C ~ 125°C | 1 kHz | - | Surface Mount | - | 0.398" L x 0.398" W (10.10mm x 10.10mm) | 0.189" (4.80mm) |
|
|
SPM10040T-100MFIXED IND 10UH 5.8A 29.4MOHM SMD TDK Corporation |
938 |
|
规格书 |
SPM | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal | 10 µH | ±20% | 5.8 A | 6A | Shielded | 29.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - | 0.421" L x 0.394" W (10.70mm x 10.00mm) | 0.157" (4.00mm) |
|
|
SPM7054VT-4R7M-DFIXED IND 4.7UH 7.8A 0.0166OHM TDK Corporation |
2,705 |
|
规格书 |
SPM-VT-D | Nonstandard | Tape & Reel (TR) | Active | Drum Core, Wirewound | Metal Composite | 4.7 µH | ±20% | 7.8 A | 11.2A | Shielded | 16.6mOhm | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | 7054 | 0.295" L x 0.276" W (7.50mm x 7.00mm) | 0.213" (5.40mm) |
|

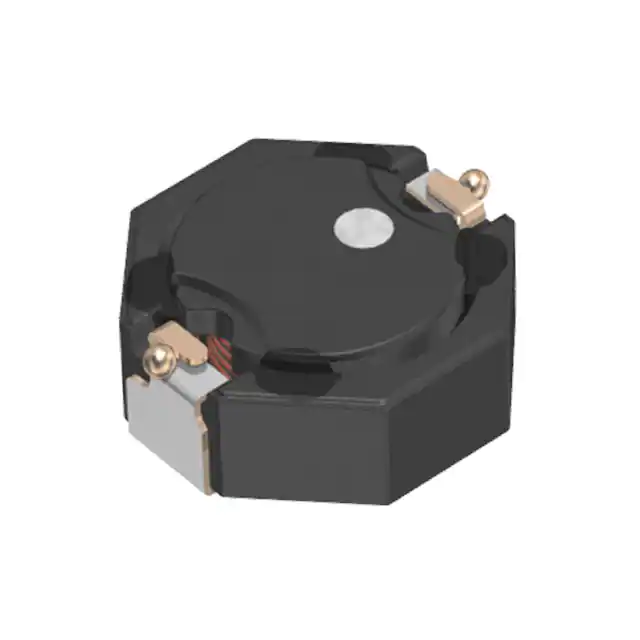

LTF5022T-4R7N2R0-DFIXED IND 4.7UH 2.18A 74MOHM SMD TDK Corporation |
279 |
|
规格书 |
LTF5022T | Nonstandard | Tape & Reel (TR) | Last Time Buy | Drum Core, Wirewound | Ferrite | 4.7 µH | ±30% | 2.18 A | 2A | Shielded | 74mOhm Max | - | - | AEC-Q200 | -40°C ~ 105°C | 100 kHz | - | Surface Mount | - | 0.256" L x 0.197" W (6.50mm x 5.00mm) | 0.087" (2.20mm) |
